Basic Info.

Model NO. SJ-A Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Wrapping Film Specification CE Trademark Changyin Origin China HS Code 84773090 Production Capacity 1000sets/Year

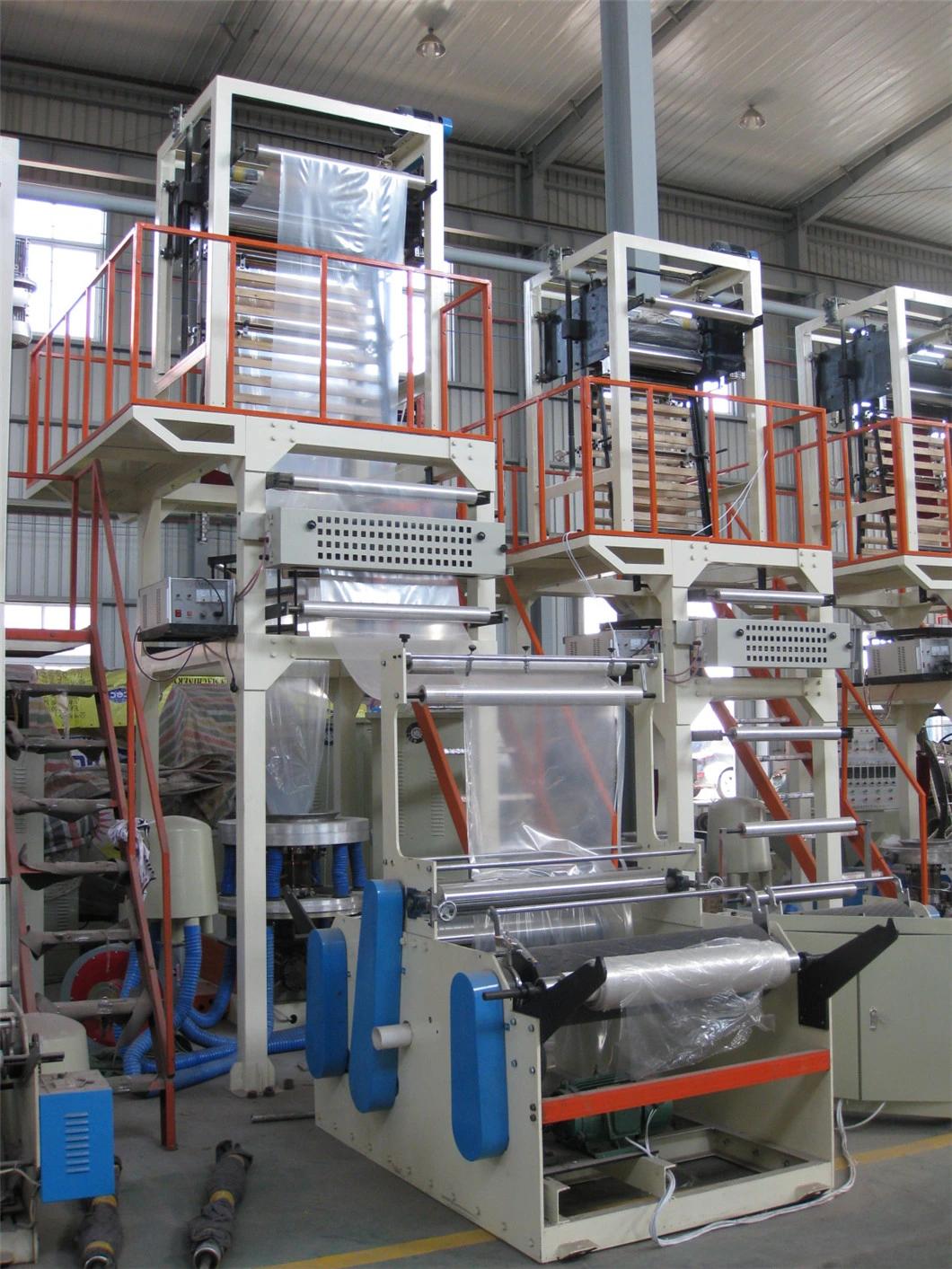

Product Description

Features: It takes type rolling and reaches country's standard.

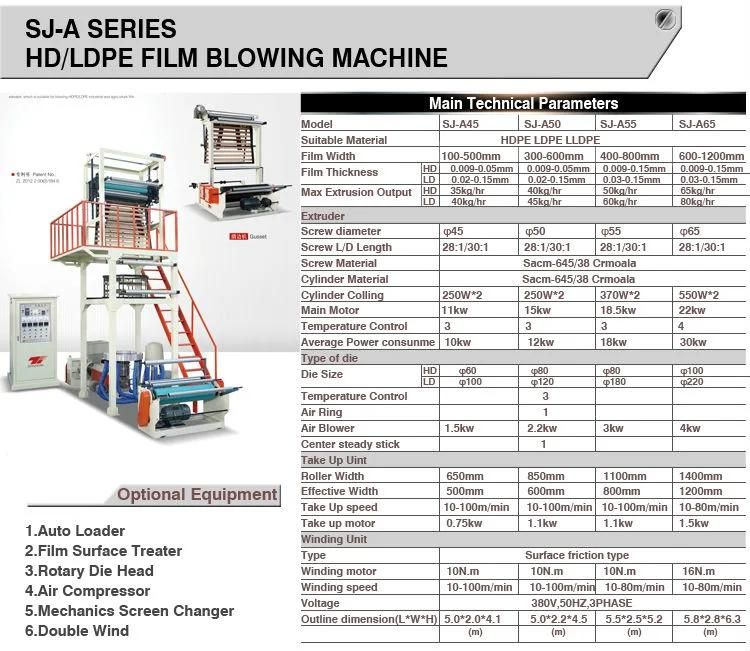

Technical data:
1. Model: W55
Diameter of screw: 55
L/D: 28: 1
Reduced diameter of film: 600-1000mm
Single-face thickness of film: 0.005-0.05mm
Max. Output: 60kg/h
Power of main motor: 22kw
Power of traction motor: 1.1kw
Heating power: 18kw
Outline dimension: 5500x2200x5000mm
Weight: 2.6T

2. Model: W65
Diameter of screw: 65
L/D: 28: 1
Reduced diameter of film: 800-1500mm
Single-face thickness of film: 0.005-0.05mm
Max. Output: 80kg/h
Power of main motor: 30kw
Power of traction motor: 1.1kw
Heating power: 25kw
Outline dimension: 5800x2600x5500mm
Weight: 3.5T

3. Model: W80
Diameter of screw: 80
L/D: 28: 1
Reduced diameter of film: 1000-2000mm
Single-face thickness of film: 0.005-0.05mm
Max. Output: 150kg/h
Power of main motor: 50kw
Power of traction motor: 1.5kw
Heating power: 35kw
Outline dimension: 6500x2800x6500mm
Weight: 4T

4. Model: W100
Diameter of screw: 100
L/D: 28: 1
Reduced diameter of film: 1200-2100mm
Single-face thickness of film: 0.005-0.05mm
Max. Output: 200kg/h
Power of main motor: 55kw
Power of traction motor: 1.5kw
Heating power: 40kw
Outline dimension: 8000x3500x8200mm
Weight: 4.2T
