• Size：to Be Customized
• Application：Toast,Loaf Bread Processing Machine
• Style：Automatic and Semi-Automatic
• Supplier：Factory Manufacturer
• Installation：Overseas Available
• Capacity：3600PCS Toast Per Hour
• Customized：Customized
• Voltage：380V
• Model NO.：PL-190906001
• Transport Package：Wooden Case
• Specification：CE
• Trademark：AOCNO
• Origin：Hebei, China
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. PL-190906001 Voltage 380V Customized Customized Capacity 3600PCS Toast Per Hour Installation Overseas Available Supplier Factory Manufacturer Style Automatic and Semi-Automatic Application Toast/Loaf Bread Processing Machine Size to Be Customized Transport Package Wooden Case Specification CE Trademark AOCNO Origin Hebei, China Production Capacity 20 Sets/Year

Product Description

              Automatic High Capacity bakery Loaf Bread food Making Machine

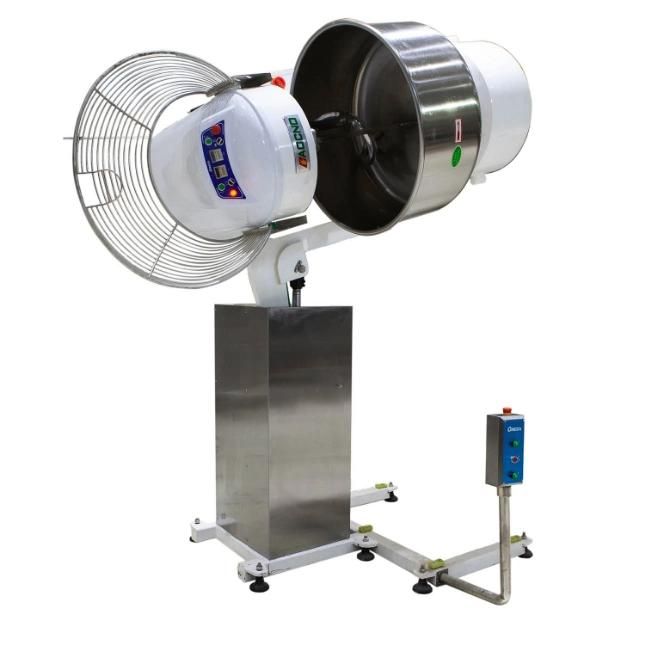

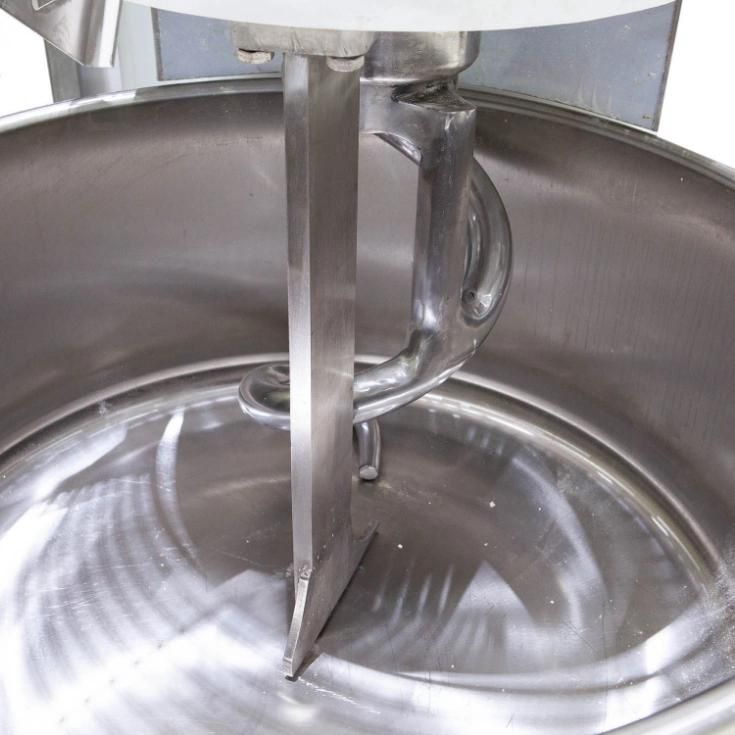

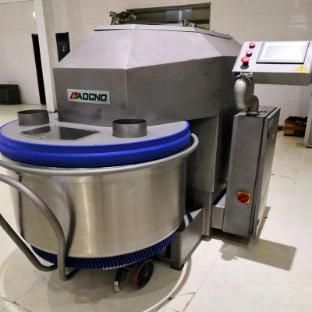

1.spiral dough mixer

There is 3 different kind of dough mixer,double speed:stainless steel material,high speed & low speed,equipped with bowl safety transparent guard,for all kinds of dough.



Specification:

Model	Bowl DimΦ*H(mm)	Power(kw)	Dough (kg)	Spiral speed(r/min)	Bowl speed(r/min)
SMR130B	Φ800*447	13.5kw	130kg	115/230	17.8
SMR200B	Φ900*547	22kw	200kg	102.5/205	11.7
SMR300B	Φ1098*547	27kw	300kg	100/200	12

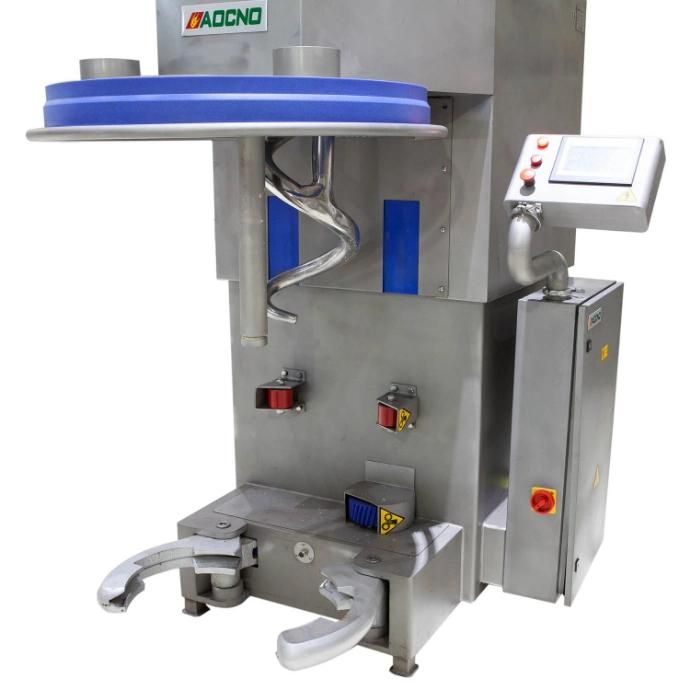

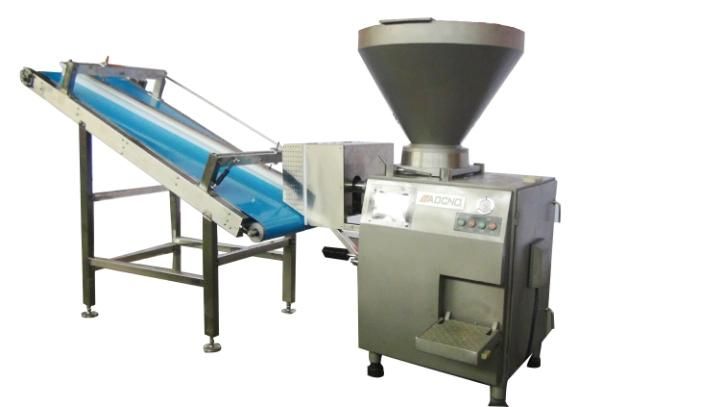

2.Dough divider


Specification:

Dough weight range(g)	260g-1500g
Output(pcs/h)	85-145/min
Output(kg/h)	3500kg
Voltage(V)	400V
Power(kw)	7.5

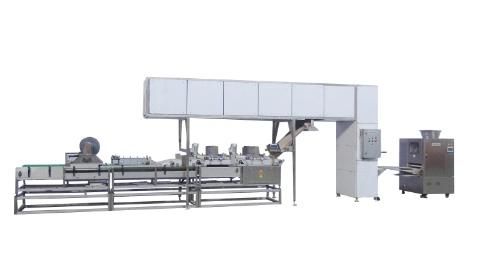

3.Intermediate proofer

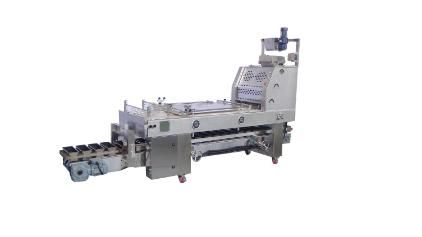

4.Moulder machine


Specification:

Production	3600 / hour
Dough weight	50-2000g
Working width	650mm
Plastic panel length	2*1100mm

5.Fermenting Room Specification:


Humidity Control	60%-90%
Proofing time adjustable(min)	30min-120min
Belt width range(mm)	230mm-1100mm
Heating temperature	30ºC-45ºC
Humidification way	Ultrasonic Humidifier

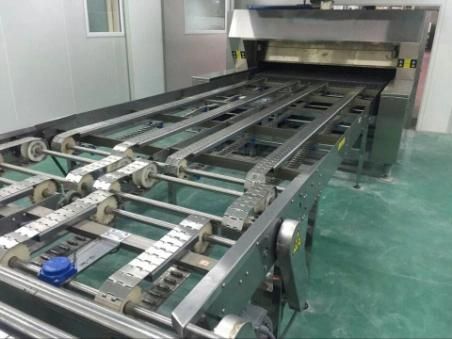

6.tunnel oven:


Specifications:

Spec	Tray size (mm)	Inner width (mm)	Inner height (mm)	External width (mm)
2 trays	600*400	1450	210	2375
3 trays	600*400	2050	210	2975
4 trays	600*400	2650	210	3575
5 trays	600*400	3250	210	4175
6 trays	600*400	3850	210	4775

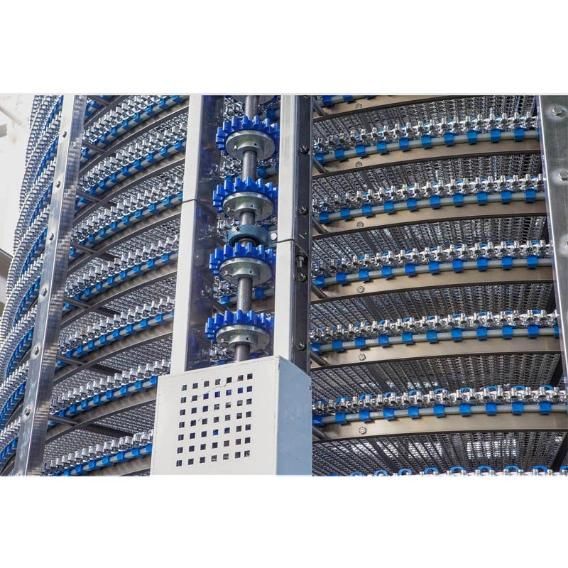

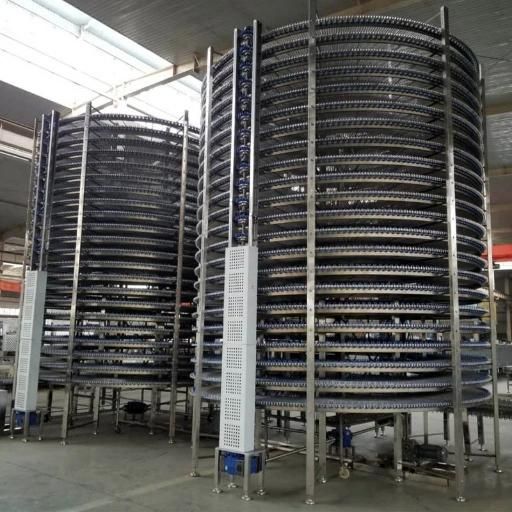

7.Spiral cooling tower:

Matereial	The mesh belt is made of 304 stainless steel and the skeleton is made of 304 and 201 stainless steel square tubes
Belt width range	200 mm-1300 mm
Belt length range	Single tower length 50 meters - 1200 meters
Tower diameter range	1.5-12 Meters
Layer height	Spiral tower up to 6 meters
Tower Layer range	1-40 layers
Entrance&exit direction	Low inlet high exit  high inlet low exit   two in and two out, three in and three out, ellipse

About our company:

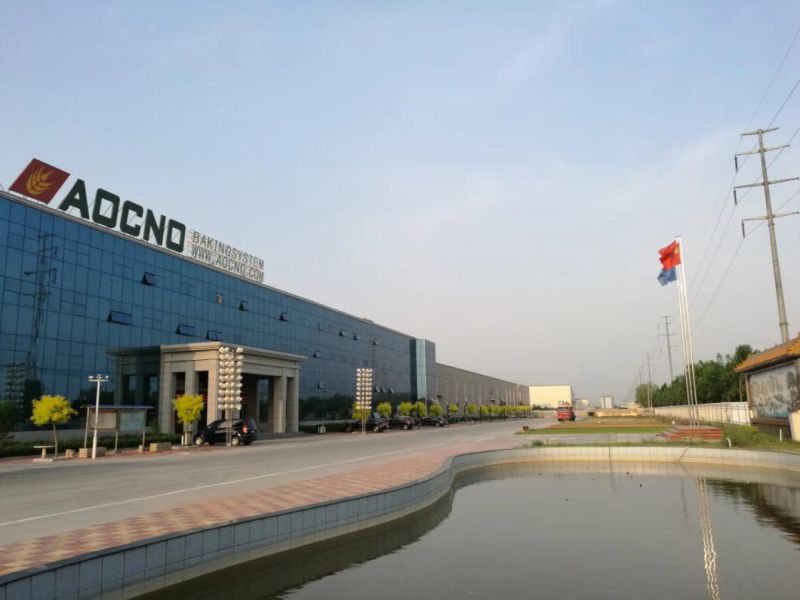

Hebei AONCO Baking Machinery Co.,Ltd founded in May 1984,covers 95 acres building area.We have modern plant,area up to 45,000 square meters and also an integrity building,5,000 square meters,which active for R&D center,products exhibition and marketing center and other facility.
Our main products is bread production line,like hamburger bun/hot dog production line,toast production line and Multifunctional bread line.The tunnel oven and spiral cooling tower conveyor is our hot sells.We can customized according your capacity and layout.



In 2018,we attend the IBA in Munich,Germany.
In 2019,we attend the IBIE in Las Vegas,USA
In 2019,we attend the GulfHost in Dubai.
We always moving forward and knows what you need.



AOCNO Baking Machinery are highly cost -effective,our products are not only popular in domestic markets,but also has gained good reputation from Latin America, Southeast Asia, Middle East Asia, Europe other in cover 50 countries.

If you are interested in our products or if you have special requirements, welcome to Contact Us With Any Enquiries!

Pls Feel free you may also come to visit and inspect our factory. So welcome here.

Thank you!
