Item
Description
Data
1
SJ120/35 Single screw extruder with stainless steel hopper
1 set
2
Screen exchanging unit for PC
1 set
3
Melting gear pump for PC
1 set
4
SJ45/30 Single screw extruder for UV layer
1 set
5
Melting gear pump for uv
1 set
6
T-type Die head (2100mm*4-6mm)
1 set
7
Vacuum calibrating board
1 set
8
cooling table
1 set
9
The first haul off machine with 12 rollers
1 set
10
edge cutting device
1 set
11
5000mm oven
1 set
12
Corona treating unit
1 set
13
up and down sides, double position film laminating device
1 set
14
The second haul off machine
1 set
15
Tranverse cutting machine (length-settled)
1 set
16
material conveyor+6000mm discharge table
1 set
17
eletrical cabinet
1 set

other accessory machine parts

18500kg mixing and drying machine 1 set 19AC-25 water chiller 1 set 2015kw air compressor 1 set 21sheet crusher  1 set

PART 3 SHEET APPLICATIONS:
PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road

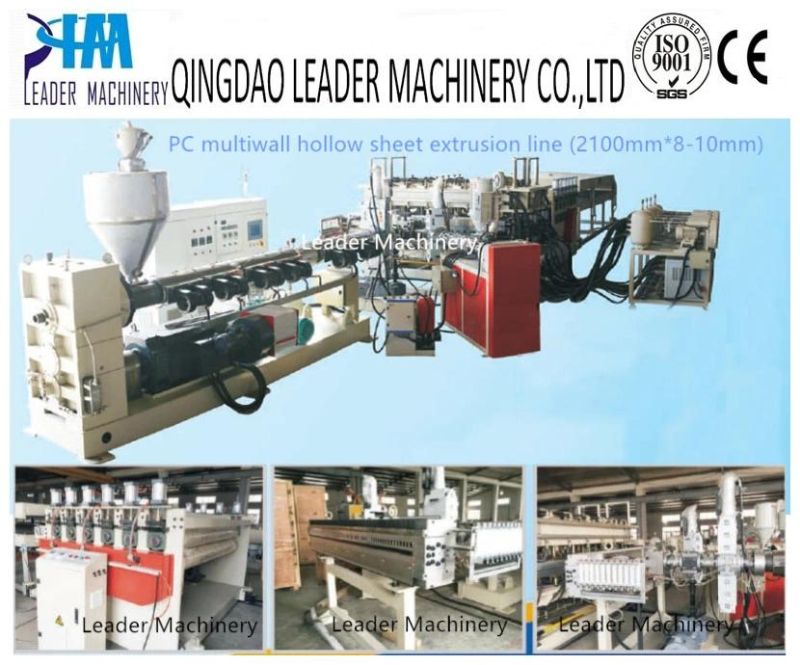

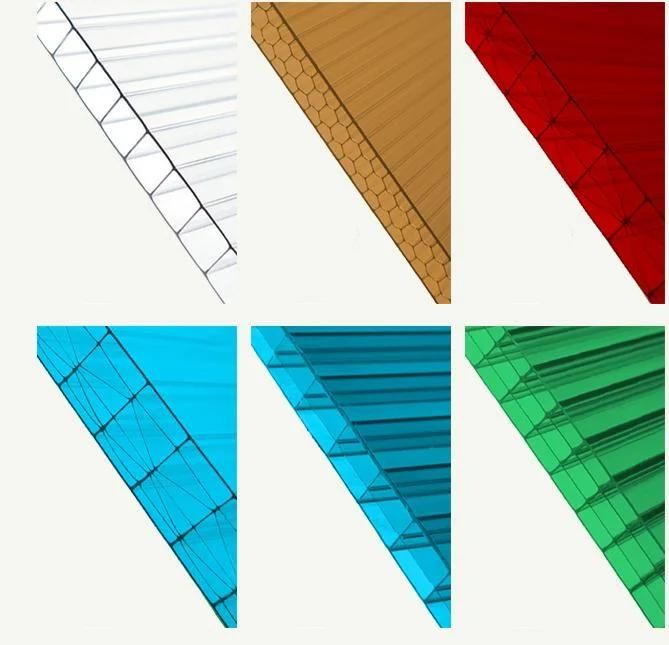

PART 4 MACHINE PICTURES AND SAMPLES:

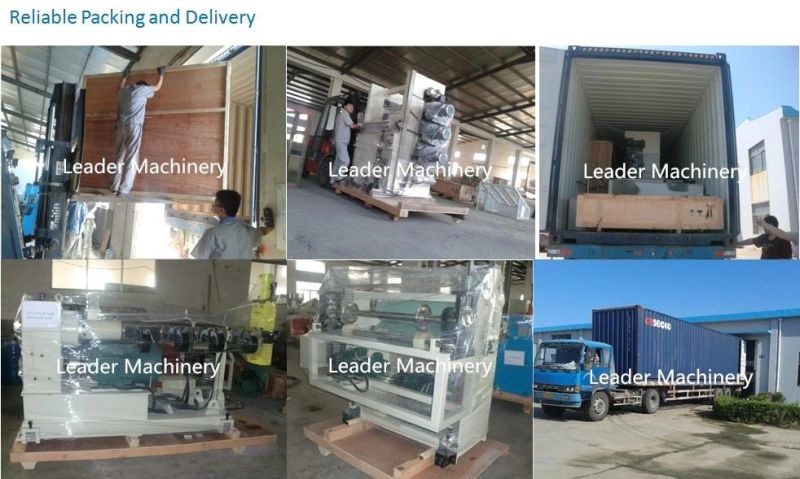

MACHINE PACKING AND DELIVERY :



COMPANY INFORMATION:


COMPANY CERTIFICATIONS:



COMPANY TRADE SHOWS:





OUR OTHER KINDS OF PLASTIC SHEET EXTRUSUION LINE RECOMMANDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.15-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PP chemical foam board machine
  processing material: PP virgin and recycle material, foam additives,
  Thickness: 1-6mm
   net board width: 600mm, 800mm, 1000mm, 1260mm etc (or as per customer's requirements)
   layer structure: Single layer or ABA layer
   capacity: 150-250kg/h
   applications:stationery, containers, handbags, heat insulation material, construction, food
    packing, automobile area, industry application, sports filed etc.
