• Model NO.：LS100F
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser

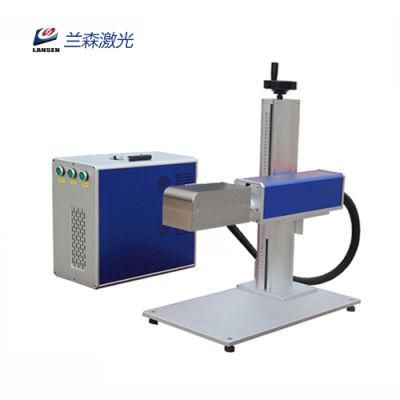

• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：100W
• Laser Type：Fiber
• Transport Package：International Standard Plywood Box
• Specification：930*770*410mm
• Trademark：Lansen Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

Imported Fiber laser

Wavelength

1064nm

Output Power

100W

Maximum flat marking area

200*200mm~300*300mm

Maximum curved marking area

200*200mm~300*300mm

Beam quality M2

<1.2

Pulse Repeatable Frequency

10kHz~200kHz

Cooling Method

Air cooling

Marking way

XYZ Triaxial dynamic focusing

Focusing range

≤±30mm

highest machining speed

350 character/s

Repeat marking accuracy

8urad

Operating Ambient Temperature

Temperature:10ºC~35ºC Humidity:5%~75%

Power Demand

Single phase AC110V/220V 10A

Machine standard parts:
1,Stand with Raycus brand laser source, JPT, MAX,IPG, Mopa optional
2, Taiwan control system, with MM3D software
3, Advanced MM3D software:There are 6 common models built in the software, including curve surface, bevel, etc. Users can also import their own STL file to mark.
4, Original Win10 computer system and Philips brand large display
5, With special 3D scan head, scan head with auto focus function
6, worktable: flat 300X300mm worktable
7,Inner and outer red dot pointer
8, 500mm height motorized up and down scale volume
9, Emergence off, key switch and 3 main buttons for laser, gavlo, power.
Optional parts:

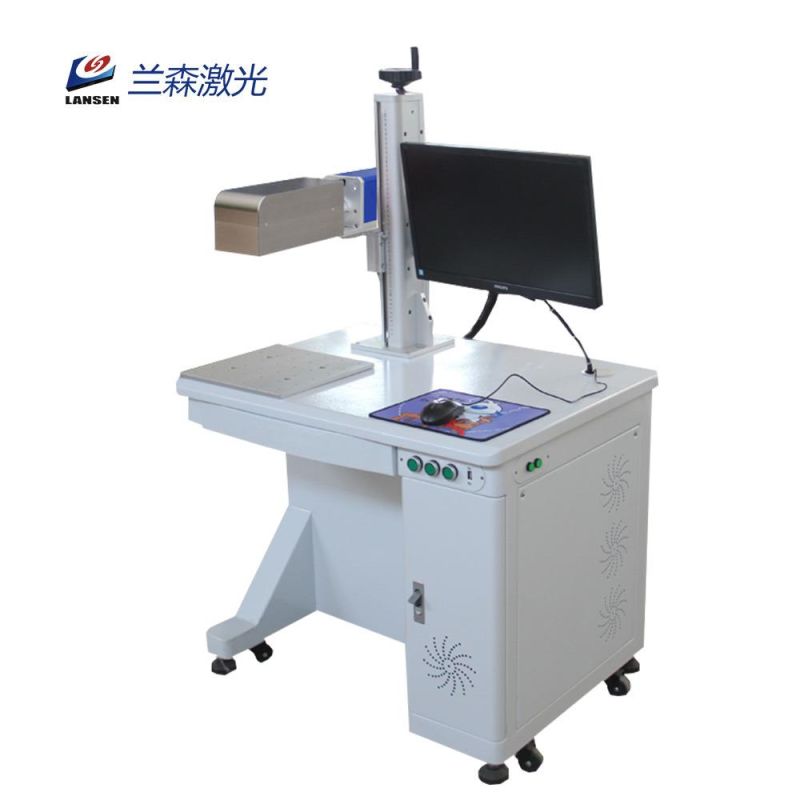

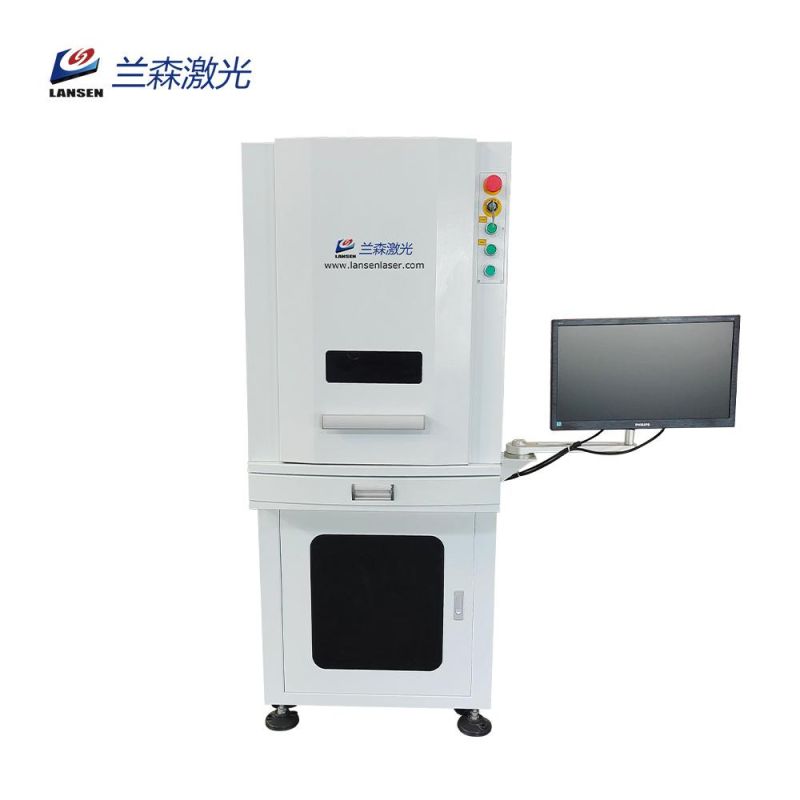

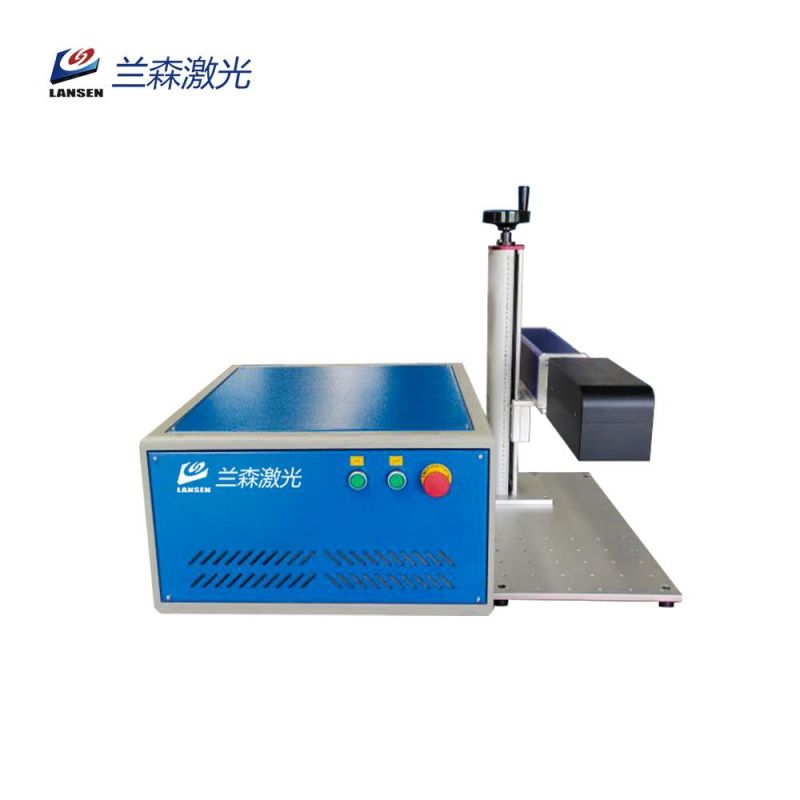

1, Control cabinet: standard with sealed model, desktop model and mini model optional
2, Deep marking function, suggested 50W or more power to do deep marking. The max marking depth can be 130mm, support emboss, intaglio marking and STL file marking.
3, XYZ axis can be extended.
4, Field lens, standard 200X200mm marking area, optional 100X100mm, 300X300mm, 400X400mm

Dynamic Fiber Laser Marking machine Applications:
1. For a variety of shapes carved, the three-axis control can be achieved freedom control of focus, undifferentiated marking in variety of steps and uneven surfaces.
2. A greater range marking. Under the premise of standard marking range, z-axis can achieve large variable focal length marking range.
3. High precision marking. The three-axis scanning system can arbitrarily adjust the focus of the traditional fixed-focus laser marking machine, eliminate the range deformation and spot deviations from the characteristics of traditional F lens.
4. More suitable for deep engraving. The dynamic marking is able to automatically adjust the focus in the process of engraving, deeper marking depth through marking on the machined surface with continuously highest energy density.

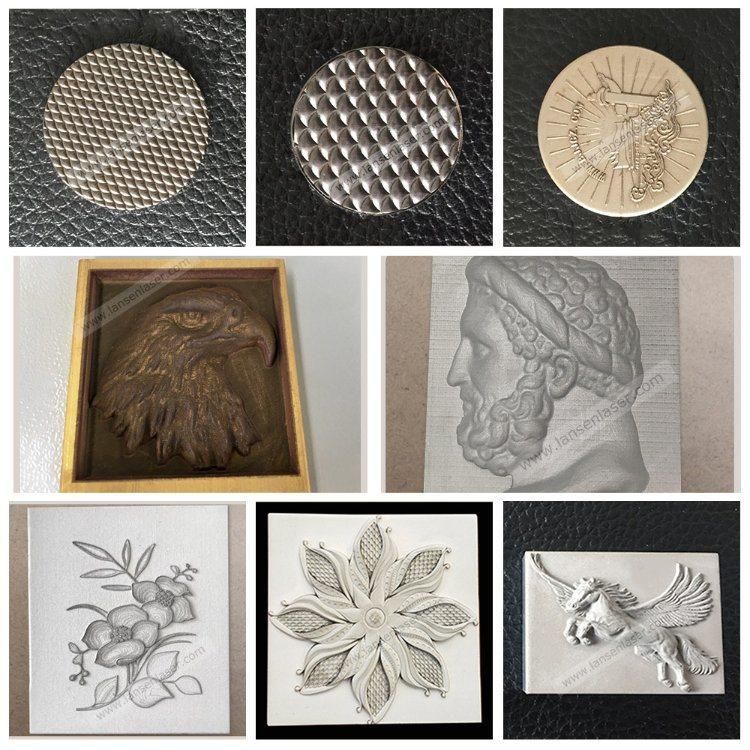

Samples:

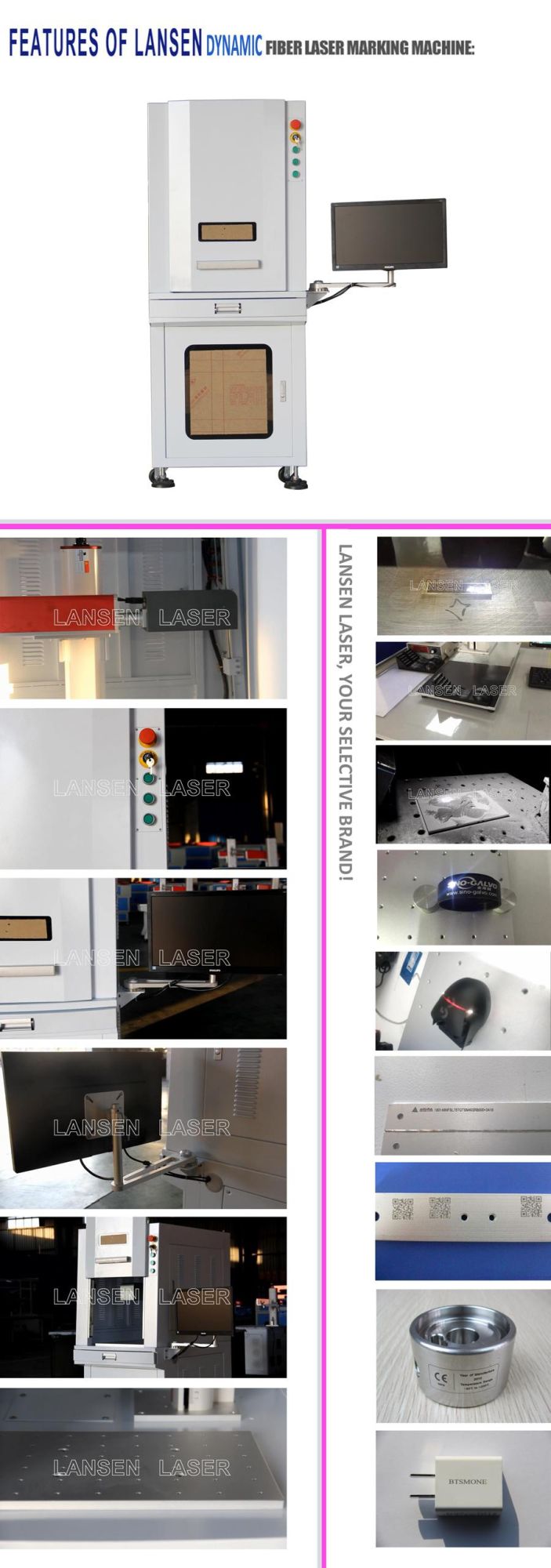

Dynamic Fiber Laser Marking machine Features:
1. 3D Dynamic Fiber Laser Marking machine with advanced small focal spot design, the min focal spot is 30um.
2. Dynamic Fiber Laser Marking machine is with accurate optical path design and fabrication, low energy decrement for large scan field and curved surface processing.
3. Machine scan field up to 400x400mm, meet large scan field engraving requirements. Can be marked on multi-level large format,on the three-dimensional surface, on the plane, according to the need to configure various types of lasers.
4. Dynamic Fiber Laser Marking machine is with high speed system, meets above 4000mm/s marking speed.
5. 3D Fiber Laser marking machine maximum marking height up to 280mm, far exceed the industry height standard of 80mm.
6. The focal axis position is optimized for deep engraving, suitable for embossment, 3D applications. Deep Marking with high accuracy.
7. Marking software with 3D operation interface, operate 3D upper and lower, right and left, front and back view, set base level, front and back switch, 3D coordinate axis simulating marking content, model frame function to help the operator place the work piece and edit marking graphics.
8. Precisely control the focal length position of marking machine, automatically adjust Z-axis for 3D marking process, keep the spot size to minimum, and ensure the uniform graphic effect after marking on the object.
9.  Built-in concave and convex circular tube, concave and convex sphere, slope, cone, polygon, etc. basic models, the operator can easily and rapidly set the marking.
10.  3D models can be imported, 2D graphics can be directly cladded or projected onto built-in curve surface.
11. The whole system adopted the optimization designing of electromagnetic compatibility, with high. signal-to-noise ratio and strong anti-interference ability.
12. 3D laser marking machine Software control system can automatically calculate the arc radian, automatically adjust the focal length.
13. 3D laser marking machine with friendly operation interface, it is suit for many file formats, such as dxf, plt, cnc, step, iges, etc.

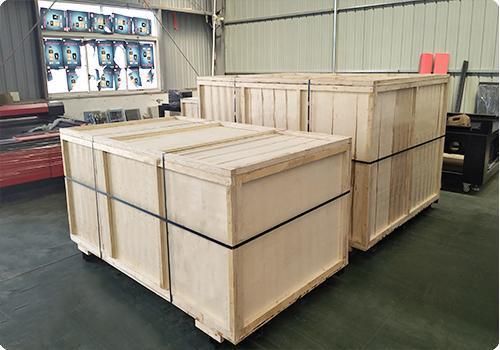

Packagiing&Shipping:Packaging Details:    Package provide fumigation free plyeoof box.
All machine use plastic cover to avoid damp during the transport.
Shipment way we adopt Sea freight, air freight or courier, the most convenient for you.
More details please contact us.
Delivery Detail:Shipped in 7 days after payment

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.
Supply Ability: 100 sets / Month
Port: Qingdao
Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail: International standard plywood export box
Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

Our Survice:
1. 24 Months for Machine
2. 6 Months for equipment outside, such as water pump, fan, air pump,etc.
3. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material. Lifely and fast technical guide and solution within 24hours by email and web camera.

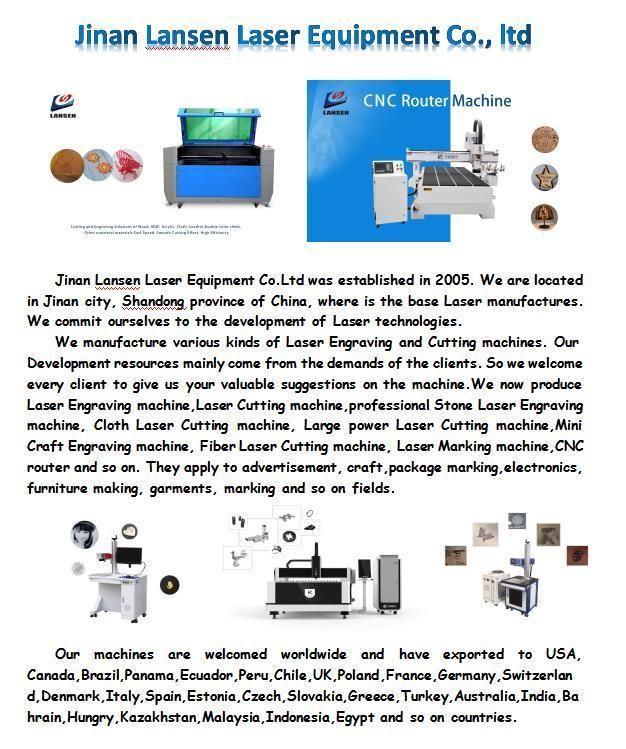

About us:
