• Model NO.：YTQQ-500
• Guarantee：One Year
• Table Tilting Degree：0-85 Degree
• Color：Yellow
• Certificate：SGS,Ce
• Max. Cutting Dimension(Lxwxh)：3000*1800*130mm
• Max. Diameter of Blade：350-500mm
• Transport Package：Crates, Water-Proof Material, Steel Rope
• Specification：5800x2700x2500mm
• Trademark：WANLONG
• Origin：Quanzhou
• Production Capacity：50sets Per Month

Basic Info.

Model NO. YTQQ-500 Guarantee One Year Table Tilting Degree 0-85 Degree Color Yellow Certificate SGS,Ce Max. Cutting Dimension(Lxwxh) 3000*1800*130mm Max. Diameter of Blade 350-500mm Transport Package Crates, Water-Proof Material, Steel Rope Specification 5800x2700x2500mm Trademark WANLONG Origin Quanzhou Production Capacity 50sets Per Month

Product Description

YTQQ-500 Mono-block Bridge Cutting Machine

Product Description

1. The most important feature of an integrated structure, do not need to do the cement foundation, and transported to the plant can be used.

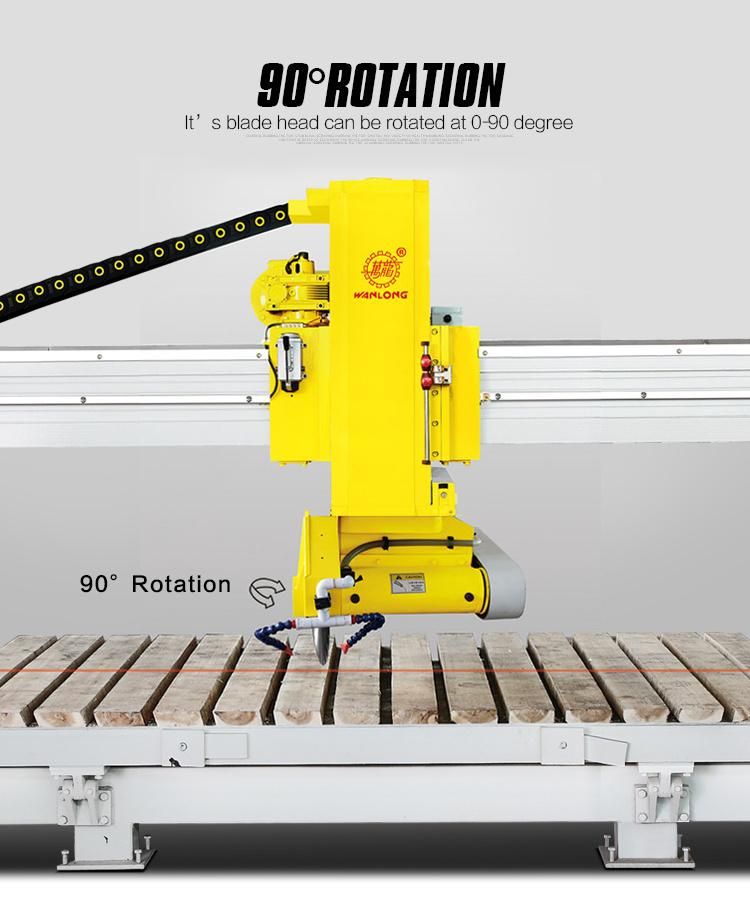

2. The blade can be rotated 90 degrees, the table can be rotated 85 degrees, easy to change the cutting direction and handling sheet.
3. Edge beam rails using Taiwan imported linear guide rail, high precision, long life.

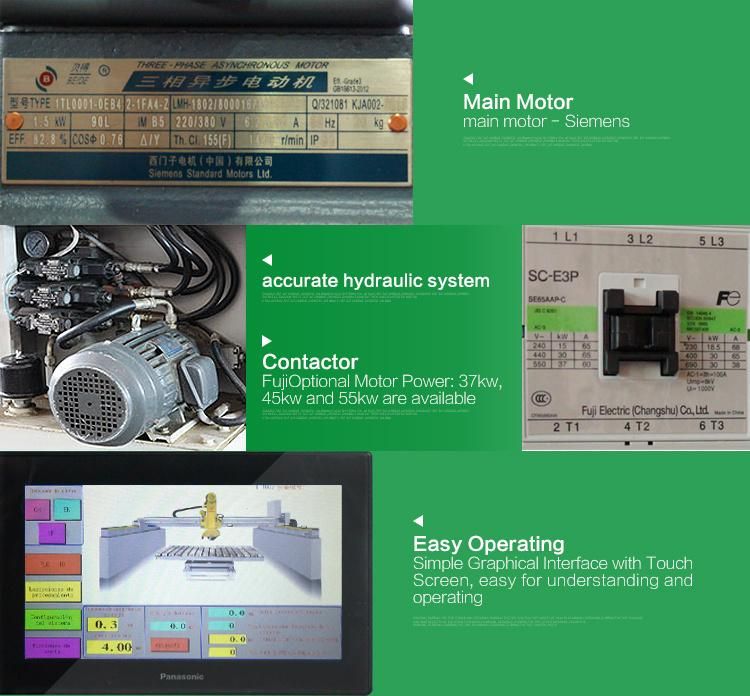

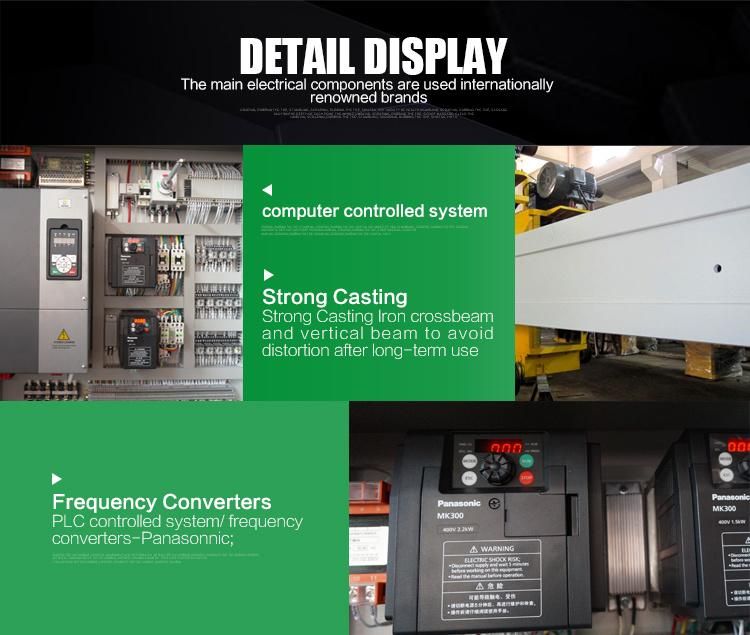

4 . Main electrical components are internationally renowned brands:
PLC (programmable logic controller), the inverter using Panasonic main motor adopts Siemens contactor using Fuji.
5. Host lift hydraulic transmission, high efficiency, good stability.
6. Host walking using high-precision gear tooth row, with the oil-immersed rail drive, small frictional resistance, high transmission accuracy.
7. Encoder slice to ensure the accuracy of the slice, to improve the accuracy and stability of the equipment.
8. Use infrared positioning device (positioning device) can be accurately knife to protect cutting precision.
9. Hydraulic workstation using the hydraulic system of the well-known brand in Taiwan, has a low noise, less failure, long life characteristics.
10. Touch-screen operation with traditional button combination, more simple operation, easy maintenance.
11. It's of CE Certificate.

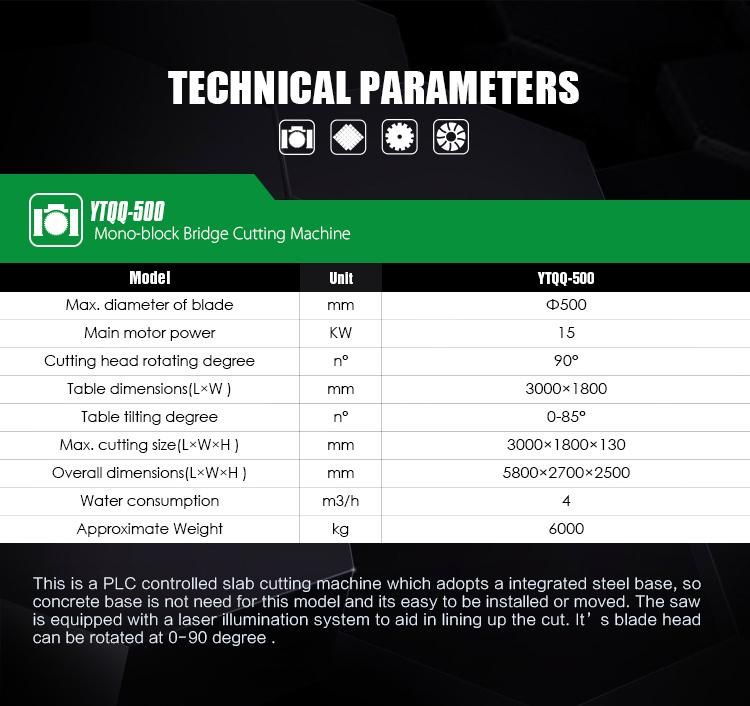

	YTQQ-500
Max. dia. of blade/mm	500
Worktable tilting degree	0-85
Cutting head rotary degree	90
Max. cutting dimension(LxWxH)/mm	3000X1800X130
Main motor power/kw	15
Power requirement	3 Phs 380V 50Hz(other is available)
Water consumption/ cbm/h	4
Overall dimension(LxWxH)/mm	5800X2700X2500
Total Weight/kg	6,000
