• Model NO.：YZY150-250
• Condition：New
• Customized：Customized
• Use：Make The Oilseed Soft,Adjust The Moisture
• Transport Package：in Plastic Film
• Specification：1500*1500*2750
• Trademark：Huipin
• Origin：China
• HS Code：8479200000
• Production Capacity：500set Per Month

Basic Info.

Model NO. YZY150-250 Condition New Customized Customized Use Make The Oilseed Soft,Adjust The Moisture Transport Package in Plastic Film Specification 1500*1500*2750 Trademark Huipin Origin China HS Code 8479200000 Production Capacity 500set Per Month

Product Description

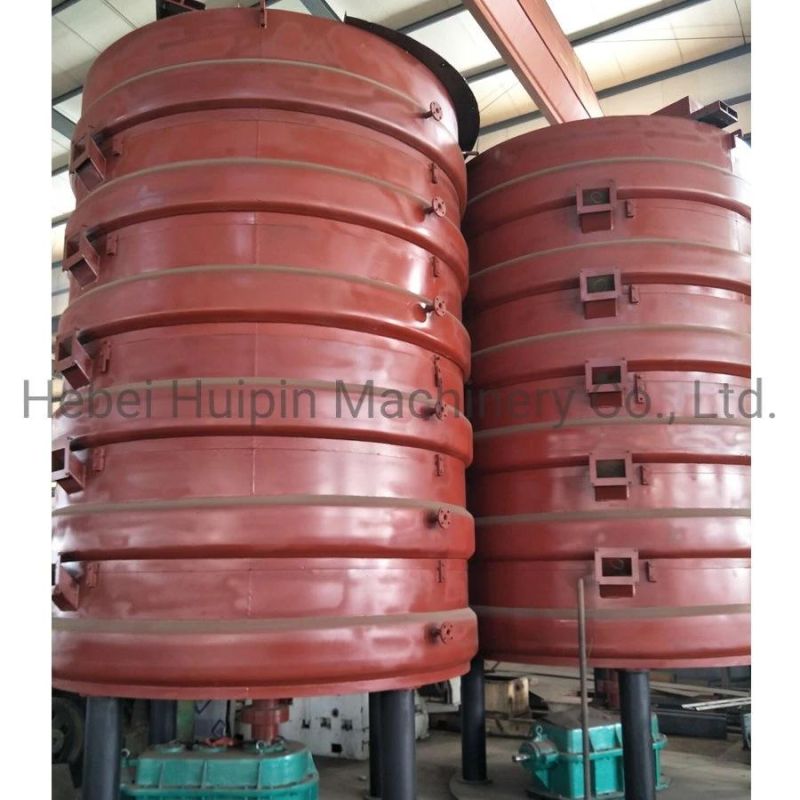

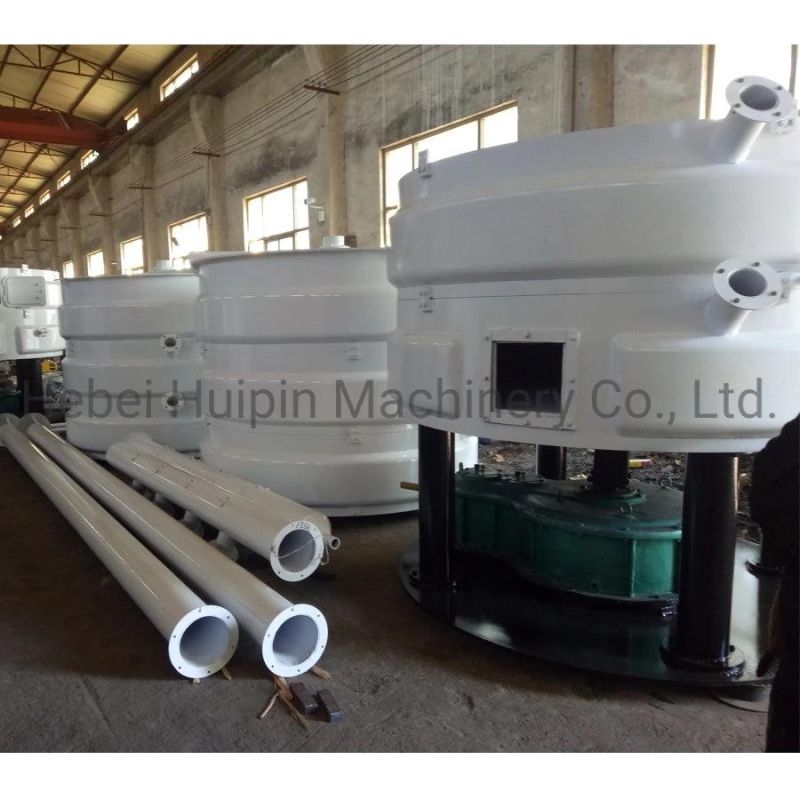

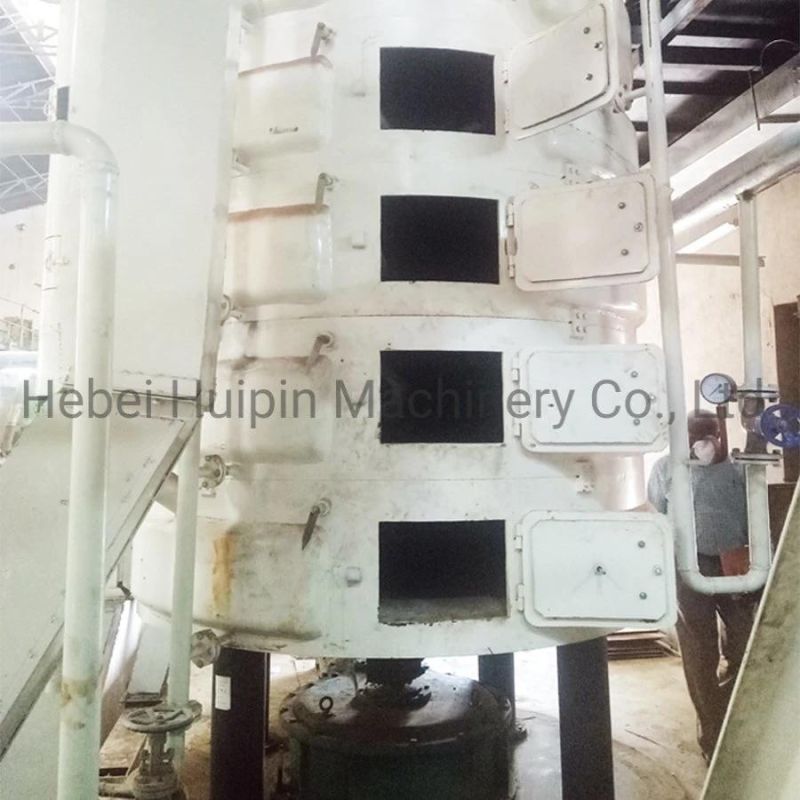

Peanut Oilseed Vertical Steam Roaster

This Peanut Oilseed Vertical Steam Roaster is one of the main supporting equipment of the oil making equipment. It is a redesigned model on the base of yzcl.180 x 5-type Oilseed Roaster. The machine is driven by the lower reducer. It is a type product of our factory. After continuous improvement and improvement, all technical indexes meet the design requirements. It is an ideal equipment for oil pretreatment in large and medium-sized Edible Oil Plant Project.

Industrial Oilseed Steam Cooker is a continuous production equipment. Applicable to the oilseed moisture, steam speculation through the role of temperature and moisture, so that oil cells are completely destroyed, protein denaturation, in order to improve the rate of squeezing out oil and improve the quality of cake meal. It is a very important working procedure in squeezing, pre pressing and leaching process.

Performance characteristics 1) Good effect of steaming and stir frying can regulate the moisture content of the embryo.
2) Equipment covers an area of less, low noise, easy maintenance, easy to operate.
 Main technical parameters

size	YZCL150*5	YZCL180*5	YZCL200*5	YZCL210*5	YZCL220*5	YZCL250*5	YZCL300*5
capacity	1.0-1.3t/h	1.5-2.Ot/h	2.5-3.0t/h	2.5-3.0t/h	3.0-3.5t/h	4.0-5.0t/h	5.0-6.5t/h
Inner diameter of cooker body	¢1500mm	¢1800mm	¢2000mm	¢2100mm	¢2200mm	¢2500mm	¢3000mm
Layers	5	5	5	5	5	5	5
Spindle speed	33r/min	33r/min	33r/min	33r/min	30.5r/min	24r/min	24/min
Work rate	15kw	18.5kw	22kw	22kw	30kw	37kw	45kw
Motor model	Y180L-6	Y200LI-6	Y200LI-6	Y200LI-6	Y225LI-6	Y250M-6	Y280S-6
Reducer type	ZLS-1:30	ZLS-1:30	ZLS-1:30	ZLS-1:30	ZLS-1:30	ZLS-1:40	ZLS-1:40
speed ratio	1:30	1:30	1:30	1:30	1:30	1:30	1:30
Heating area	14.6 sqm	19.7 sqm	23.6 sqm	25.6 sqm	27.6 sqm	35 sqm	48 sqm
The highest steam gauge	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa
Body full height	4710mm	4710mm	4710mm	4710mm	4150mm	4850mm	4850mm
Machine weight	6000kg	7000kg	7300kg	8000kg	10000kg	13000kg	17000kg
