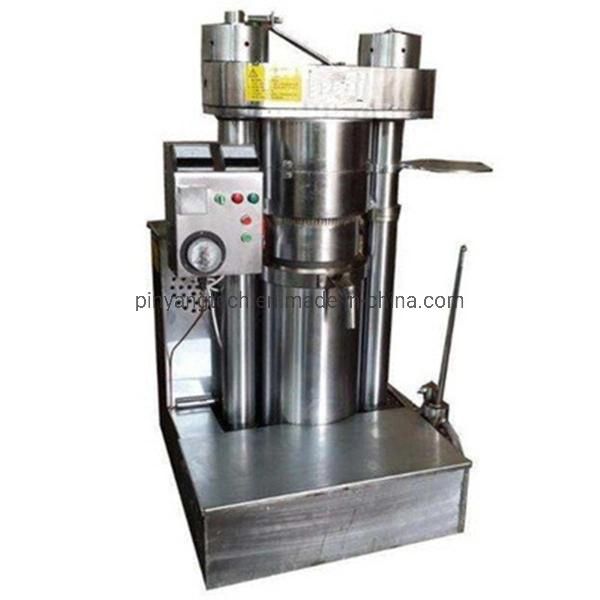

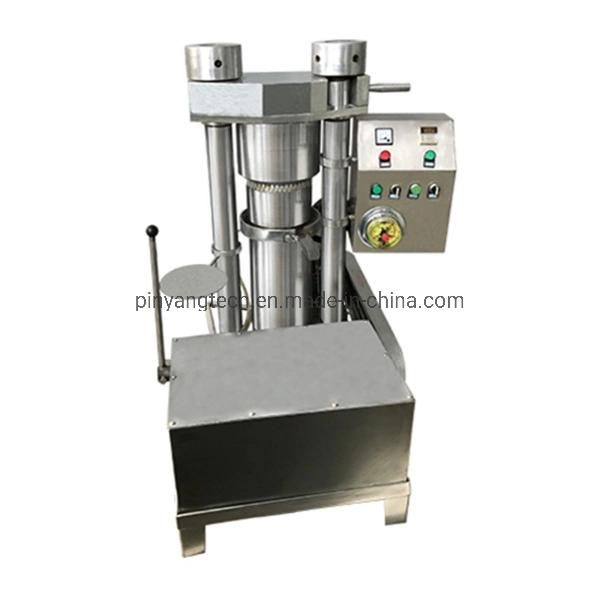

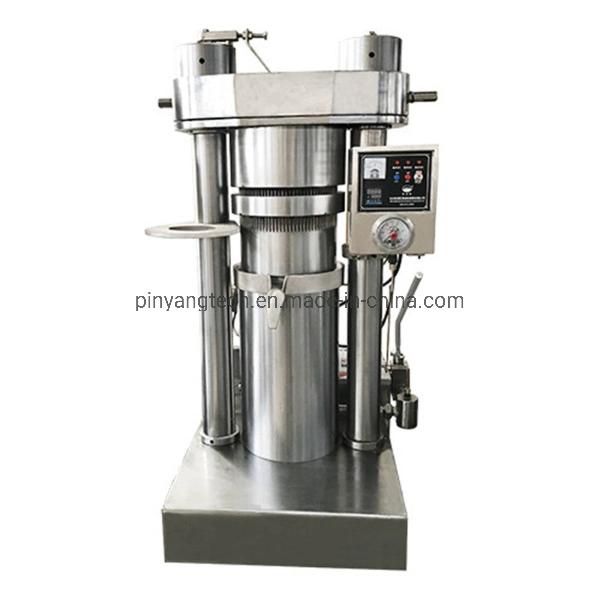

Hydraulic Oil Press Machine Used for Peanut, Sesame, Sunflower Seed, Rape Seed
Shanghai Sunkea Import & Export Co., Ltd.- Application：All
- Voltage：380V
- Appearance：Vertical
- Press Materials：Oil Palm Fruit
- Press Series：Second
- Condition：New
Base Info
- Model NO.：ZY14
- Customized：Customized
- Raw Material：Peanut, Soybean, Sunflower, Rapeseed, Cotton Seed
- Capacity：14 Kg,Batch
- Weight：1500kg
- Motor Power：1.5kw
- Dimension：1150*1050*1570mm
- Transport Package：International
- Specification：1150*1050*1570mm
- Trademark：pinyang
- Origin：China
- HS Code：8419310000
- Production Capacity：5000pieces,Year
Description
Basic Info.
Model NO. ZY14 Customized Customized Raw Material Peanut, Soybean, Sunflower, Rapeseed, Cotton Seed Capacity 14 Kg/Batch Weight 1500kg Motor Power 1.5kw Dimension 1150*1050*1570mm Transport Package International Specification 1150*1050*1570mm Trademark pinyang Origin China HS Code 8419310000 Production Capacity 5000pieces/YearProduct Description
Product Application
Simple structure, strong maintainability make this Hydraulic oil press very popular in Afria, South America, Asia.The hydraulic oil press is widely used for most raw materials, such as soybean, sesame, peanut, corn germ, sunflower seed, cocoa bean, rape seed, palm kernel, etc.
Specification
| Model | ZY3.5 | ZY7 | ZY9 | ZY11 | ZY14 | ZY16 |
| Capacity(batch/15 minuts) | 3.5kg/batch | 7kg/batch | 9kg/batch | 11kg/batch | 14 kg/batch | 16 kg/batch |
| Motor power | 2.2kw | 2.2kw | 1.2kw | 1.5kw | 1.5kw | 1.5kw |
| Power supply | 380V | 380V | 220/380V | 220/380V | 380V | 380V |
| Weight | 600KG | 800KG | 1100KG | 1400kg | 1500kg | 1600kg |
| Max pressure | 55Mpa | 55Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Size | 950*850*1250mm | 1000*900*1680mm | 1000*970*1420mm | 1150*1000*1570 | 1150*1050*1570mm | 1200*1150*1550mm |
