High-Speed CNC Fiber Laser for Metal Stainless Steel Aluminum Cutting
Hangzhou Mig Packaging Co., Ltd.- Application：Home Appliance, Aerospace Industry, Automotive Industry, Advertising Industry, Metal
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Raycus
Base Info
- Model NO.：RF3015
- Laser Technology：Laser Control Fault Cutting
- Cutting Thickness：6mm Steel

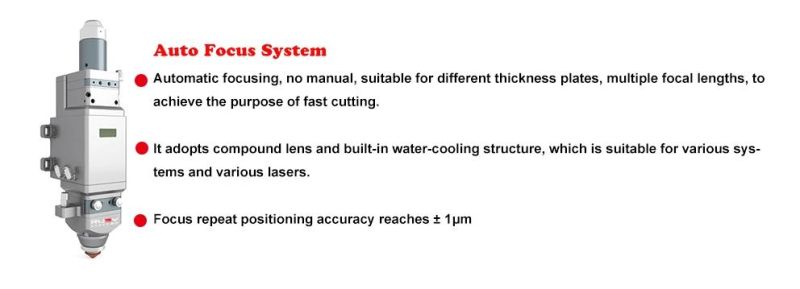

- Laser Head：Wsx , Laser Lech
- Driver Motor：Japan Panasonic Servo Motor and Driver
- Transport Package：Plywood
- Specification：3015
- Trademark：flying
- Origin：China
- HS Code：8456110090
- Production Capacity：50PCS,Month
Description
Model
RF3015
Processing area(L×W)
3000mm×1500mm
Power
1000w/2000w/3000w
X axis track
1550mm
Y axis track
3050mm
Z axis track
150mm
X,Y axis positioning accuracy
±0.03mm/m
X,Y axis repeat positioning accuracy
±0.02mm/m
X,Y axis max speed
80m/min
X,Y axis max acceleration
1G
Max.load of worktable
900Kg
CNC system
CYPCUT
Voltage
380V/50HZ
Applications:

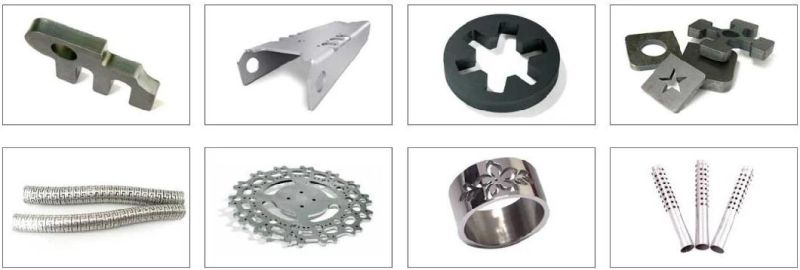

Samples Show:
