China Jinan Fermentation Tank with Rose Golden
Hangzhou Panache Import and Export Co., Ltd.- After-sales Service：Whole Life
- Warranty：3 Years
- Condition：New
- Customized：Customized
- Voltage：3 Phase, 380V 50Hz , 220V 60Hz
- Composition：Beer Brewery Equipment
Base Info
- Model NO.：CJ-1000
- Processing Material：Wheat, Malt, Barley
- Process：Ferment
- Polishing：Less Than 0.4 μm
- Dimension：Customized
- Power：15-72 Kw
- Insulation：50-100 Polyurethane
- Combination Method：Mash,Lauter Tun, Kettle,Whirlpool Tank
- Water Consumption：3.5m3,T
- Heating Way：Electric Heating,Steam Heating,Direct Fire Heating
- Control System：PLC
- Degree of Automation：Semi-Automatic,Fully Automatic
- Washing：360 Degree Spray Ball
- Manway：Top or Side
- Application：Restaurants, Bars, Hotels, Brewery
- out Size：Custom Made
- Certification：CE ISO UL
- Transport Package：Wooden Case or Steel Frame
- Specification：100L~3000L
- Trademark：CHENJI
- Origin：Jinan, China
- HS Code：8438400000
- Production Capacity：500 Sets Per Year
Description
Milling V-wire false bottom
With lauter rakes, VFD control
Side spent grain manhole
Stainless steel top manhole
With tangent whirlpool inlet
Efficient centrifugal wort pump/hot liquor pump
With hops filter for trub collection
Stainless steel plate heat exchanger for wort cooling
Oxigenate with carbon stone

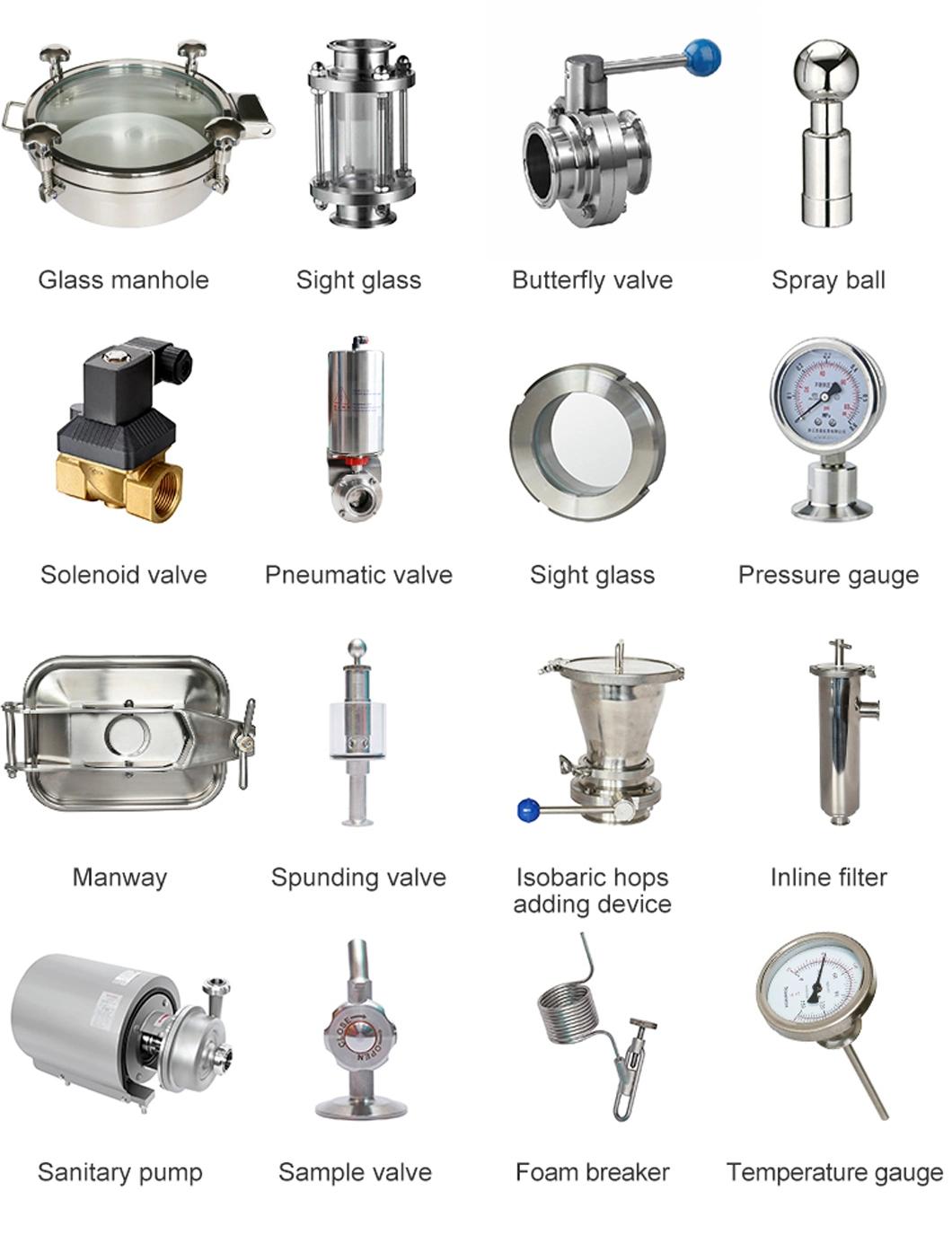

Sanitary stainless steel butterfly valves and pipeline connection
Stainless steel heavy duty supporting legs
Argon gas protection welding, well polishing
Electric heated: heating elements
Steam heated: steam jacket
Direct fire: firebox
Items for Optional:
-Agitator in kettle/whirlpool
-Hydrator
-Wort collector
-Grant
-Balance tank (sight glass type)
-Steam generator, electric/gas/diesel

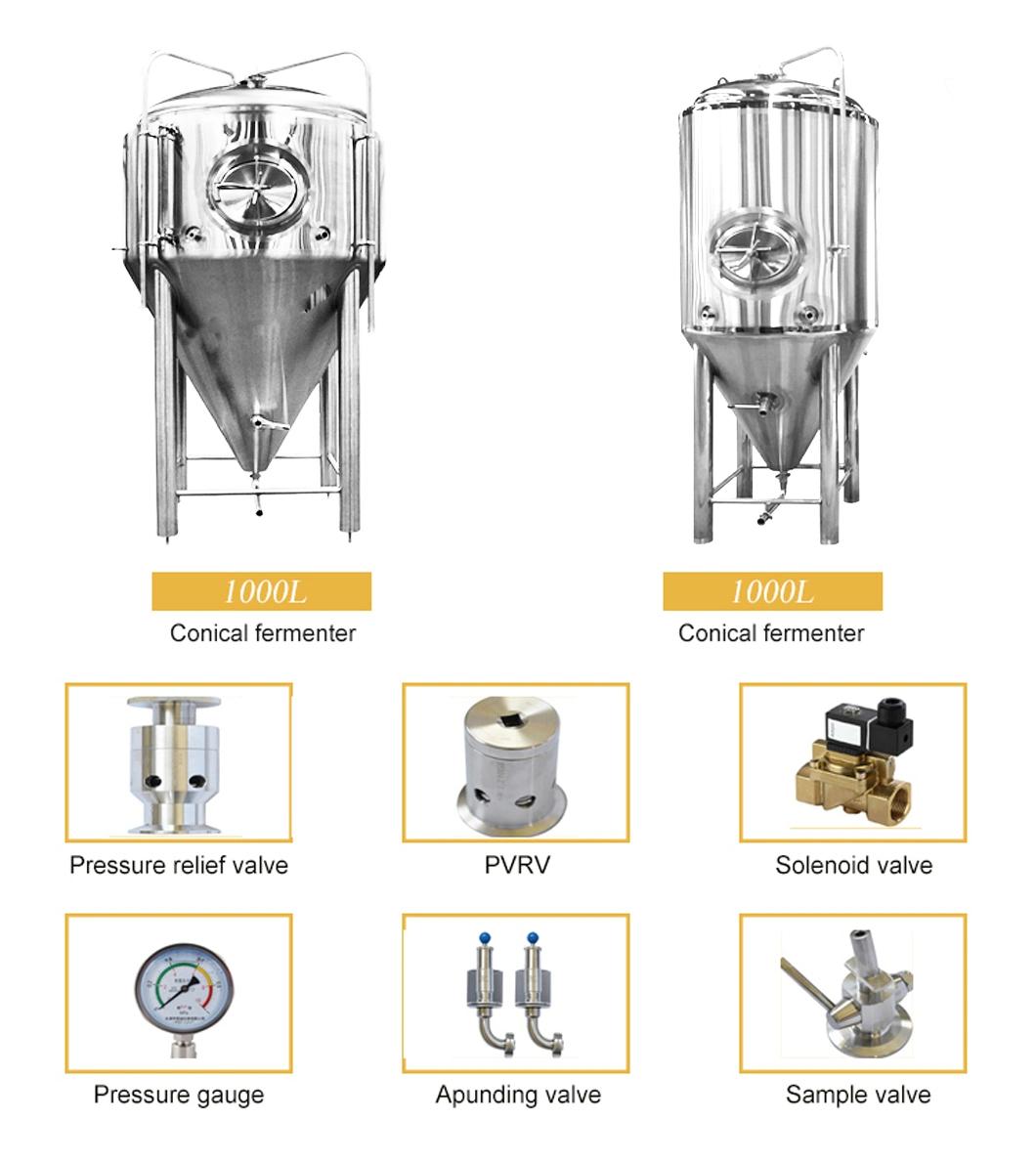

1. The fermentation system mainly includes fermentation tanks, sake tanks and yeast expansion equipment. The beer and wine fermentation system adopts different beer fermentation processes. Processed with 2mm 304 stainless steel plate, cooling medium: alcohol water, tank with sight glass, one inlet and outlet at the bottom, double-acting vacuum safety valve, diaphragm pressure gauge installed on the top, closed sight glass, one backup pressure exhaust and CIP port , Internally connected to the washing ball, external pressure exhaust pipe and CIP pipe, the tank has a sterile sampling valve and Pt100 platinum resistance, with 80 Rumi sight glass spotlight. The cold-rolled elliptical upper head is beautiful and has no dead corners for cleaning; with a sampling port.
2. The equipment is convenient for manual operation and manual cleaning to further ferment high-quality beer and wine. It is equipped with fermentation engineering technology and equipment manufacturing. It can realize automatic and semi-automatic control through the PLC automatic control system, and the whole process of controlling wine and beer. Ferment. Fermentation tank cleaning manholes are divided into top manholes, side manholes and waist manholes.
3. The fermentation system is generally composed of 6-12 fermentation tanks, with specifications ranging from 100L to 2000L, and various types, and can be tailored to your needs. The equipment liner is welded with standard high-quality stainless steel materials, polyurethane High-pressure foam insulation cone bottom structure, outsourcing according to customer needs, can be stainless steel mirror, matte, carbon steel, spraying and other forms.
4. Adopting beer standardized fermentation production technology, the internal mirror polishing of the tank can reach the polishing quality standard of ≤0.8um≤0.6um≤0.2um, which fully meets the requirements of beer fermentation, PLC automatic cleaning and disinfection systems.
5. The cooling jacket of the fermentation tank meets the technical requirements. It adopts the heat exchange methods of Maitreya, arched channel, corrugated channel, spiral and other jackets to meet the heat exchange technology needs of different cooling media and pressures.
6. Washing and sterilizing pipelines, material pipelines, cooling return pipelines and CO2 pipelines are connected between the fermentation tanks. All stainless steel pipes in contact with materials adopt sanitary ISO or PIN standard pipes, and the inner and outer walls are polished to meet food-grade sanitary standards.
FAQ:
1.Q: Are you professional Supplier and tanks Manufacture ?
A: We are the manufacturer of beer brewing equipment for 15 Year and deal in export business since 10 years ago .
2.Q:Can I have the customized products with personal design?
A:Yes,we support any of your wish design,can design and manufacture as client's requirements.
3.Q: Can you guarantee your beer brewing system quality?
A: All of the equipment will be inspected before the package, appliance of the international Standard.
4.Q:How about the after sales service?
A:For our after-sale service, we promise all life of technical support to all client.
All of our products is available with 10 years warranty even for spare parts within quality warranty period, our service is free of charge.
5.Q: Which export port you use?
A:Commonly we will use Qingdao port, sometime, can be other port as your wish.
6.Q: I am green hand in brewery industry? Could you supply training for us?
A: Yes, our engineer can supply the installation equipment and brewery training service overseas.
7.Q: what is your payment item ?
A: We accept 40%TT + 60%TT as for the balance payment before the delivery
