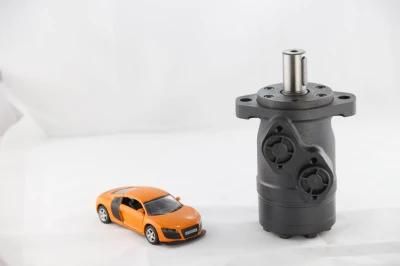

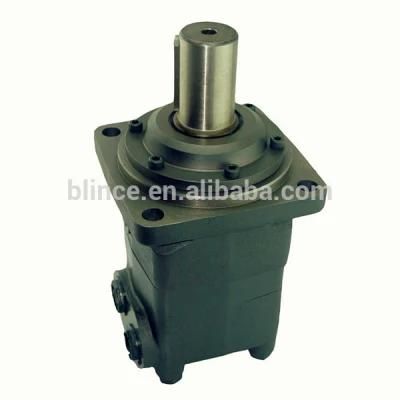

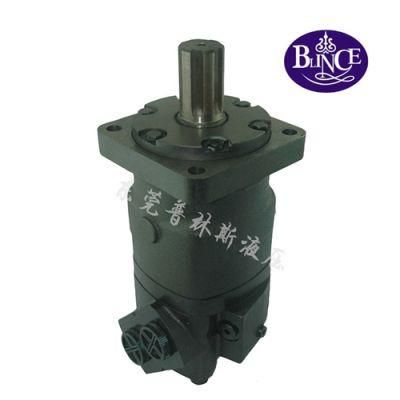

Omv Type Geroler 800cc Hydraulic Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：ISO9001 Ce
- Number of Poles：8
- Type：Hydraulic Motor
- Usage：Hydraulic Oil
- Application：Plastic Machine, Agriculture Machine
- Motor Flange Shape：Square and Rhombus Flange
Base Info
- Model NO.：omv,bmv 800, hydro motor
- Motor Material：Cast Iron
- Processing：Forging & Cutting &Phosphating
- Motor Shafts：Straight, Splined and Tapered
- Warranty：One Year
- Hydraulic Motor：Vane Hydraulic Motor
- Hydraulic Power Units：Vane Pump
- Hydraulic Actuator：Hydraulic Motor
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：6000
Description
Type OMV
315 OMV
400
OMV
500 OMV
630 OMV
800 OMV
1000 Displacement (cc/rev) 333 419 518 666 801 990 Max torque
(n.m) cont 920 1180 1460 1660 1880 2015 int 1110 1410 1760 1940 2110 2280 Max pressure
(Mpa) cont 20 20 20 18 16 14 int 24 24 24 21 18 16 Max speed rate
(rpm) cont 510 500 400 320 250 200 int 630 600 480 380 300 240 Max flow
(L/min) cont 160 200 200 200 200 200 int 200 240 240 240 240 240 Weight(kg) 31.8 32.6 33.5 34.9 36.5 38.6
Amy chen
Tel: +8613560881920
whatsapplication:008613560881920
315
400
500
630
800
1000
(n.m)
(Mpa)
(rpm)
(L/min)
