Rubber Hydraulic Molding Press Machine

Dongguan Koves Precision Tools Co., Ltd.

Base Info

Description

XH-406BE-30 Technical ParameterCapacity selection30 ton or customizeTemperature controlnormal temperature~300ºCPrecision of the control temp+ -2ºCHeating ModeElectrical HeatingTimepieceLED 0~99(min)Area of electric board300*300mm designatedArea of cooling plate300*300mm designatedCooling modeCompressor water cooling or running water coolingPlate spacing0~70mm designatedVolume1100*650*1600mmWeightAbout 750kgPower supply3Ø, AC380V, 20A

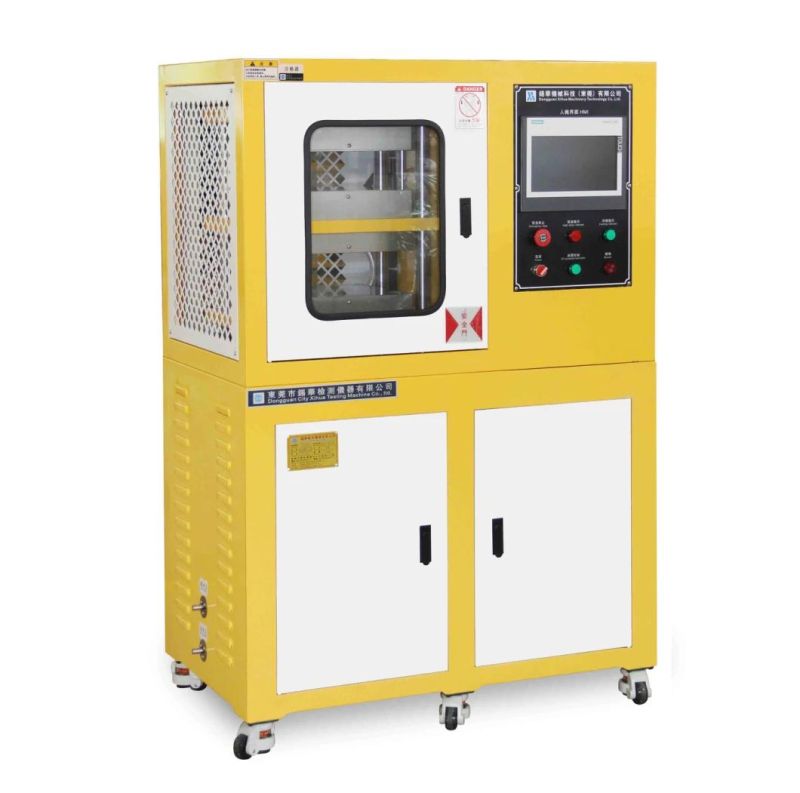

Rubber Hydraulic Molding Press Machine
Small Hydraulic Press Machine Features

(1) XH-406BE-30 tablet press machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.
(2) High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300ºC.
(3) Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
(4) Single heating can be designed according to the requirements.
(5) Oil hydraulic system: the pressure range: 30 ton, the maximum stroke of the cylinder: 180mm.

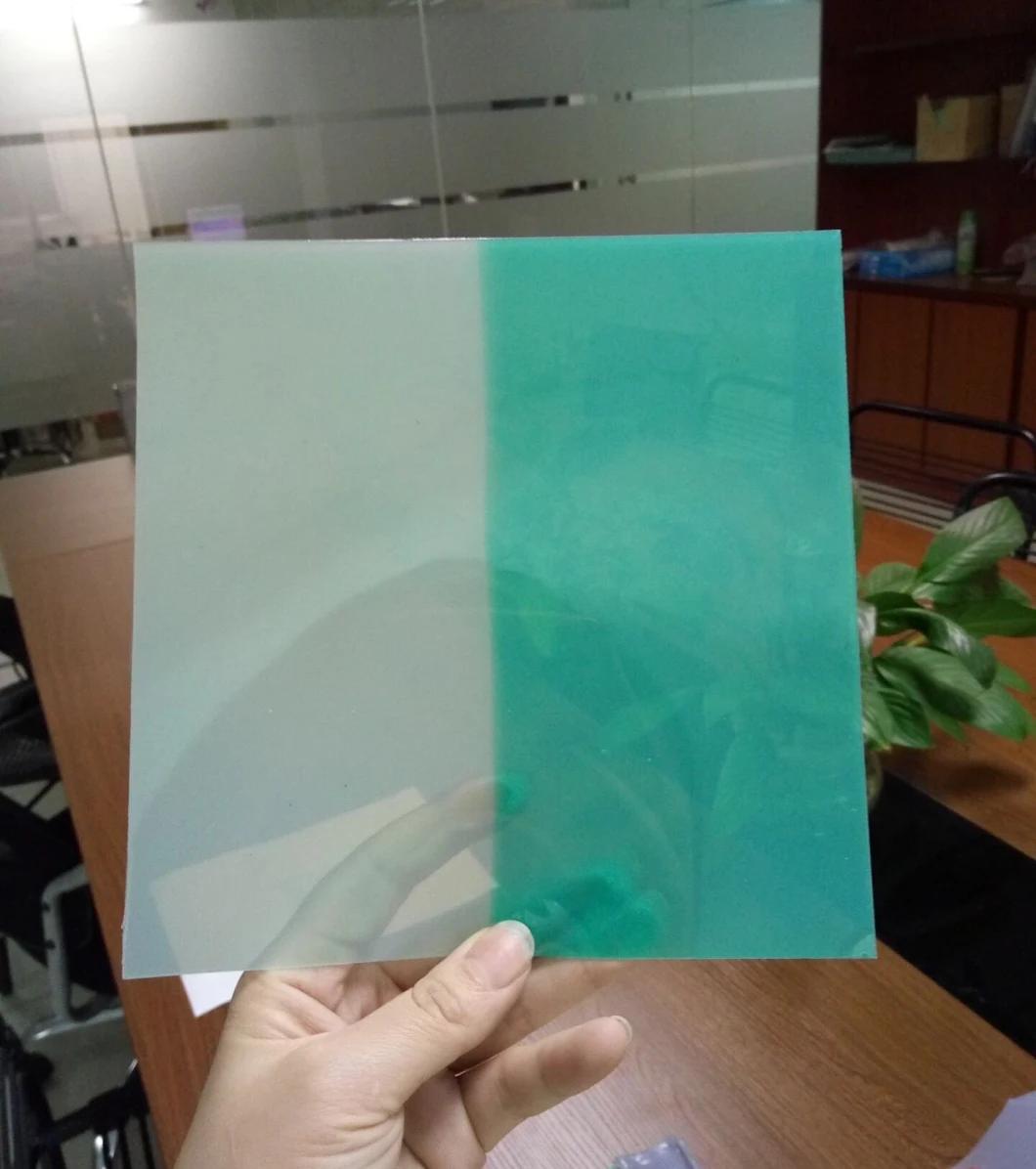

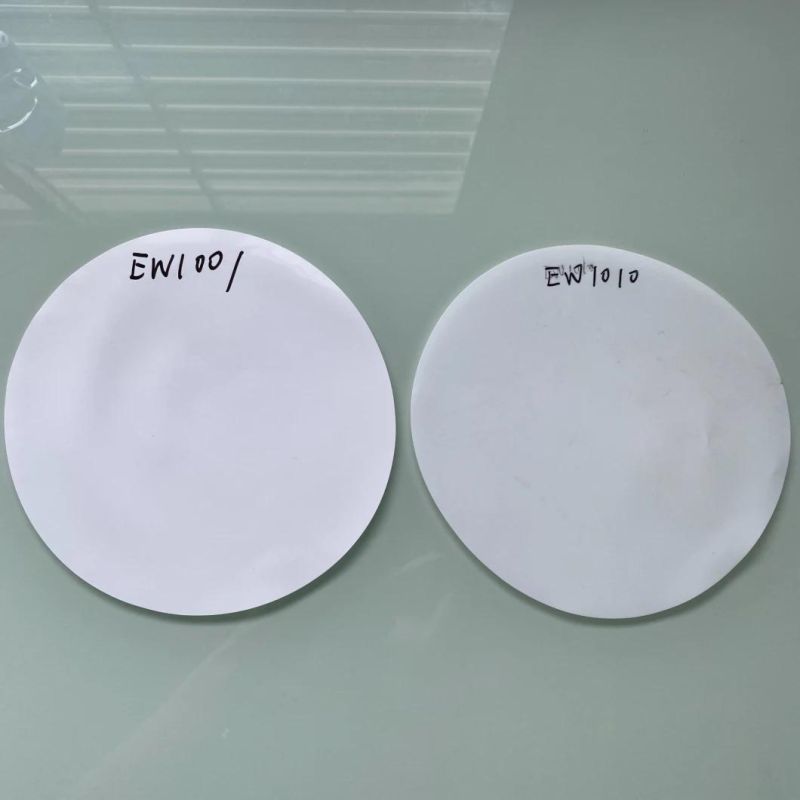

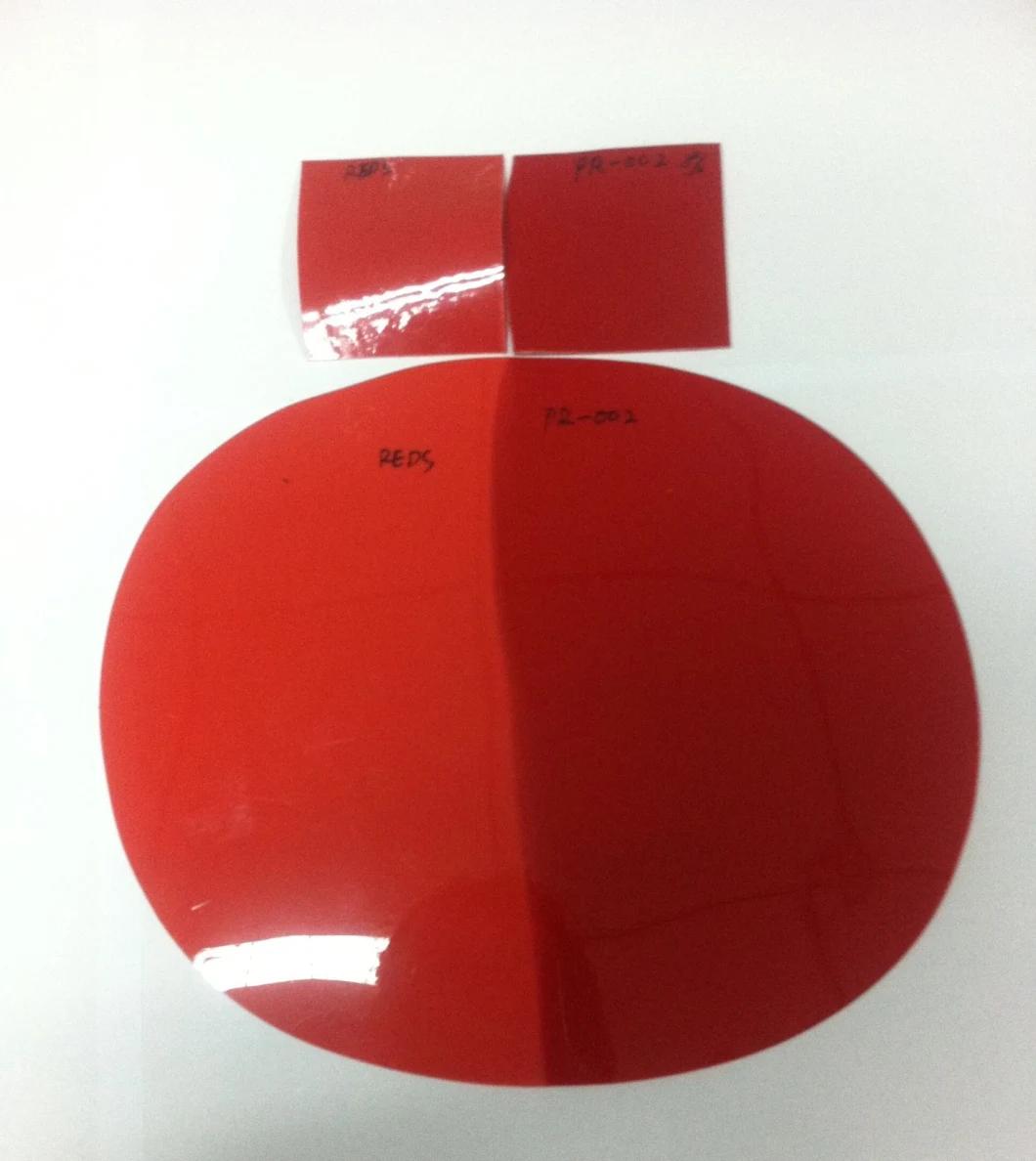

Testing sample
 Rubber Hydraulic Molding Press MachineRubber Hydraulic Molding Press MachineRubber Hydraulic Molding Press Machine

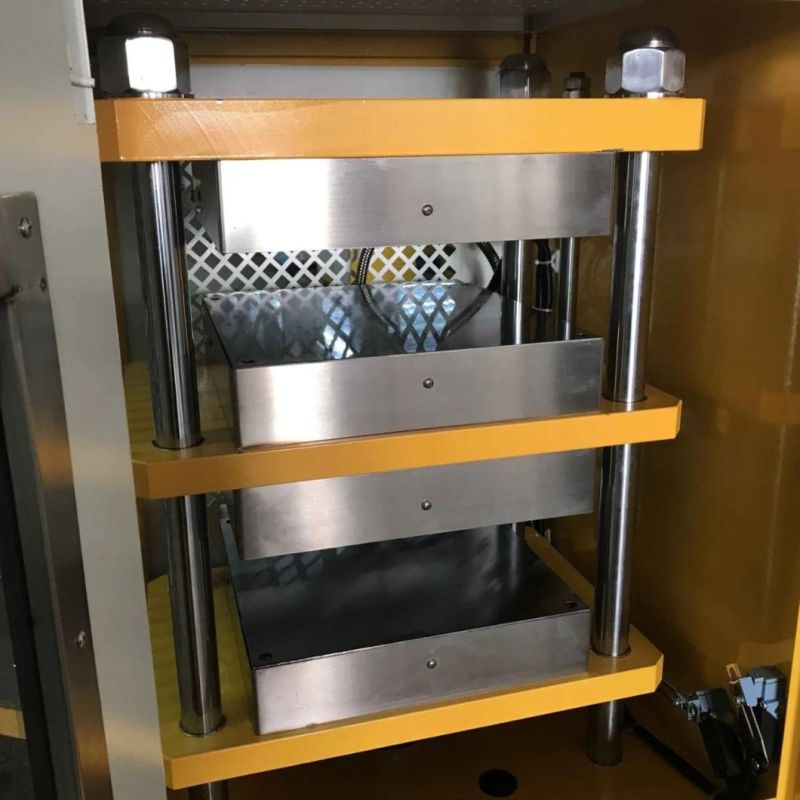

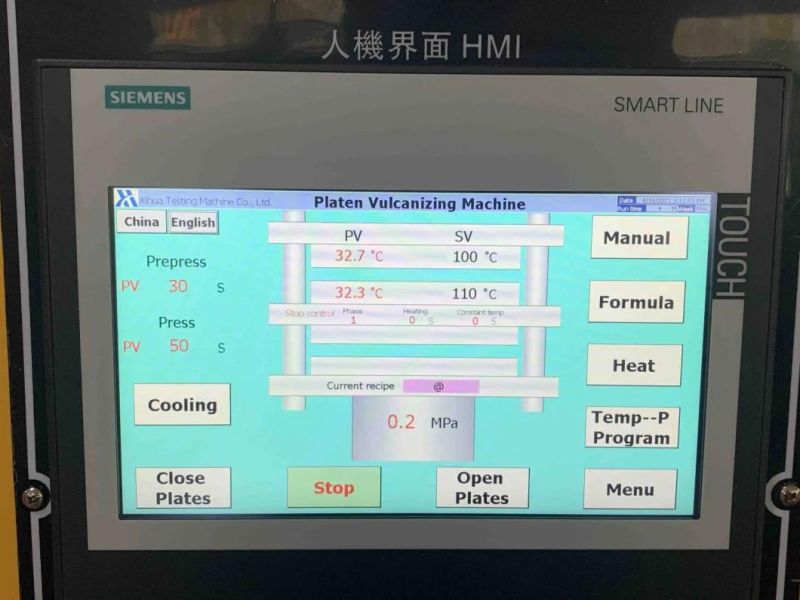

Details images
 Rubber Hydraulic Molding Press MachineRubber Hydraulic Molding Press Machine
