• Model NO.：KQ
• Name：Dairy Farm Sanitary Cooling Chilling Storage Tank
• Material：Sanitary Stainless Steel 304,316
• Product Certification：Ce Certificate
• Volume：100L-50000L
• Cooling Temperature：-4 Degree
• Refrigator Liquid：R404A ,R22
• Power(W)：3kw -100kw
• Weight：350kg
• Power Supply：Follow Your Request
• Type：Vertical ,Horizontal Type
• Motor Brand：ABB, Siemens ,China Brand
• Working Life：More Than 10 Years
• Delivery：10-15 Days to Make The Tank for You .
• Warranty：Two Years .
• Ome：Yes
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KAIQUAN
• Origin：Zhe Jiang Wenzhou
• HS Code：8479820090
• Production Capacity：1000units,Month

Basic Info.

Model NO. KQ Name Dairy Farm Sanitary Cooling Chilling Storage Tank Material Sanitary Stainless Steel 304/316 Product Certification Ce Certificate Volume 100L-50000L Cooling Temperature -4 Degree Refrigator Liquid R404A /R22 Power(W) 3kw -100kw Weight 350kg Power Supply Follow Your Request Type Vertical /Horizontal Type Motor Brand ABB/ Siemens /China Brand Working Life More Than 10 Years Delivery 10-15 Days to Make The Tank for You . Warranty Two Years . Ome Yes Transport Package Wooden Box Specification SANITARY, FOOD GRADE Trademark KAIQUAN Origin Zhe Jiang Wenzhou HS Code 8479820090 Production Capacity 1000units/Month

Product Description

 Dairy Farm Sanitary Cooling Chilling Storage Tank For Milk

Milk Cooler Milk Transpoation Tank Milk Cooling Tank Raw Milk Tank
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.

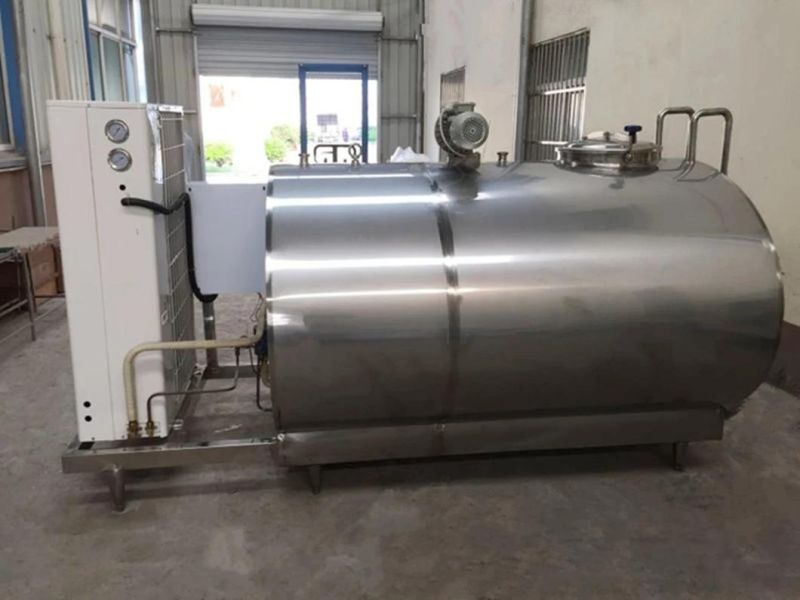

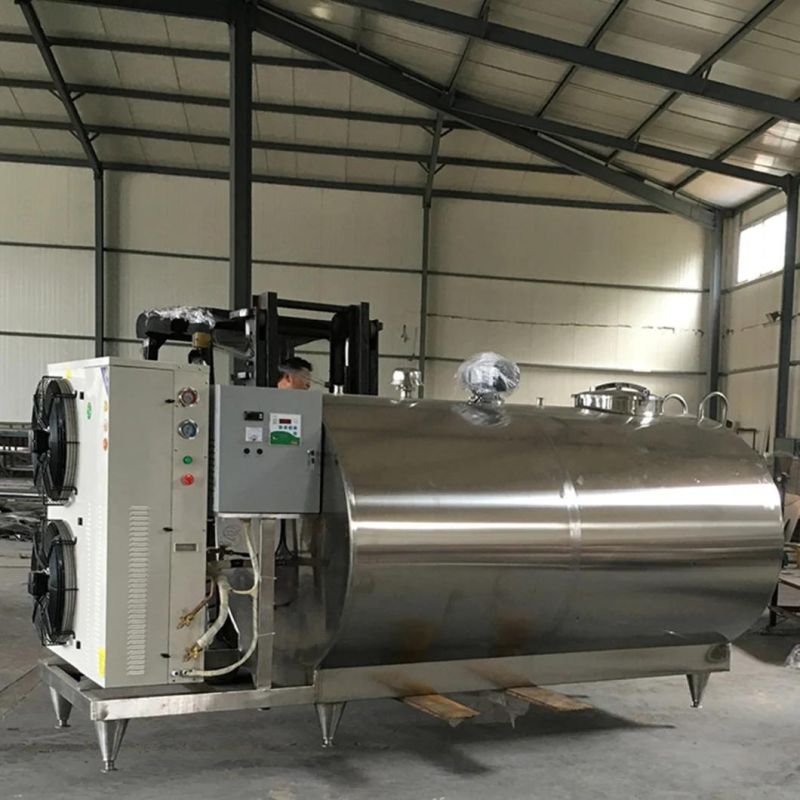

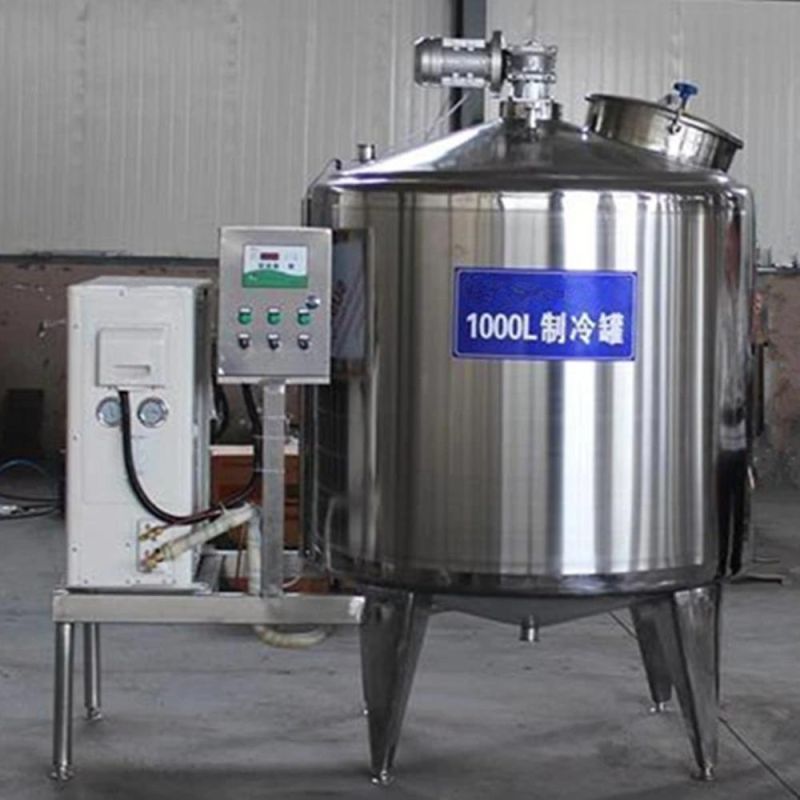

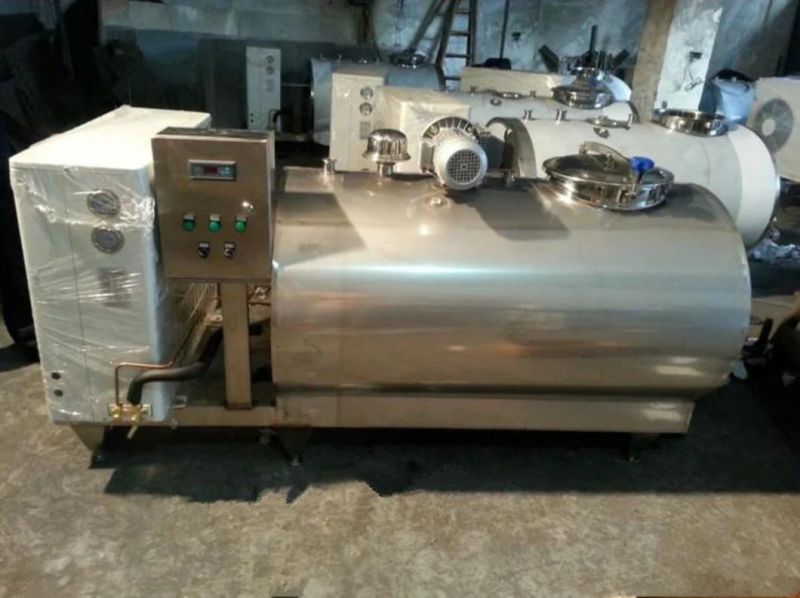

Sanitary Stainless Steel Fresh Milk Cooling Tank





Type	KQ-1T Vertical type	KQ-2T Laying type	KQ-3T Laying type	KQ-5T  Laying type	KQ-6T  Laying type	KQ-8T  Laying type	KQ-10T  Laying type
Capacity( L)	1000	2000	3000	5000	6000	8000	10000L
Refrigerating Output (W)	9000	15000	22000	37000	38000	55000	74000
Refrigerating  Fluid(R)	R404	R404	R404	R404	R404	R404	R404
Insulating Property	≤ 1 C /4h	≤1C/4h	≤1C/5h	≤1C/5h	≤1C/5h	≤1C/5h	≤1C/6h
Agitator Speed	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min
Power (Kw)	3.8	5.9	7.5	10.5	11	13	19.2
Voltage	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases
Dimension(mm)	1800*1200*1500	3400*1550*1750	3600*1700*1900	3900*2050*2150	4500*2050*2150	6300*2050*2250	8000*2100*2400
Weight(Approximately)	0.6T	0.75T	0.9T	1.1T	1.3T	1.8T	2.05T

Milk Cooler Milk Transpoation Tank Milk Cooling Tank Raw Milk Tank
 Dairy Farm Sanitary Cooling Chilling Storage Tank For Milk .
