• Model NO.：NC
• Material：SUS304
• Capacity：6000-8000bph
• Power：5kw
• Control：PLC+Touch Screen
• Driven Type：Electric
• Weight：2500kg
• Filling Principle：Atmospheric Pressure
• Certification：Ce,SGS,TUV
• Transport Package：Exported Wooden Case
• Specification：2500x1750x2200mm
• Trademark：NC Machinery
• Origin：Zhangjiagang
• HS Code：8422303090
• Production Capacity：10 Sets, Month

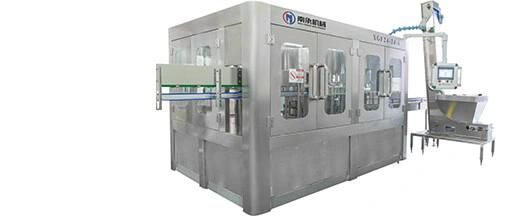

Technical parameter: Water bottling machineModelCGF8-8-3CGF12-12-5CGF18-18-6CGF24-24-6CGF32-32-8CGF40-40-10Capacity(for 500ml)20003000-40006000-80008000-1200013000-1500016000-18000Suitable bottle shapesPET circular or squareBottle diameter(mm)Dia50-Dia115mmBottle height (mm)160-320mmCompressor air0.3-0.7MPaWashing meidiumAseptic waterRinsing pressure>0.06MPa <0.2MPaApplicationWater bottling machineTotal power (KW)4.4kw4.4kw4.4kw5.2kw6.2kw7.8kwOverall dimensions2.3*1.9m2.5*1.9m2.8*2.15m3.1*2.5m3.8*2.8m4.5*3.3mHeight2.3m2.5m2.5m2.5m2.5m2.6mWeight(kg)2500kg3200kg4000kg4500kg6500kg8000kg

Main components:

NO	Name	Model	Unit	Qty	Manufacturer	Remark
1	Main motor	Y90L-4 1.5KW	Set	1	Suzhou	Frame
2	Sort caps motor	YCJ90W-4 0.06kw	Set	1	Yongjia	Frame
3	Washing pump	0.37kw	Set	1	Linxiao	Frame
4	Water pump	BJZ037S 0.37kw	Set	1	NanFang	Frame
5	Conveyor motor	UDL 0.37KW	Set	1	Taizhou	Frame
6	Air conveyor motor	Y802-2 0.75KW	Set	1	Wuxi	Frame
7	PLC	XC3-24R-E	Set	1	Mitsubishi	Japan
8	Frequency converter	E600-1.5KW/380V	Set	1	Siemens	Germany
9	Breaker	DZ47-3P-D 20A	Set	1	Siemens	Germany
10	Breaker	DZ47-1P -C6A	Set	1	Siemens	Germany
11	AC contactor	CJX2-0910	Set	5	Siemens	Germany
12	Thermal relay	JRSD-25	Set	5	Siemens	Germany
13	Communication Cable	XVP-5M	Set	1	Mitsubishi	Japan
14	Terminal Blocks	TBC-20	Set	1	Shanghai	Electric
15	Emergency stop button	01ZS	Set	1	shanghai	Electrical
16	Indicator	AD16-22	Set	1	Shanghai	Electrical
17	Annunciator	AD16-22SM AC220V	Set	1	Shanghai	Electrical
18	Touch screen	TG765-N	Set	1	Weinview	Taiwan
19	Proximity switch	PR18-5DN	Set	1	AUTONICS	Korea
20	Photoelectric switch	E3F-DS30C1	Set	2	AUTONICS	Korea
21	Speed potentiometer	WTH118-1A2W4.7K	Set	1	Shanghai	Electrical
22	Feed cap	180w	Set	1	Shanghai	Feed caps

DETAILS SHOWING

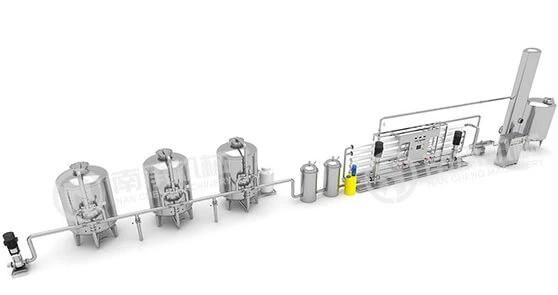

WATER TREATMENT SYSTEM

According to customer's water source analysis report and the final water standard required, we will suggest customer to choose the suitable water treatment plants.



Water bottling machine main Features:
*Using the wind sent access and move wheel in the bottle directly connected technology; Canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough...
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

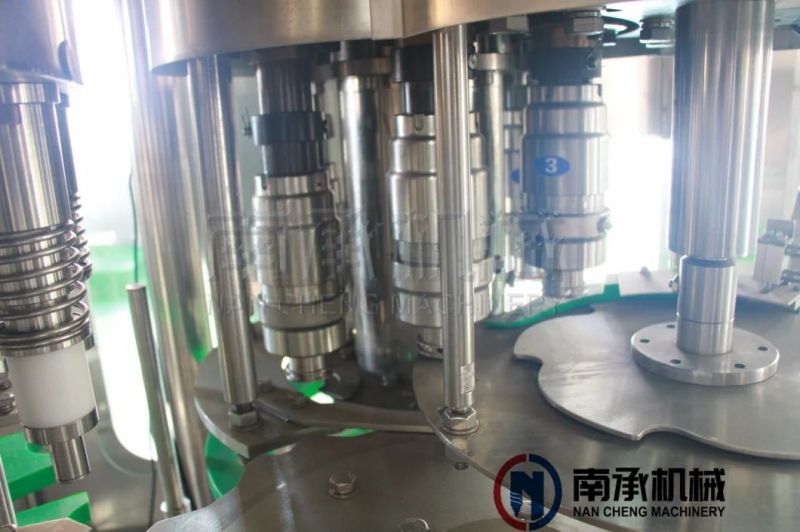

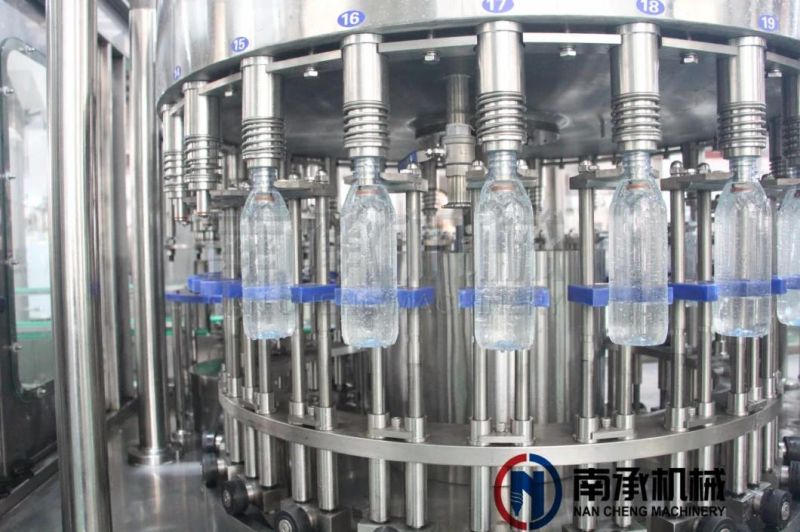

*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.






Packing system

As customer request and market demand, we provide the better solution for the final product package,
We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label, and packing machine have the film shrink machine and carton box package.
Blowingsystem

This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
Conveyor system

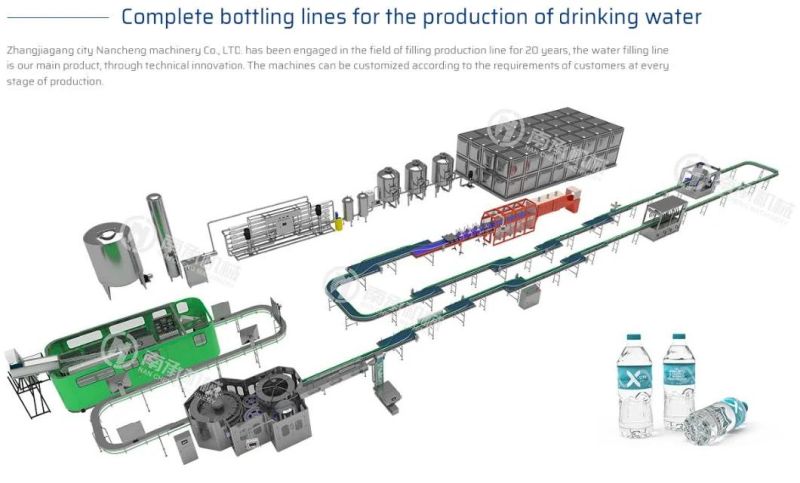

We design the factory layout based on customer factory sizes, whole line design is based on famous brand motors and automatic lubricant system, and with less power consumption, and save space.



Company introduction

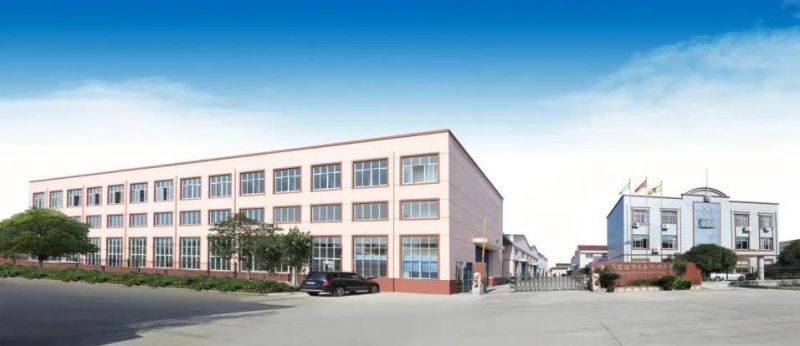

Nancheng Machinery Co., Ltd. locates in Zhangjiagang city which is close to Shanghai and Wuxi. Our company covers 20,000 square meters. Supported by strong designing & developing facilities and professional technical team, we are of fully capability in research and development, manufacture and after-sale service. We  never stop introducing the most advanced packing technology, developing and better our products, focusing on the reliability of overall performance; these ensure us unique competitive advantages.
The main business of our company concentrates on Water  Treatment  Equipment and packaging products for various commercial fluids, including drinking water, carbonated beverages, juice, tea and alcohols. We are popular with both domestic customers and overseas clients for the reliability and high quality of our products.
