• Model NO.：QT800
• Mesh and Belt Width：800mm
• Mesh and Belt Speed：0-8
• Power：9.17kw
• Refrigeration Unit：2~3
• Cooling Tunnel Length：16m
• Cooling Tunnel Temp：2~10ºC
• Weight：2800kg
• Outside Dimwnsions：Lx1400X1800
• Transport Package：Wooden Case
• Specification：CE
• Trademark：SHINWEI
• Origin：Shanghai China
• Production Capacity：20sets,Year

Basic Info.

Model NO. QT800 Mesh and Belt Width 800mm Mesh and Belt Speed 0-8 Power 9.17kw Refrigeration Unit 2~3 Cooling Tunnel Length 16m Cooling Tunnel Temp 2~10ºC Weight 2800kg Outside Dimwnsions Lx1400X1800 Transport Package Wooden Case Specification CE Trademark SHINWEI Origin Shanghai China Production Capacity 20sets/Year

Product Description

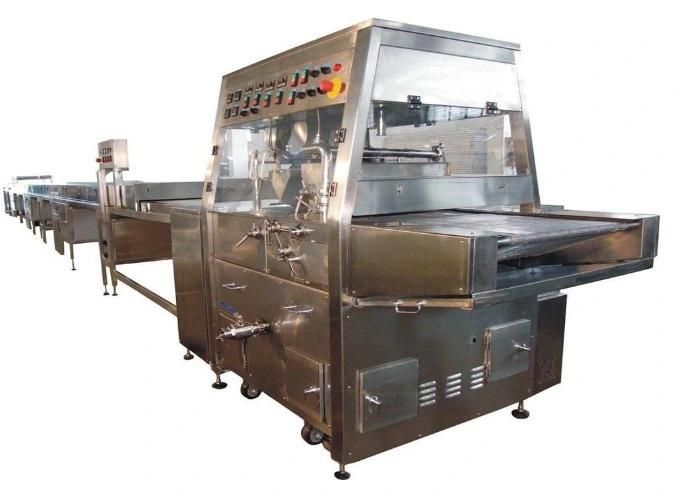

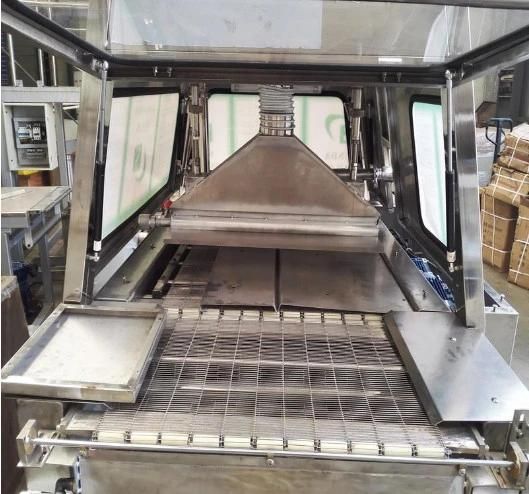

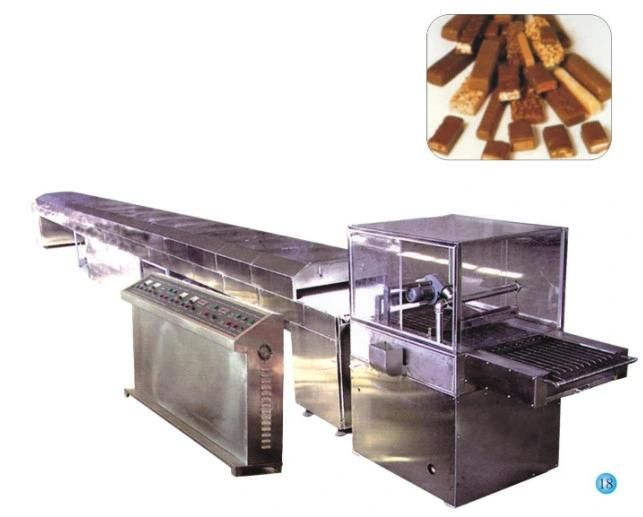

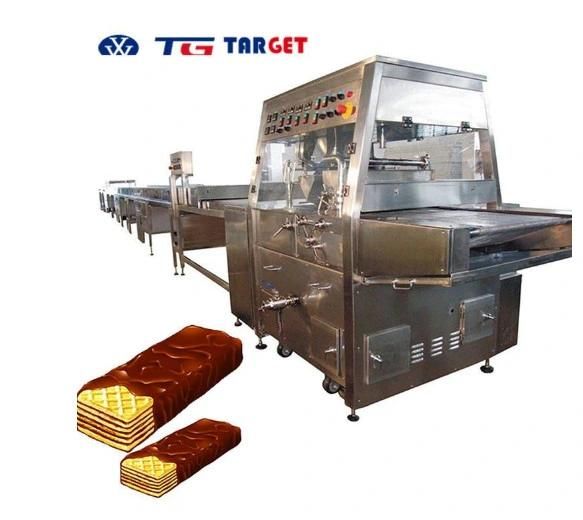

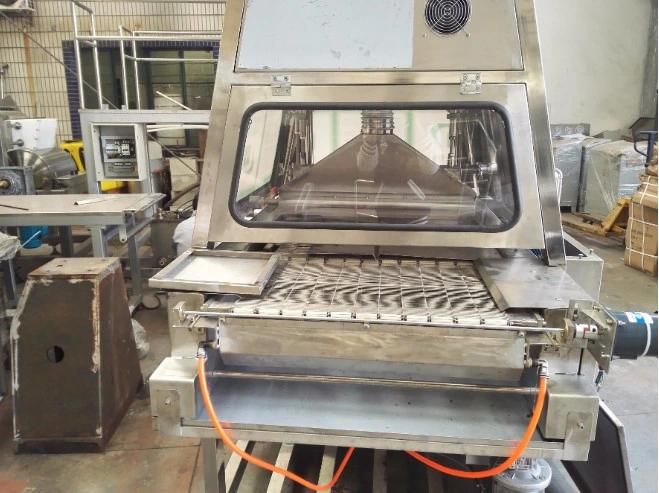

                               Chocolate enrobing line
Features:
The enrobing line is used to enrobe chocolate on various food products such as biscuit, wafers, egg rolls, cake pie and snacks etc. Cooling tunnel is available in this complete line. It can also coat chocolate on bottom-side for your option.
1. The machine is a special equipment which is used for producing assorted chocolates. It can coat chocolates in the surface of many kinds of kinds of foods.
2. Such as candy, case and biscuit et, chocolate product have many various flavors
3. It can coat chocolates think liquid in the surface of many kinds of kinds of foods.
Material: All stainless stell or parts to contact chocolate are stainless steel, the outside parts are painted carbon steel.
Parameter:

Model	QT600	QT800	QT1000	QT1200
Wiremesh and belt width (mm)	600	800	1000	1200
Wiremesh and belt speed (m/min)	0~8	0~7	0~7	0~7
Refrigeration unit	2~3	2~3	2~4	3~5
Cooling tunnel length (m)	14	16	18	20
Cooling tunnel temperature	2~10	2~10	2~10	2~10
Total power (kw)	9.17	9.17	12	12.5
weight(kg)	2300	2800	3200	4000
Outside dimensions(mm)	L×950×1800	L×1400×1800	L×1650×1800	L×1850×1800

Machine and Production






Wooden packing
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing: A. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: According to different products for reinforcement
After-sale service for abroad customers:
1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment
