Model TDB-25AStation Single stationMax. Product Volume(L)25LDry cycle(pc/h)600Screw Diameter(mm)80Screw L/D ratio(L/D)25Screw drive power(KW)30Screw heating capacity(KW)6.2~8.2No. of heating zone(ZONE)4Max.Output of HDPE(Kg/hr)90~130Oil pump drive power(KW)22Clamping force(KN)215Mold stroke (Platen distance)(mm)350~780Max. Size of Mold(W*H)(mm)550*650Capacity of the diehead(L)4Max. Die diameter(mm)300Die heat capacity(KW)5.28No. of heating zone(ZONE)4Blowing pressure(Mpa)0.8Air volume(M3/MIN)0.8Cooling water pressure(Mpa)0.3Water consumption(L/MIN)60Size of machine ( L*W*H)(m)4.1*2.2*3.5Weight of machine(TON)11
Supplier of main parts

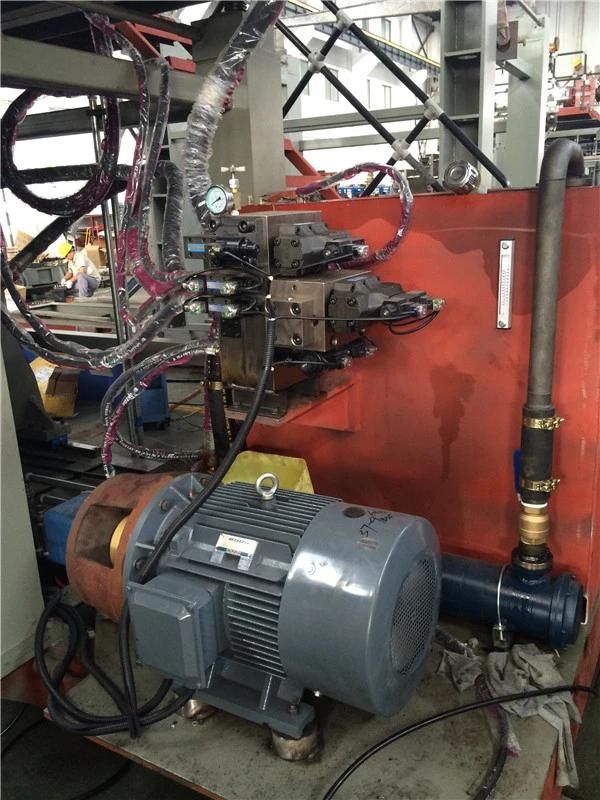

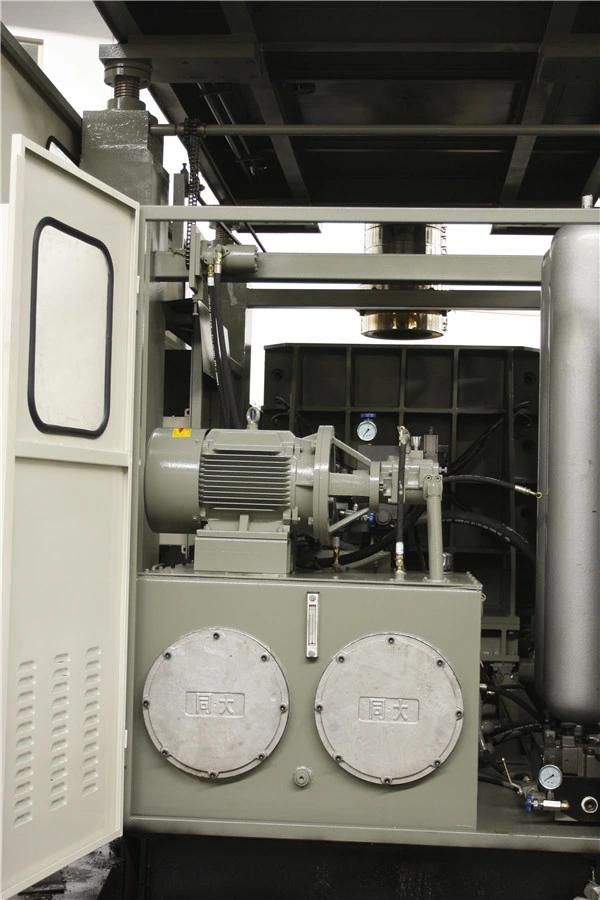

a) Hydraulic Part
Oil Pump--------------------------------------------------DENISON OR SUNNY, America
Valve-------------------------------------------------------YUKEN, Japan
Hose, Joint------------------------------------------------PARKER SIR, America
Sealer------------------------------------------------------Top DZ, Europe
b) Electrical Parts
Microcomputer Control System------------------------MITSUBISHI PLC, Japan
Touch Screen  ---------------------------------------------HITECH color screen, Taiwan
Temperature Controller---------------------------------MITSUBISHI, Japan
Conductor-------------------------------------------------SCHNEIDER, France
Air Switch-------------------------------------------------SCHNEIDER, France
Motor------------------------------------------------------SIMENS BEIDE Asynchronous Motor, Japan
Power Resource------------------------------------------MEAN WELL, Taiwan
Inverter---------------------------------------------------MITSUBISHI, Japan
c) Pneumatic Parts
Solenoid Valve--------------------------------------------FESTO, Germany
Cylinder---------------------------------------------------FESTO, Germany
d) Parison wall thickness controller
Parison controller 100 point----------------------------MOOG, Japan

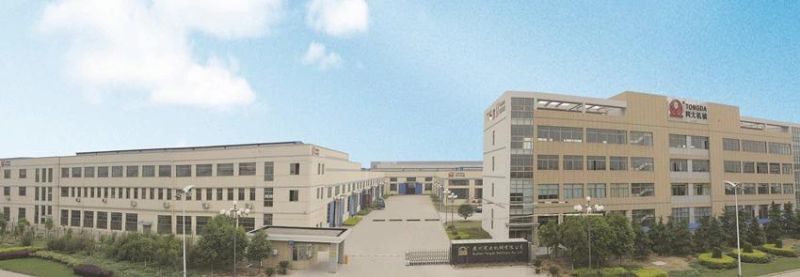

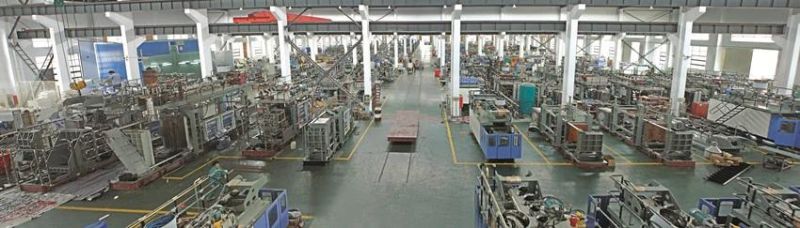

Workshop pictures







Extrusion blow molding machine installation, commissioning and training:
If the buyer needs seller to send technicians to workshop for supervising the erection and start-up, seller must support and send sufficient number of technicians and keep duration of stay in workshop. Usually it's about 3~5 days in this duration. The first day is that when our technician is at the airport to factory of buyer. And from the first day, the buyer has to pay US$50 per day. And all accommodation, visa application & air ticket will be born by the buyer.


Extrusion blow molding machine packing: PE film, Wooden box, Wooden/Steel base; 20" container or 40" container
