• Model NO.：AL156
• Feature：Anti-Explosion
• Working Mode：Manual
• Folded：Unfolded
• Handle Color：Pure
• Application Age：Adult
• Certificate：Bam,FM,GS
• Transport Package：Plastic Bag,Box,Carton,Pallet
• Specification：8-85mm
• Trademark：WEDO
• Origin：China
• HS Code：8204110000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. AL156 Feature Anti-Explosion Working Mode Manual Folded Unfolded Handle Color Pure Application Age Adult Certificate Bam/FM/GS Transport Package Plastic Bag/Box/Carton/Pallet Specification 8-85mm Trademark WEDO Origin China HS Code 8204110000 Production Capacity 50000PCS/Year

Product Description

ITEM CODE	SIZE
AL156-8	8mm
AL156-10	10mm
AL156-12	12mm
AL156-14	14mm
AL156-16	16mm
AL156-17	17mm
AL156-18	18mm
AL156-19	19mm
AL156-20	20mm
AL156-21	21mm
AL156-22	22mm
AL156-24	24mm
AL156-27	27mm
AL156-30	30mm
AL156-32	32mm
AL156-34	34mm
AL156-36	36mm
AL156-38	38mm
AL156-41	41mm
AL156-45	45mm
AL156-46	46mm
AL156-48	48mm
AL156-50	50mm
AL156-55	55mm
AL156-56	56mm
AL156-60	60mm
AL156-65	65mm
AL156-70	70mm
AL156-75	75mm
AL156-80	80mm
AL156-85	85mm

Above item no. is only for Aluminium Bronze material, Besides Aluminium Bronze, WEDO also supply in Beryllium Copper, below are differences of two material.

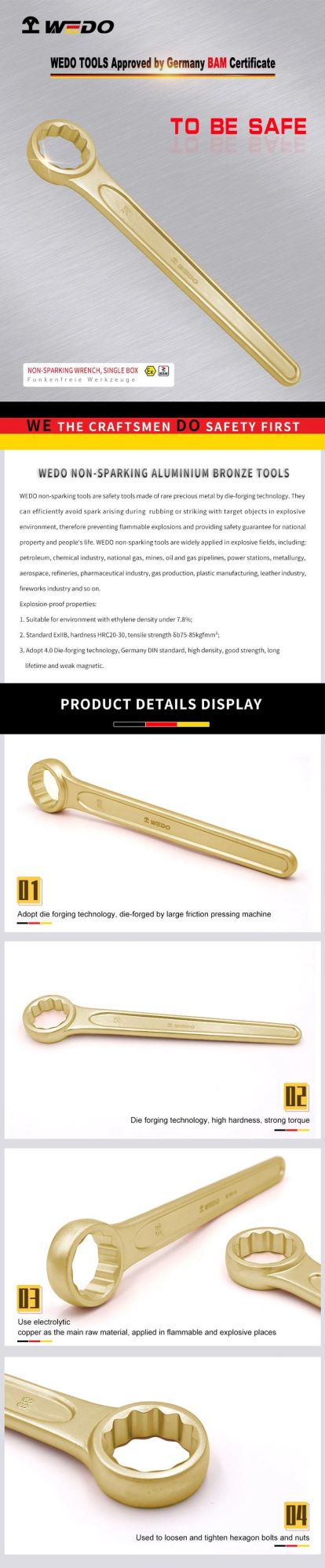

Aluminum Bronze Non-sparking Tools
1. Appropriate for operation with ethylene concentration below 7.8%
2. Surface Color: Silver Yellow
3. Micro-magnetic
4. Hardness: 20-30 HRC
5. Tensile Strength: 782N/mm²-989N/mm²
6. Elasticity Limit: 450N/mm²-550N/mm²
7. Extensibility: δ≥5%

Beryllium Copper Non-sparking Tools
1. Appropriate for operation with hydrogen concentration below 21%,
2. Surface Color:Golden Yellow
3. Non-magnetic
4. Hardness: 30-40 HRC
5. Tensile Strength: 1117N/mm²-1326N/mm²
6. Elasticity Limit: 840N/mm²-880N/mm²
7. Extensibility: δ≤1.0%

To ensure the explosion-proof performance, after the raw materials are melt with scientific ratio, QC personnel will take sample piece to do drop weight and friction test according to GB/T 10686-2013 standard. The test is conducted under the highest level ExIIC,  hydrogen concentration 21%. Only if the samples are tested qualified can the next step of production be carried out.

The explosion-proof performance of WEDO non-sparking tools is guaranteed for lifetime.
