Basic Info.

Model NO. GZ(Y)-30 Model Number Gz(Y)-30 Control Type PLC Control Main Pump Motor Power 5.5kw Mixing Motor Power 0.55kw Hydraulic Pump Motor Power 2.2kw Auto Glue Filling Motor Power 1.5kw Flux 5~30kg Per Minute Dimension 1370mm X 1350mm X 2250mm Machine Weight About 800kg Brand Zhenhuan Transport Package Wooden Case Specification SGS Trademark Zhenhuan Origin Jiangsu, China Production Capacity 100 Sets Per Year

Product Description

Polyurethane foam injecting machine is mainly used for continuous injecting rigid or soft polyurethane foam for various thermal insulation purposes.

Polyrethane foam injecting machine is controlled by PLC, high accuracy, simple operation, convenient maintenance. When pre-set first injection is finished, the alarming relay will give alarms.

Main technical data for polyurethane foam injecting machine
1 Main pump motor power: 5.5kW
2 Mixing motor power: 0.55kW
3 Hydraulic pump motor power: 2.2kW
4 Auto glue filling motor power: 1.5kW (two set for two tanks)
5 Flux: 5~50kg per minute
6 Capacity of the tanks for polyurethane glue: 180kg each, auto filling glues
7 PLC automatic control: PLC programmable, automatically heating, injecting, cleaning and blowing; Special PLC system from Chinese domestic which can save 99 programs.
8 Equipped piston type counting pump: HJ30-50 (two), adjusting accuracy 0.05%.
9 Generating pressure: 8-10MPa (one 0.8 m3 air compressor is equipped by buyer)
10 Machine weight: about 800kg
11 Dimension: 1370mm x 1350mm x 2250mm

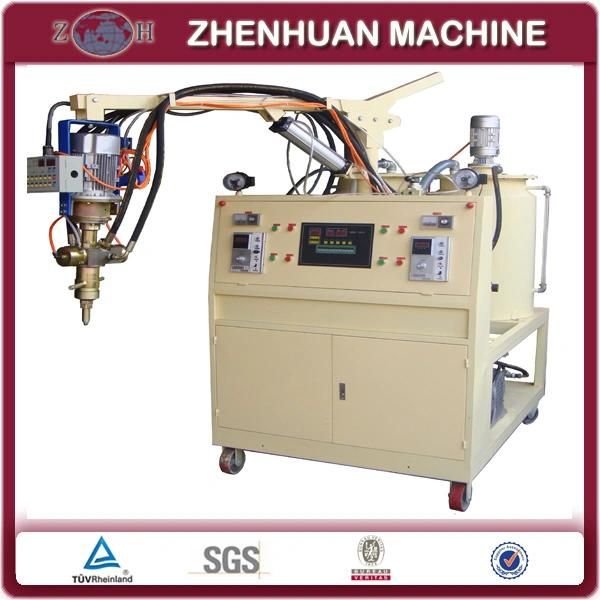

Machine photo of polyurethane foam injecting machine

Our Nantong Zhenhuan Trade Co., Ltd. is certified by TUV, BV, SGS, good reputation and credit. We can provide you not only good quality polyurethane foam injecting machine but also good after-sale service.

Pls contact us for more information of polyurethane foam injecting machine
