Basic Info.

Model NO. 720/1220 Computerized Computerized Certification CE, ISO9001:2008, SGS After-sales Service Video Technical Support, Free Spare Parts Forming Area 720*1220 Forming Depth 165mm Suitable Material PP/PS/Pet/PVC/PLA Thick of Sheet 0.15-1.5mm Power 60kw Heating Down Oven Heating Delivery Time 30 Days Voltage 380V Weight 3000kgs Dimension (L)6600*(W)1450*(H)2800mm Transport Package Wooden Case Specification CE Trademark HongYin Origin Ruian, Zhejiang HS Code 847780000 Production Capacity 100 Set/Year

Product Description

The vacuum machine overview:

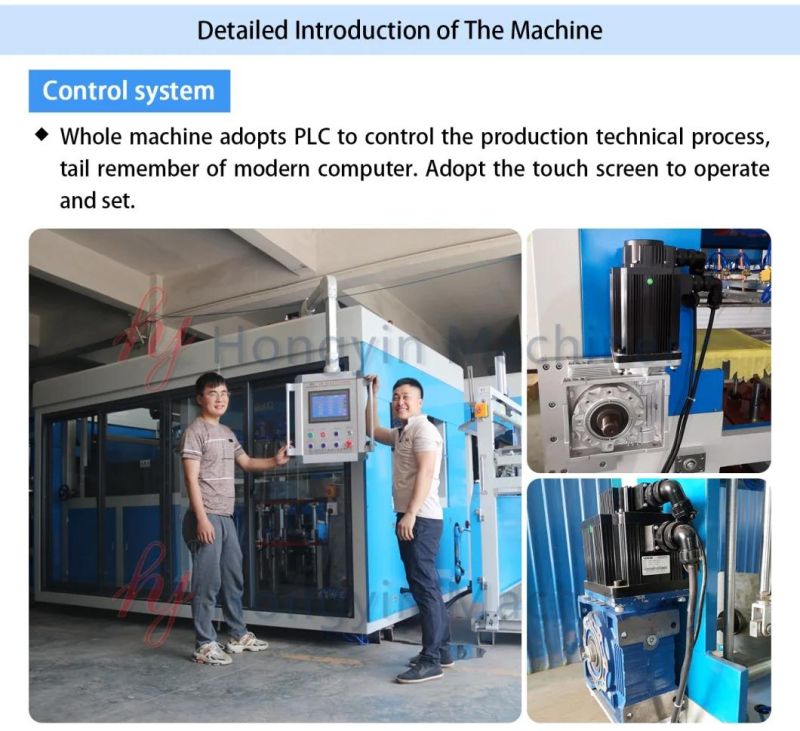

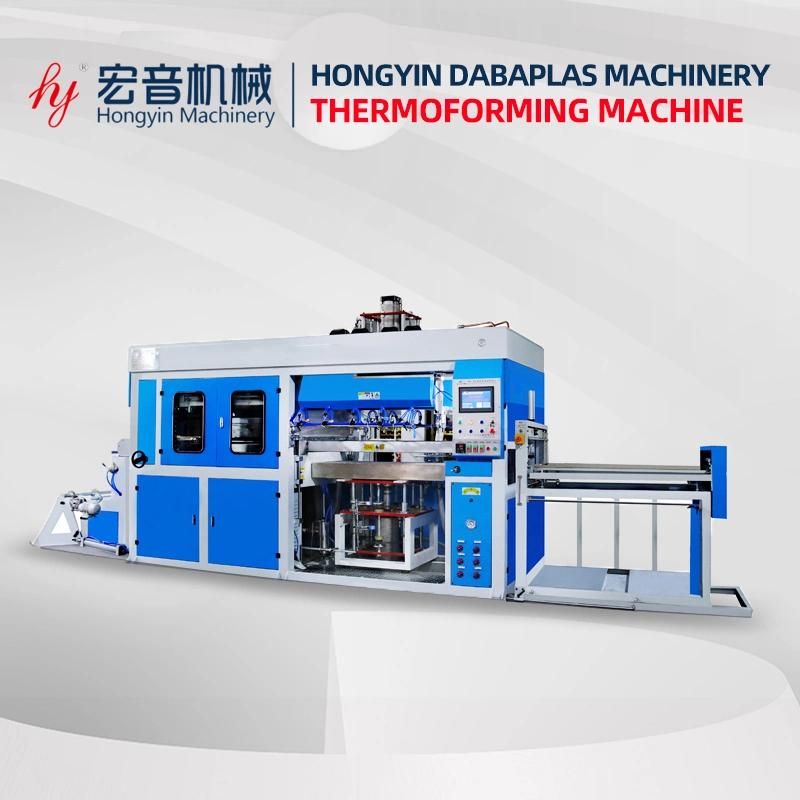

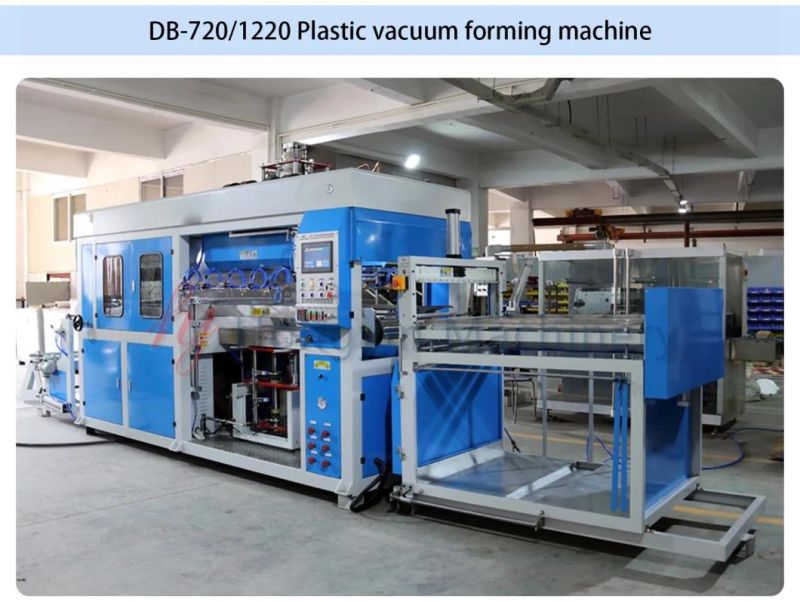

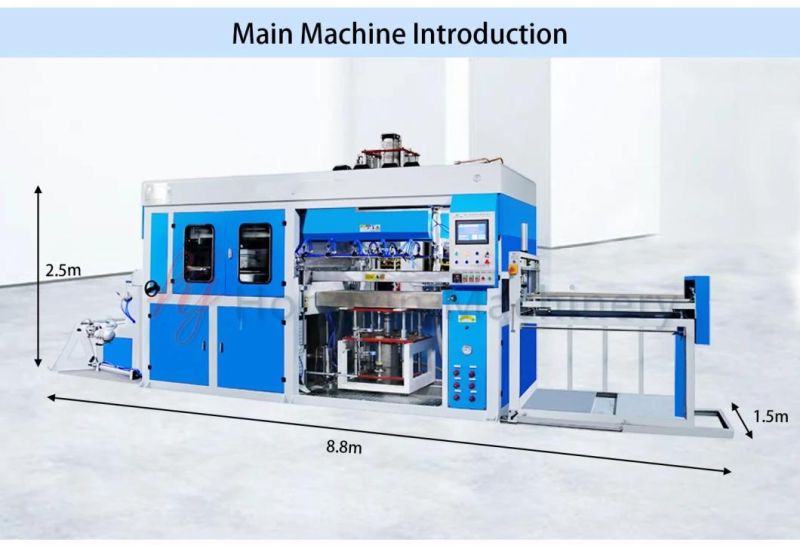

HY-720/1200 Plastic vacuum forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating, forming, cooling, mold ejecting, cutting by one process.

It is mainly applied to plastic sheet material molding, such as PS, HIPS, PVC, PET, PP and flocking sheet, etc. which produce all kinds of trays, trays for medicine injection, oral liquid, vegetables, telephones, cookies, tool, hardware, electron and disposable tableware, etc.


1.Forming area	720*1200mm(can change)
2.Sheet width	610-760mm (can change)
3.Forming height	0-165mm
4.Thickness of sheet	0.15-1.0mm
5.Production speed	200-600times/hour(depend on the shape of product and thickness of sheet)
6.Mould-up move	Electromotion
7.Electric oven power	30 KW

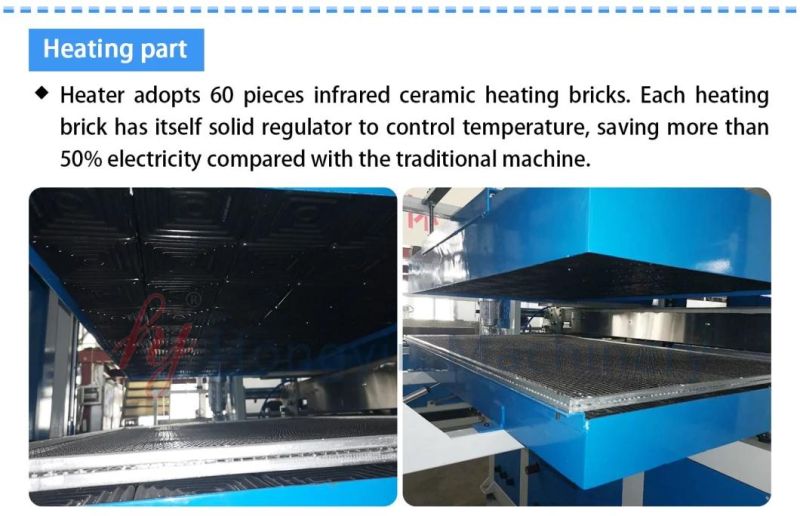

8.Heating device	60 independent electronics non pole adjust(one control one)
9.Traction motor power	2.2KW
10.Vacuum pump power	3.0 KW
11.Cooling-water machine power	3.37 KW
12.Power	380V  50/60HZ three phases
13.Air compressor	15KW/20HP  (remarked by customer)
14.Dimension	(L)8800*(W)1500*(H)2800mm
15.Weight	3000kg

About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new to the plastic forming machine area, some samples of your products show to us will be appreciated, we will give you specialized suggestions for the whole work.

2. Installation Service:
Hongyin company will assign 1 technician to coordinate installation, commissioning, and training, the cost for the return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping costs for easy broken parts to be replaced during the warranty period have to be borne by the customer.

If you are interested in our machine, please feel free and contact me.
Contacter: Lynn
