• Model NO.：PEDB-200
• Laser Wavelength：Fiber Laser
• Laser Classification：Free Electron Laser
• Type：Semiconductor Laser Marking Machine
• Marking Method：Scanning Marking
• Average Output Power：20W (Cw or Pulse)
• Wavelength：1064nm
• Pulse Repetition Frequency：20-100kHz
• Marking Depth：≤1.2mm
• Output Beam Quality：<1.5m²
• Min. Focusing Spot：0.005mm
• Min. Character Height：0.15mm
• Max. Marking Speed：12000mm,S
• Re-Precision：±0.001mm
• Cooling：Air Cooling
• Transport Package：Wooden Case
• Specification：ISO9000&CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：84561000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. PEDB-200 Laser Wavelength Fiber Laser Laser Classification Free Electron Laser Type Semiconductor Laser Marking Machine Marking Method Scanning Marking Average Output Power 20W (Cw or Pulse) Wavelength 1064nm Pulse Repetition Frequency 20-100kHz Marking Depth ≤1.2mm Output Beam Quality <1.5m² Min. Focusing Spot 0.005mm Min. Character Height 0.15mm Max. Marking Speed 12000mm/S Re-Precision ±0.001mm Cooling Air Cooling Transport Package Wooden Case Specification ISO9000&CE Trademark Perfect Laser Origin China HS Code 84561000 Production Capacity 500 Sets/Month

Product Description

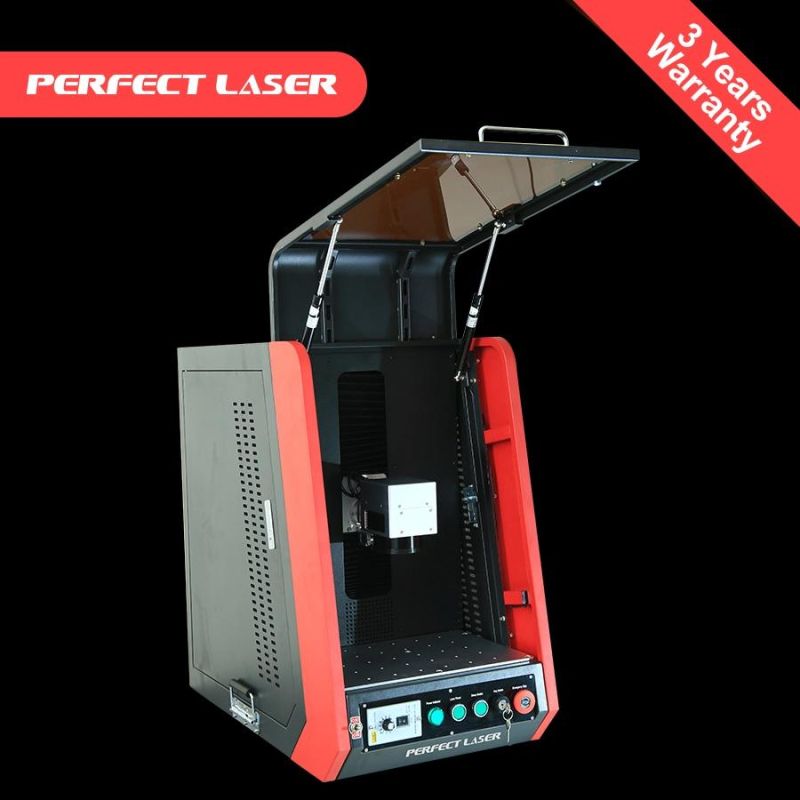

                                                PEDB-200A  Mini Full Closed Fiber Laser Marking Machine


---Brief Introduction
The full-closed type 20w fiber laser marking machine adopts the portable design and is easy to move and work in different place. It has no consumables, so the depreciation cost of the product is greatly reduced. It has the advantages of high efficiency, long service life and maintenance free, which the traditional laser doesn't have. It is suitable to mark on hardware tools, kitchen knives, plastic products, integrated circuit, bottles, glasses frame, cleaner taps and so on.


---Technical Parameters

Average output power	20W (CW or pulse)
Wavelength	1064nm
Power Modulation Range	10-100%
Pulse Repetition Frequency	20-100KHz
Output Beam Quality	<1.5M²
Marking Depth	≤1.2mm
Min. Focusing Spot	0.005mm
Min. Character Height	0.15mm
Max. Marking Speed	12000mm/s
Format Supported	Graphics, text, bar code, two-dimensional code, date, frequency, batch number, serial number, file link.
Operating System	It can work with win7,win8 and XP. It support PLT, PCX, DXF, BMP and so on. It can use directly SHX and TTF font.
Re-precision	±0.001mm
Overall Power	≤160W
Power Supply	220V±10%/50Hz/4A
Cooling	Air Cooling
Control Interface	USB
Laser Module Life	>100000h
Galvanometer	High performance scanning galvanometer
Working Environment	No dust and no source of vibration

---Product Application
1. Replace ink and paint: labels of cellphone battery, panels, cellphone keys, small accessories, etc..
2. Ceramic and EP materials: electronic components package, IC, etc..
3. Plastic products: numerical order and LOGO of electrical enclosures and electronic products.
4. Metal surface: stainless steel, copper, aluminum, oxidation, phosphatization and electrocladding. It's commonly used in hardware, daily necessities, electrical enclosures, cell phone cases, etc..

---Product Advantages
1. High definition: Resolution is up to 1 micron and is at least 10 times higher than traditional machines.
2. Less power consumption: It's 1 / 25 ~1 / 10 of traditional laser markers.
3. High speed: 3~5 times faster than traditional laser markers.
4. High stability: higher than any other similar ones.
5. Long service life: 10 times longer than traditional ones.
