Basic Info.

Model NO. CPU20J-1 Transport Package Plywood Box Specification 2500*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

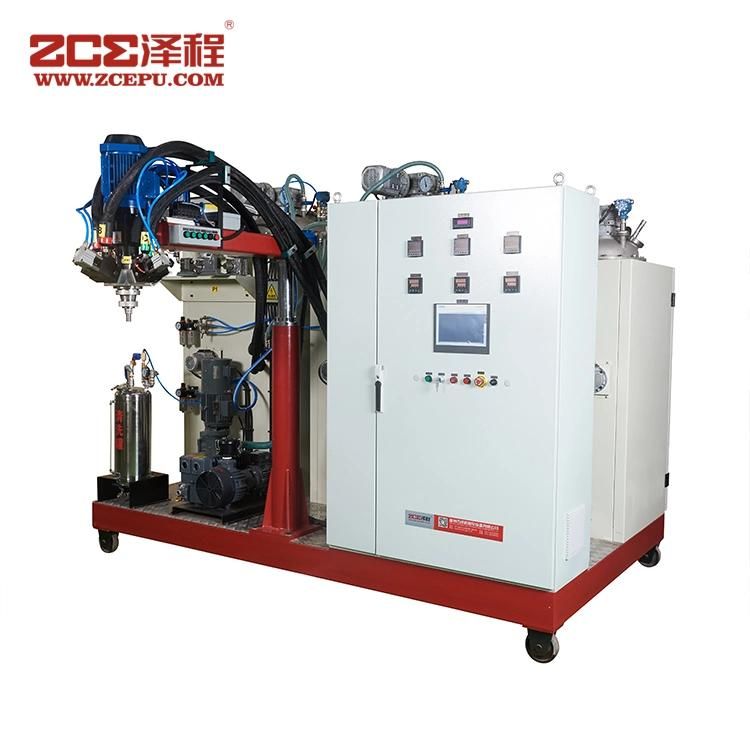

Product Description

ZCE specialized in doing Polyurethane machine , Pu roller making machine, Polyurethane wheel and castor making machine ,Polyurethane elastomer machine , MDI/TDI/NDI Polyurethane machine , Polyurethane injection machine , Polyurethane two components pouring machine ,Three components polyurethane pouring machine .  Polyurethane casting machine . PU machine,Polyurethane roll machine,Resin Casting Machine

Technical parameters


1. Output : 250~800g/min
2. Three-phase AC 380V + zero line + (ground) frequency: 50HZ total power 35KW wire 10 square line
3.  Air source: The outer diameter of the inlet pipe is 8mm and the pressure is 0.6~0.8MPa.
4. Three components mixing ratio: A: B:C = 100: 205~27:5 ~ 20

   Raw Chemical Components


Component Name	Mixing ratio	Temperature(ºC)	Viscosity (CPS)
A ( prepolymer)	100	60-100ºC	<2000
B (MOCA etc.)	20-35	80-125ºC	<100
C  Color paste	0.5-3	Room temperature	50-2000



Output :  g/min

Item/Model	CPU30J-M1	CPU30J-M2	CPU30J-M3	CPU30J-M4	CPU30J-M5
Max.Output (g/min)	250-2500	1000-5000	3000-10000	5000-15000	10000-30000
A tank capacity(L)	160	160	250	250	400
B tank capacity(L)	160	160	250	250	400
C Tank Size(L)	30	30	80	80	80
Stirrer Speed(rpm)	3000-5000	3000-5000	4000-5000	4000-5000	3000-5000
Height from the ground(mm)	1100-1400	1100-1400	1100-1400	1100-1400	1100-1400
Total power(kw)	30	30	35	35	40
Weight(Kg)	1800	2000	2500	2800	3200
