• Model NO.：diamond encrusted blade
• Diameter：105-3500mm
• Core Size：According to Customer Requirements
• Product Name：Segmented Saw Blade
• Authentication：ISO9001-2008,TUV,SGS
• Advantage：Fast Cutting Speed and Long Lifespan
• Technology：Sinter
• Machine：Block Cutting Machine,Bridge Cutting Machine ,etc,
• Transport Package：Wooden Box
• Specification：According to customer requirements
• Trademark：WANLONG
• Origin：China
• Production Capacity：10000pieces,Week

Basic Info.

Model NO. diamond encrusted blade Diameter 105-3500mm Core Size According to Customer Requirements Product Name Segmented Saw Blade Authentication ISO9001-2008,TUV,SGS Advantage Fast Cutting Speed and Long Lifespan Technology Sinter Machine Block Cutting Machine,Bridge Cutting Machine ,etc, Transport Package Wooden Box Specification According to customer requirements Trademark WANLONG Origin China Production Capacity 10000pieces/Week

Product Description

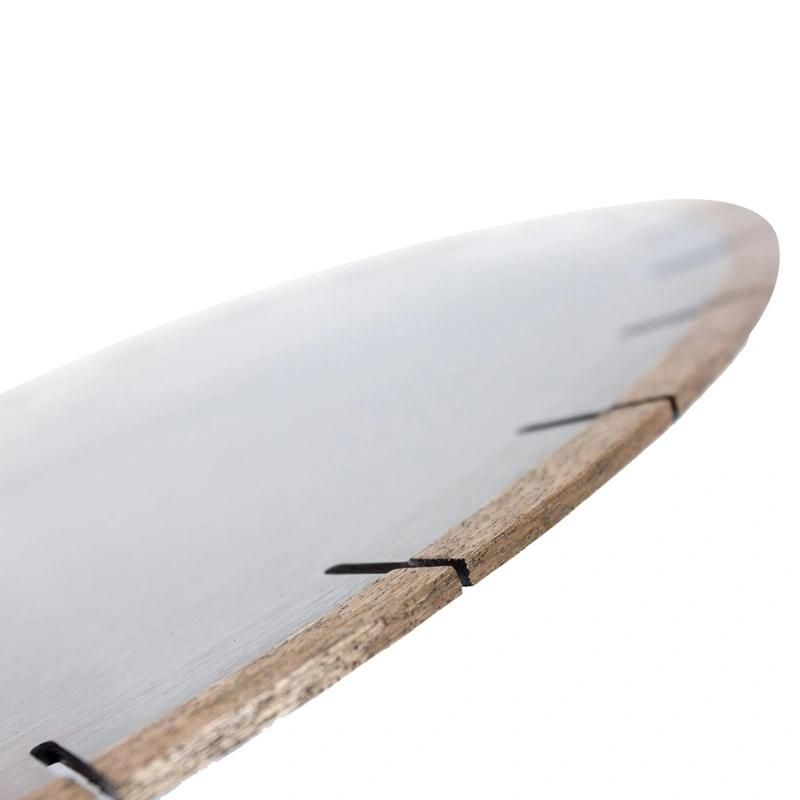

Block Cutting Segment For Marble
PRODUCT FEATURES:
1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long life span 2 Good cutting result:smooth cutting,flat surface and even size 3 stable cutting,narrow cutting gap,stone waste reduction


Diameter(mm)	Steel core(mm)	Head size(mm)	Segment Number	Shape	Application
900	5.0	24×7.5×10(13)	64	Z(straight)	marble
1000	5.0	24×7.5×10(13)	70	Z(straight)	marble
1200	5.5	24×8.0×10(13)	80	Z(straight)	marble
1400	6.0	24×8.5×10(13)	92	Z(straight)	marble
1600	7.0	24×9.5×10(13)	108	Z(straight)	marble
1800	7.5	24×10×10(13)	120	Z(straight)	marble
2000	8.0	24×11×10(13)	128	Z(straight)	marble
2200	8.0	24×11×10(13)	132	Z(straight)	marble
2500	9.0	24×12.5×10(13)	140	Z(straight)	marble
2700	9.0	24×12.5×10(13)	140	Z(straight)	marble
3000	9.3	24×13×10(13)	160	Z(straight)	marble



Diameter(mm)	Steel core(mm)	Head size(mm)	No.	Shape	Application
300	2.2	43/40×3.2×10	21	RF	Marble
350	2.2	43/40×3.2×10	24	RF	Marble
400	2.6	43/40×3.6×10	29	RF	Marble
450	3.0	42/40×4.0×10	32	RF	Marble

Other specifications are available upan request.
Silent and non-silent blades are available for choice.

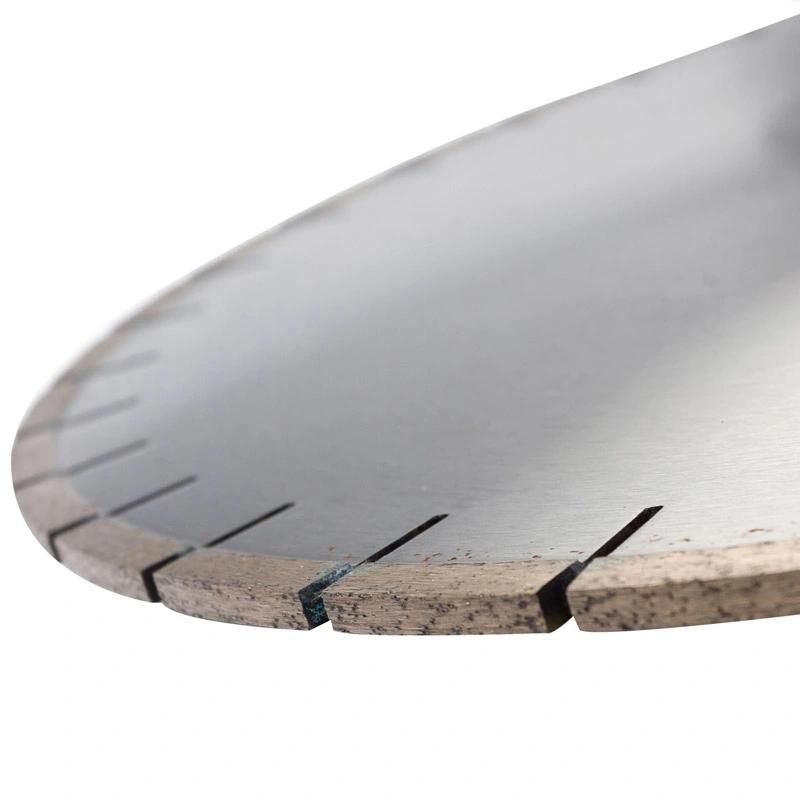

Block Cutting Segment And Blade For Granite
PRODUCT FEATURES:
1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan 2 Good cutting result:smooth cutting,flat surface and even size 3 Stable cutting,narrow cutting gap,stone waste reduction 4 M-Shape segment is easy for diamond opening

Diameter(mm)	Steel core(mm)	Head size(mm)	No.	Shape	Application
900	5.0	24×7.0/6.2×13(15,20)	64	Z3T/Z3T-M (conical)	Granite
1000	5.0	24×7.0/6.2×13(15,20)	70	Z3T/Z3T-M (conical)	Granite
1200	5.5	24×7.4/6.6×13(15,20)	80	Z3TZ3T-M (conical)	Granite
1400	6.0	24×8.0/7.2×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1400	6.5	24×8.4/7.6×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1600	7.2	24×9.2/8.4×13(15,20)	108	Z3T/Z3T-M (conical)	Granite
1800	7.5	24×10/9.2×13(15,20)	120	Z3T/Z3T-M (conical)	Granite
2000	8.0	24×11/10×15(20)	128	Z3T/Z3T-M (conical)	Granite
2200	9.0	24×11/10×15(20)	132	Z3T/Z3T-M (conical)	Granite
2500	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
2700	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
3000	9.3	24×13/12×20(30)	160	Z3T/Z3T-M (conical)	Granite
3500	9.5	24×13.5/12.5×20(30)	180	Z3T/Z3T-M (conical)	Granite



Diameter(mm)	Steel core(mm)	Head size(mm)	No.	Shape	Application
400	2.6	40×3.8×10	28	GENERAL SPLITTING	Marble
450	3.0	40×4.2×10	32	GENERAL SPLITTING	Marble
500	3.0	40×4.2×10	36	GENERAL SPLITTING	Marble
550	3.6	40×5.0×10	40	GENERAL SPLITTING	Marble
600	3.6	40×5.0×10	42	GENERAL SPLITTING	Marble
650	4.0	40×5.5×10	46	GENERAL SPLITTING	Marble
700	4.0	40×5.5×10	50	GENERAL SPLITTING	Marble
750	4.0	40×5.5×10	54	GENERAL SPLITTING	Marble
800	4.5	40×6.0×10	57	GENERAL SPLITTING	Marble
850	4.5	40×6.0×10	58	GENERAL SPLITTING	Marble

Other specifications are available upan request.
Silent and non-silent blades are available for choice.
