105mm Sinter Hot-Pressed Turbo Cutting Disc with Deep Segments/Diamond Tool/Cutting Disc
Pinghu Kaixin Plastic Industry Co., Ltd.- Blade Type：Turbo Segment & Protective Segments
- Manufacturing Process：Sintered
- Application：Stone
- OEM Service：Acceptance
- Suitable：Wet and Dry Cutting
- Transportation：Ocean, Land, Air
Base Info
- Model NO.：STBC
- Certificate：En13236
- Abor：22.23mm
- Segment Width：9mm
- Transport Package：Carton
- Specification：105x9x22.23mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82023910
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. STBC Certificate En13236 Abor 22.23mm Segment Width 9mm Transport Package Carton Specification 105x9x22.23mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 10000PCS/MonthProduct Description

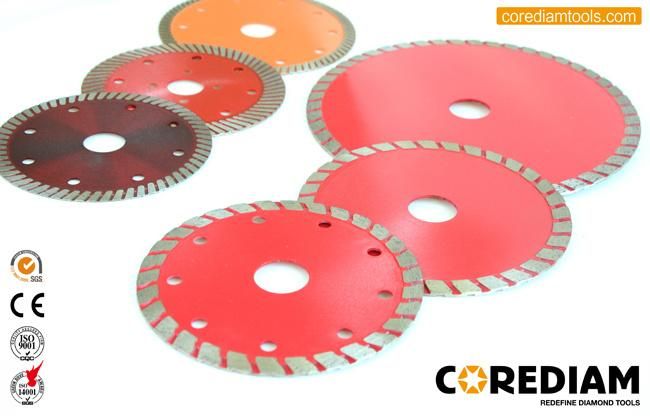

1. IntroductionThis cutting blade is sinter hot-pressed. The diameter of this turbo type blade is 105mm, the segment height is 9mm,
Turbo segments for better cooling and better dust removal, the deep segments can well protected the blades from undercutting. It can be widely used in wet cutting granite, marble and other stone materials with good efficiency.
This type blade is with wave steel core.
2. Cutting materials & equipment
Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw
3. Features:
- Universal dry and wet cutting blades.
- Turbo segment for better cooling and better dust removal,the deep segment style can well protected the blades from undercutting.
- The wave steel core improves blade rigidity, reduces friction, avoids wobbling during cutting and is better removal of filings.

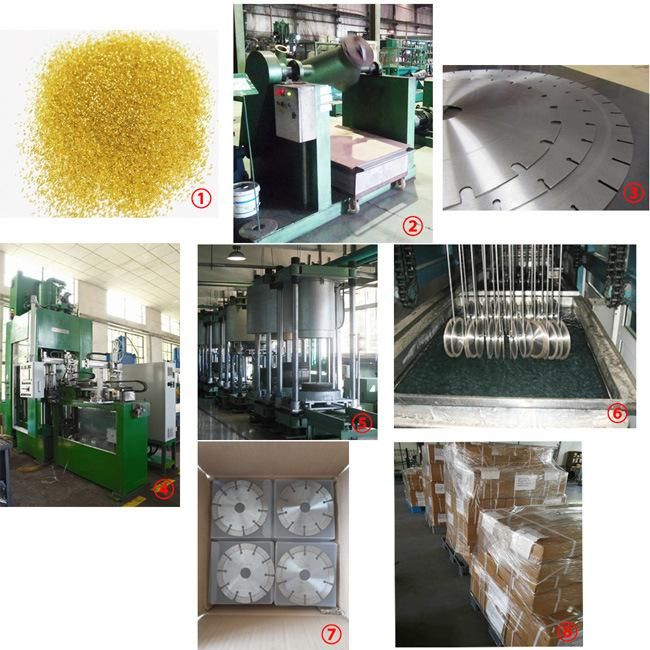

4. Production process.
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch
5. Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
Specification for reference: (others also availiable as per required)
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| STBC10509 | 105mm | 9mm | 2.2mm | 22.23mm |
| STBC11509 | 115mm | 9mm | 2.2mm | 22.23mm |
| STBC12509 | 125mm | 9mm | 2.2mm | 22.23mm |
| STBC15009 | 150mm | 9mm | 2.2mm | 22.23mm |
| STBC18009 | 180mm | 9mm | 2.5mm | 22.23mm |
| STBC23009 | 230mm | 9mm | 2.7mm | 22.23mm |
| STBC30012 | 300mm | 12mm | 3.0mm | 25.4mm |
| STBC35012 | 350mm | 12mm | 3.0mm | 25.4mm |
