Eaton Hydraulic Motor High Speed Omp Hydraulic Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：GS, CE, ISO9001
- Excitation Mode：Excited
- Number of Poles：4
- Speed：Low Speed
- Structural：Hydraulic Cycloid Motor,Hydraulic Orbit Motor
- Usage：Hydraulic Oil
Base Info
- Model NO.：OMP 36~OMP500
- Material：Cast Iron
- Flow Distribution：Axial Distribution Type
- Shaft Type：Parallel Key,Splined Tooth
- Diameter of Shaft：25mm,32mm,25.4mm,31.75mm,28.56mm Staright
- Flange Type：Rhomb-Flange,Square-Flange
- Application：Medium and Low Duty Tasks
- Place of Origin：Guangdong, China (Mainland)
- Stock：Rich
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：ISO9001
- Trademark：Blince
- Origin：Guangdong, China (Mainland)
- HS Code：8412291000
- Production Capacity：1000 Sets Per Month Meet Your Requirment
Description
OMP Series Orbital Hydraulic Motor
ModelOMP36,50,80,100,125,160,200,250,315,400,500 Mounting Flange: 1)Flange: 2 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
2)Flange: 4 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
3)Flange: 4 bolts 3/8-16 Square-flange, pilot Ø 44.4× 2.8
4)Flange: 4 bolts M10 Square-flange, pilot Ø 44.4× 2.8 Output Shaft: 1)Shaft: Shaft Ø 25, parallel key 8X7X32
2)Shaft: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
3)Shaft: Shaft Ø 25.4, splined tooth SEA 6B
4)Shaft: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
5)Shaft: Shaft Ø 32, parallel key 10X8X45
6)Shaft: Shaft Ø 31.75, splined tooth 14-DP12/24
7)Shaft: Long shaft Ø 31.75, splined tooth14-DP12/24
8)Shaft: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
9)Shaft: Cone shaft Ø 28.56, parallel key B5X5X14
10)Shaft: Cone shaft Ø 31.75, parallel key 7.96X7.96X25.4 Port and drain port: 1) G1/2 Manifold Mount 4× M8, G1/4
2) M22× 1.5 Manifold Mount 4× M8, M14× 1.5
3) 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
5) PT(RC)1/2 Manifold 4xM8, PT(RC)1/4 Rotary direction Standard
Reverse
OtherSpecial function
Related Products:

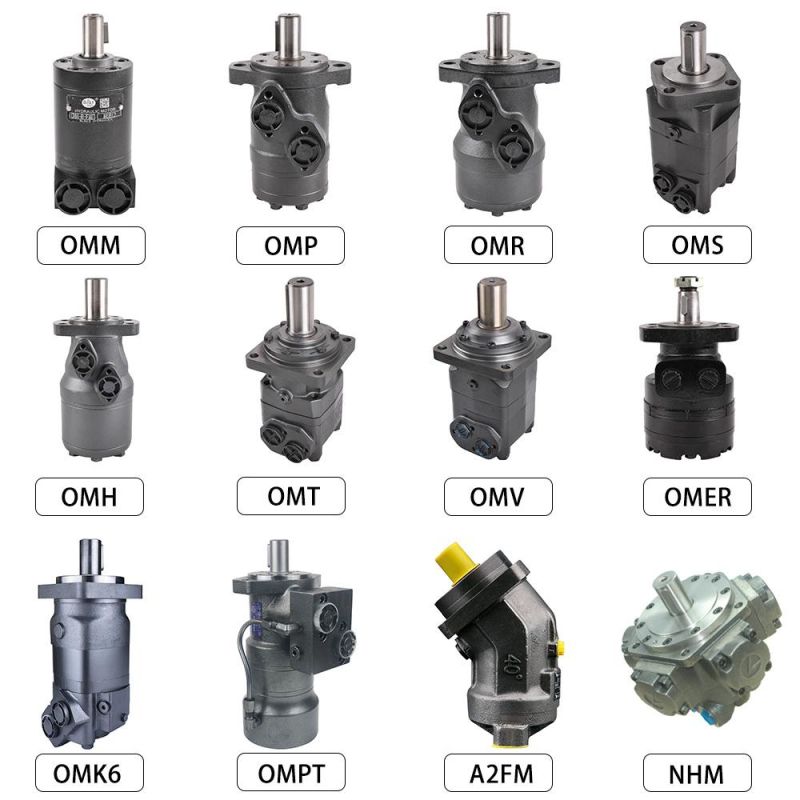

BLINCE hydraulic motor can substitue for:
Sauer-Danfoss orbit motor OML/ OMM/OMP/ OMR/ OMH/ OMEW/ OMS/ OMT/ OMV
White orbit motor WP/WG/WR/RS/DR/RE/CE/HB/WS/D9 series
Parker orbit motor OMP/TC/TB/TE/TH/TF/TL/TG/OMS/OMT
Eaton Char Lynn orbit motor J/JH/JS/2K/6K/J6K/10K
M+S orbit motor MLHM/MP/MR/MH/MS/MT/MV
SAM orbit motor BG/BR/BS/AR/HR/HT
Brevini orbit Motor BG Series
