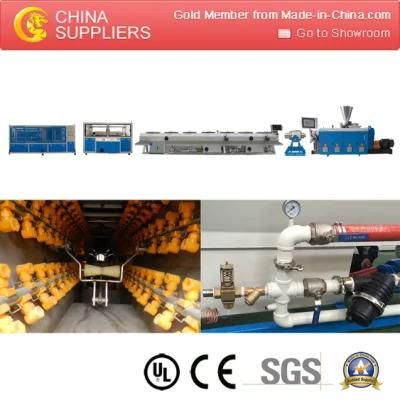

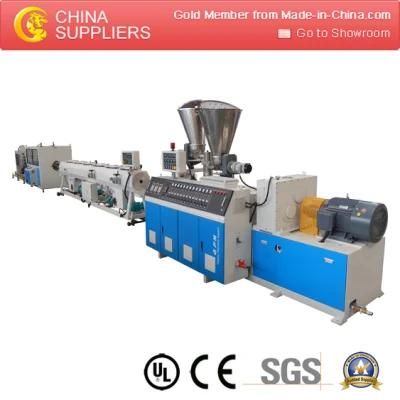

SPECIFICATIONS FOR PVC SINGLE WALL CORRUGATED  PIPE EXTRUSION LINE        ModelPipe spec(mm)Conical twin screw extruder Max.output
(kg/h)Total power(kw)GWG63-PVCΦ20-Φ63GSZ65/132180-300104GWG160-PVCΦ63-Φ160GSZ65/132180-300105GWG250-PVCΦ75-Φ250GSZ80/156300-450110GWG315-PVCΦ200-Φ315GSZ80/156300-450216GWG450-PVCΦ200-Φ450GSZ92/188650-750290GWG630-PVCΦ315-Φ630GSZ92/188750-850350GWG800-PVCΦ500-Φ800GSZ135/31950-1100410

NO.	Equipment	Qty.	Remark

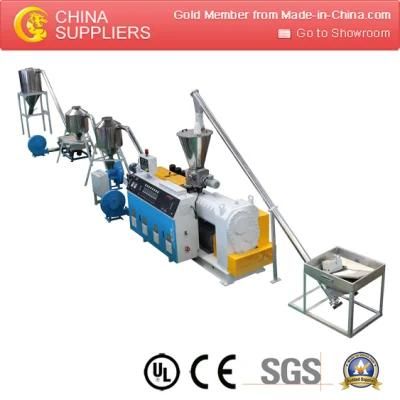

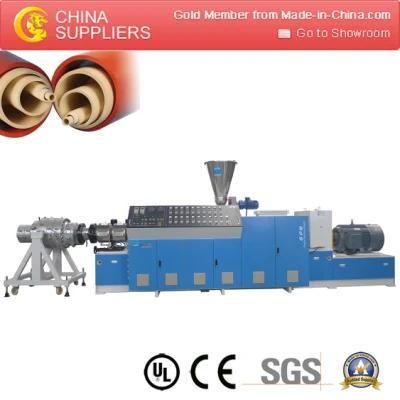

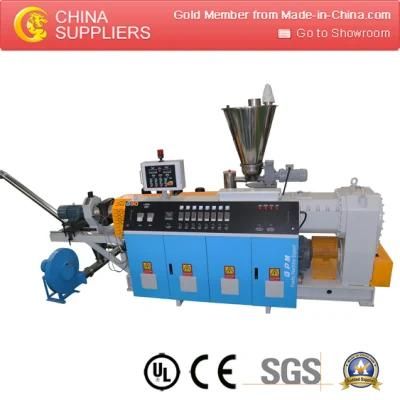

1	GSZ65/132 conical Twin-Screw Extruder	1set
2	Mould(including heater and calibrator)	1set
3	Vacuum Tank	1 set

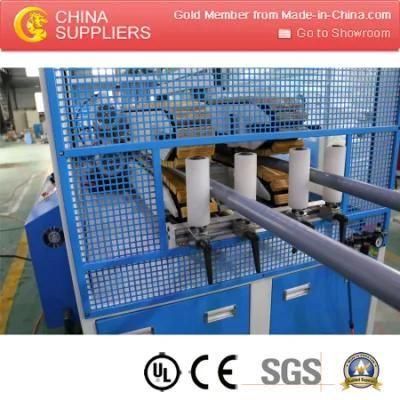

4	Three claws Haul-off unit	1set
5	Saw Cutter	1set
6	Stacker	1set
7	Electric Control System	1et
8	Spare Parts	1set



Spare part List

for extruder:

No.	Spare Parts	Qty
1	Thermal couple	5pcs
2	Dismantling tools for screw	1set
3	Thermometers	5pcs
4	Oil seal for gearbox	1pcs

for mould

No.	Spare Parts	Qty
1	Heating circle of the mouth die	1sets
2	Dismantling tools for dies	1set
3	Adapter for heater	5pcs
4	Wire for mould	20m

For down stream equipment

No.	Spare Parts	Qty
1	Rubber block	10pcs
2	Nozzle for tanks	10pcs
4	Cloth bag	22pcs
5	Contactor	33pcs
6	Button	22pcs
7	Potentiometer	44pcs
8	φ8,φ10 tube	30m
9	φ8,φ10 three-port valve	3pcs
