Basic Info.
Model NO. PE-110/600 Condition New Extruder Sj-75/33 Produce Speed 1-6m/Min Output Capability 300-350kg/H Transport Package Wooden Pallet/Plastic Film Specification pipe dia. 110-600mm Trademark Huashida Origin Qingdao HS Code 84772090 Production Capacity 100sets/YearProduct Description

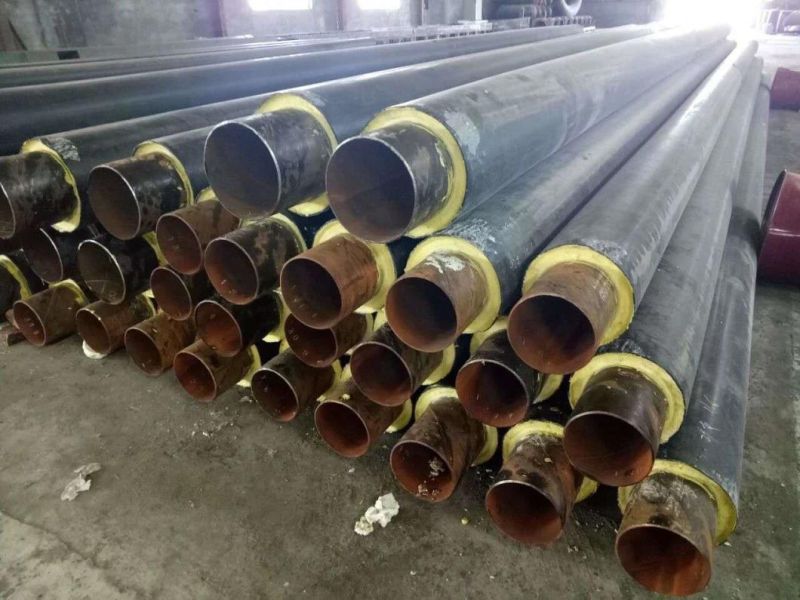

110-600mm HDPE jacket casing extruder line for PU foam insulation pipeModel: 110-600mm
Raw material & formulation: HDPE pellets
Total length of the line: 36m
Total power : about 160KW
Output capability: 300-350kg/h
Introduction:HDPE PU Foam Thermal Pre-insulated thin wall Pipe Extrusion Line. is a high efficiency equipment with high speed
and energy saving which is developed by Qingdao Huashida Machinery Co.Ltd., PU foam Pre-insulated Pipe Extrusion line
is easy to operate with automatic control system and has long service life.
Main machine line composed
| No. | Name | Qty. |
| 1 | Hopper dryer & vacuum loader | 1set |
| 2 | SJ75/33 High-efficiency Single Screw Extruder | 1set |
3 | Die head & Mould & Calibrator | 1set |
| 4 | Vacuum calibration tank 6000mm | 1set |
| 5 | four-caterpillar Haul-off | 1set |
6 | Planetary cutting machine(Including dust catching device & ellipse correction) | 1set |
| 7 | Stacker | 1set |
| 8 | PLC central controlling system | 1set |

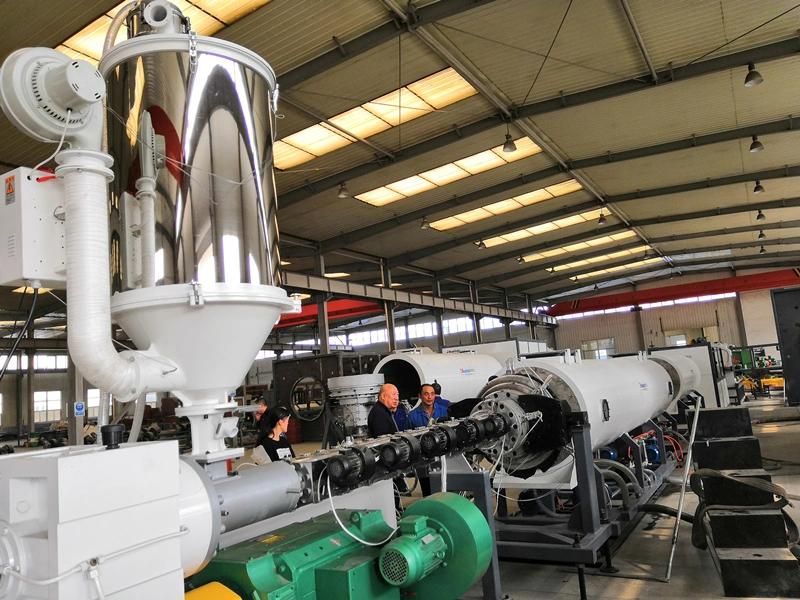

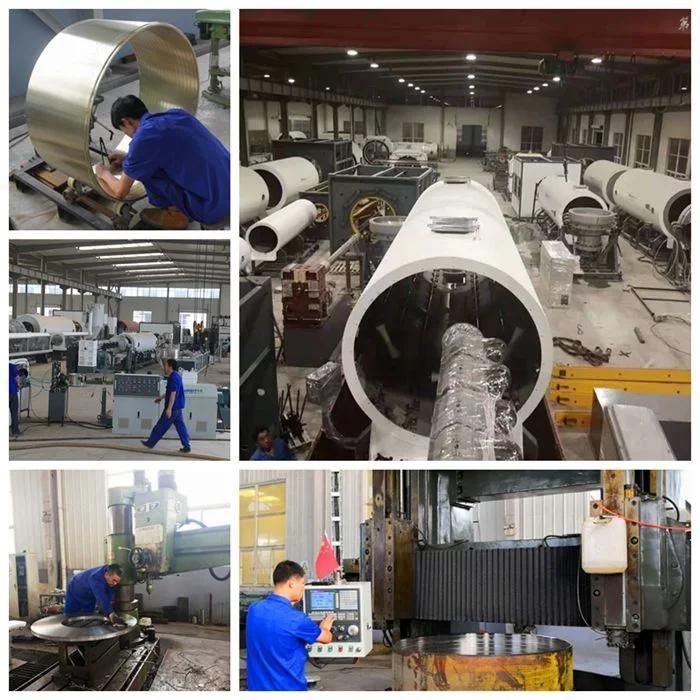

WORKSHOP
Client Visiting

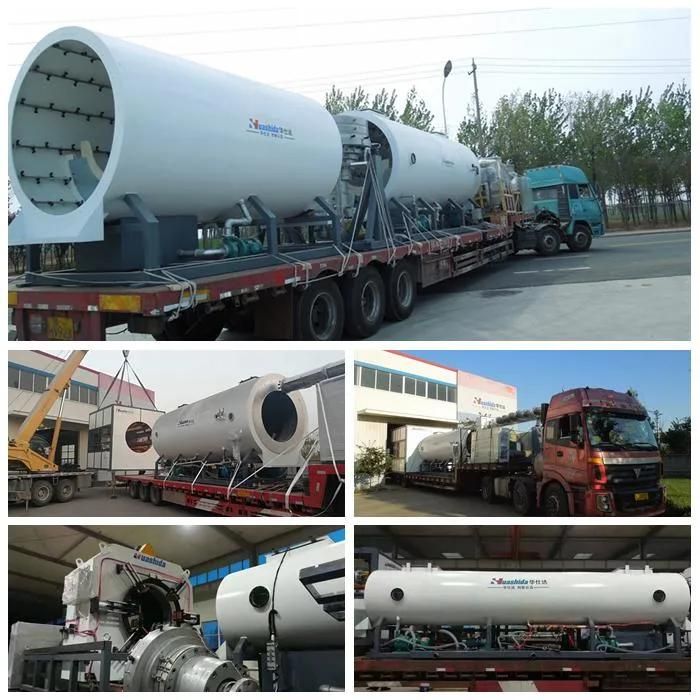

Delivery
Certification
Welcome you contact us to know more detail !
