• Model NO.：GD150Q
• Transport Package：Wooden Packing
• Specification：9M
• Trademark：SHINWEI
• Origin：Shanghai, China(Mainland)
• Production Capacity：150kg,H

Model

GD150Q

GD300Q

GD450Q

Production Capacity( kg/h)

150

300

450

Rated Depositing Times(n/min)

20~25

20~25

20~25

Weight Of Each Candies(g):

1. Two Colors

2. Single Color

2g~6g

1.5g~6g

2g~6g

1.5g~6g

2g~6g

1.5g~6g

Electric Power Needed

8kw/380V

12kw/380V

16kw/380V

Refrigerator

MT160 x1

15,000 kcal/h

10.5kw

MT160x2

30,000kcal/h

21kw

MT160x2

30,000kcal/h

21kw

Compressed Air Consumption

Compressed Air Pressure

0.20m³/min

0.4-0.6 Mpa

<![if !supportLists]>0. <![endif]>25m³/min

0.4-0.6 Mpa

<![if !supportLists]>1. <![endif]>25m³/min

0.4-0.6 Mpa

Conditions Needed For

 The Cooling System:

1.Room Temperature(ºC)

2.Humidity (%)

20~25

55

20~25

55

20~25

55

Conditions Needed For

The Cooling System:

1.Room Temperature(ºC)

2.Humidity (%)

20~25

55

20~25

55

20~25

55

Length Of The Whole Line(m)

9m

11m

15m

Gross Weight(Kgs)

Approx.3000

Approx.4000

Approx.5000

Flow Chart:

Sugar and gelatin dissolving→mixing→cooling→transporting→depositing →cooling →de-moulding →following disposalà packing

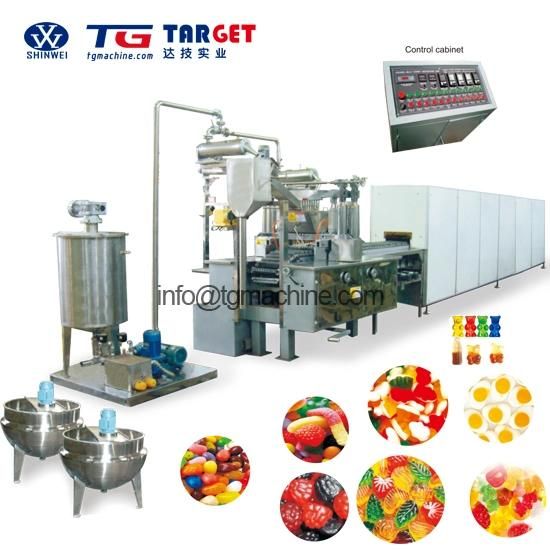

Machine Pictures:

Wooden Packing:

1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement

Why Choose Us?

• Near 40 years experience in food processing machinery production, established in 1982.

• We are manufacturer and wholesale of dough kneading machine

• We adopt environment-friendly materials and technology

• We mainly sell stock in bulk. OEM orders are welcome

•  We can accept the mix order

 Your Feedback Is Expected Sincerely!
