ModelBlades(mm)
Crushering Chamber dimension (kw)
Power Blow motor power (r/min) (mm)
Mesh-screen (mm)
Dimension (kg)
WeightFixedRotating-A-BQG30362×23×6 360×2627.51.5650¢81167x2055x1635850QG35422×23×7 420×280111.5650¢81390x2120x17701000QG40502×23×8 480×360151.5530¢101635x2255x18601250QG40602×23×10 600×360221.5530¢101635x2400x18601580QG40802×23×11 660×420302.2530¢101850x2550x19202050QG50802×23×12 720×520374410¢122150x2650x25003350
Machine parts:
Blade
the blade are made of imported high quality SKD-11, featuring wearability, high rigidity, long service life and reusable after sharpening.

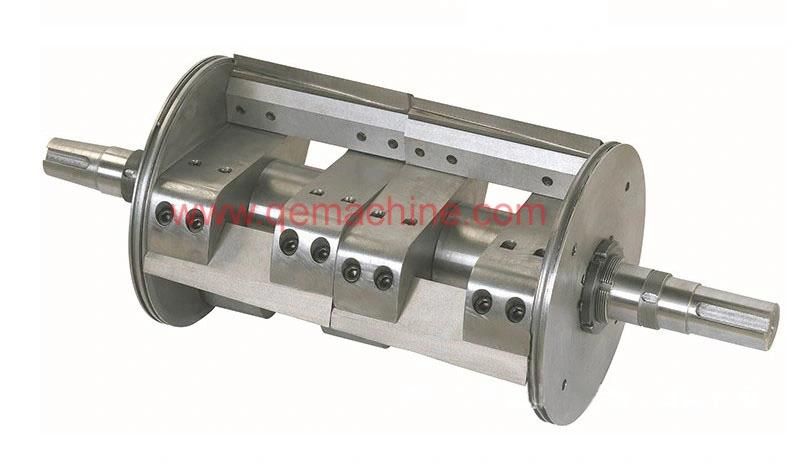

Claw type blade

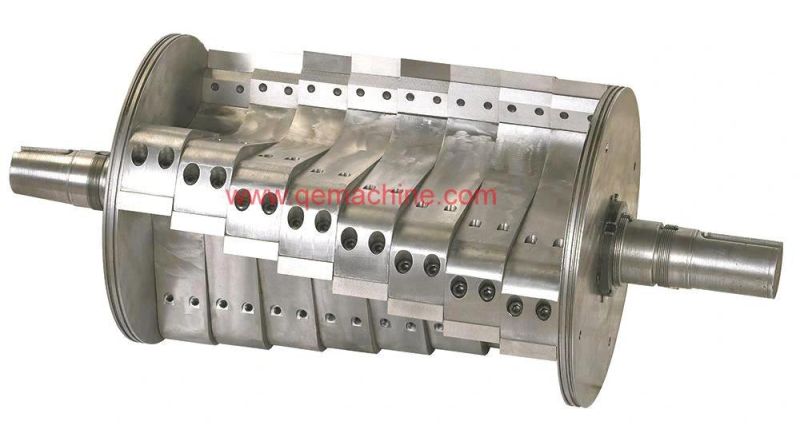

Paddle type blade

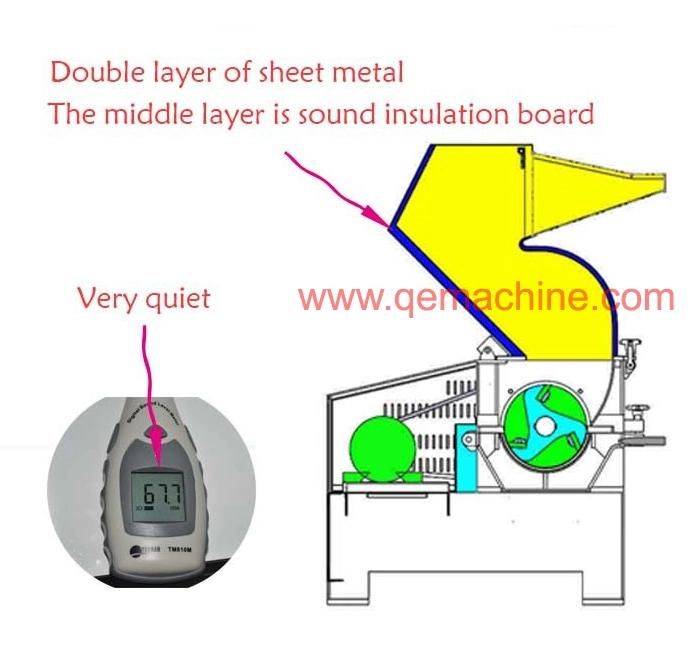

Hopper
Three sound-proof layers keep noise level low and include stainless steel layer in contact iwth material.


Water cooling
QE3542 up granulators cooling pipe at rear plate of cutting chamber can effectively cool down and prevent the inside material from meliing up.
