Hot Sales Steel Crawler Separated DTH Surface Drill Rig Manufacturer
Kunshan Hexin Precise Machinery Co., Ltd.Base Info
Description
Diesel Engine Specifications
Rig Model
Engine Model
Rated Power
HW420
Yuchai YC4DK80
58 KW
HW420-1
Yuchai YC4A100
73.5 KW (Dust collection system as
standard equipment)
General Specifications
Hole Depth
30m
Drill Pipe Sizes
76 X 3,000 mm
Drill Pipe Dia
110-140 mm
Equipped Hammer
4''/5''
Rotation Torque (Max.)
3200 N.m
Rotation Speed
60 -120 rpm
Working Pressure
0.7 - 2.5 Mpa
F.A.D
8 - 20 m3/min
Feed Force
20KN
Pull Up Force
45KN
Feed Type
Chain / Cylinder
Tramming Speed (Max.)
3 km/h
Gradient
25°
Track Frame Oscilation
±10°
Total Weight
4700Kg/5280 kg
Transportation Dimensions
5,100 X 2,324X 2,550 mm
Dry Dust Collector
Option

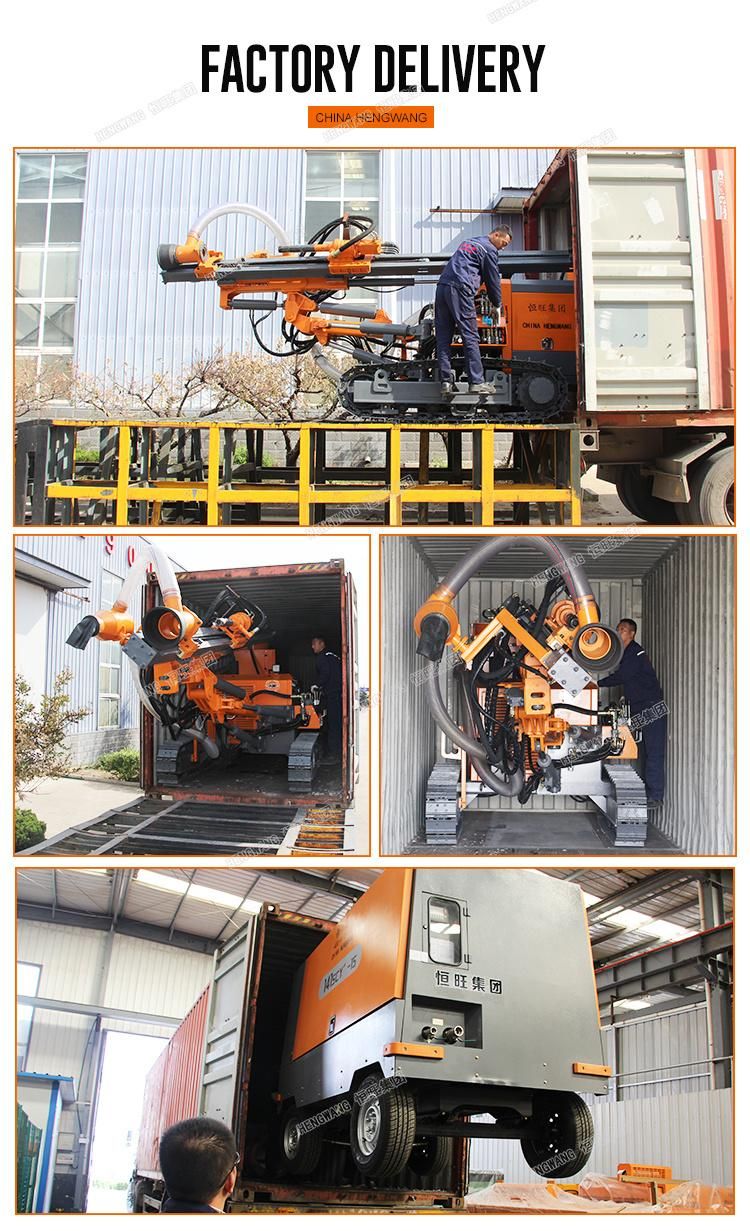

The shipping details about the blasting hole drill rig
