Tractor Mounted Water Well Drilling Machine Td100
Zhejiang Labo Machinery Group Co., LtdBase Info
Description
DescriptionTD100 Geology drilled F=6-14 Drill depth 0-120 m Drilling Diameter 90 - 180mm Drill system and operation Hydraulic Rig assembly 1 complete unit, Tractor driven Mobility 4 wheel tractor Drill pipe (diameter x length) 60/73*1500mm Mud pump(Optional) BW160 Foam pump Optional Weight 2200 kg Rotation & Feed System Top head drive by a hydraulic cylinder through heavy duty chain. Rotation torque 1400 N-m Speed 60-120 rpm Head travel 1.95 meter Pull-up capacity 7700 kgs Pull-down Capacity 5000 kgs Pull-up speed-slow feed 1.22 meter/min Pull-up speed-rapid feed 12.26 meter/min Pull-down speed-slow feed 0-1.88 meter/min Pull-down speed-rapid feed 0- 16.90 meter/min Tractor 4x2 tractor Power 24KW Drill Pipe Drill pipe length 1.5 meter Drill pipe diameter 60/73 mm Thread 2 3/8 REG API Mud pump(Optional) Flow capacity 160 liter/min Max. working pressure 40 bar Hydraulic System Hydraulic tank capacity Stabilizing Jack Type Hyseaulic Stroke 350 mm Air System Lubricator of venturi-type for down-the-hole drills. Max. pressure 25 bar Oil tank capacity 25 bar Oil tank capacity 4 liter Dimensions Overall length 3150 mm Overall width 1200 mm Overall height 2150 mm

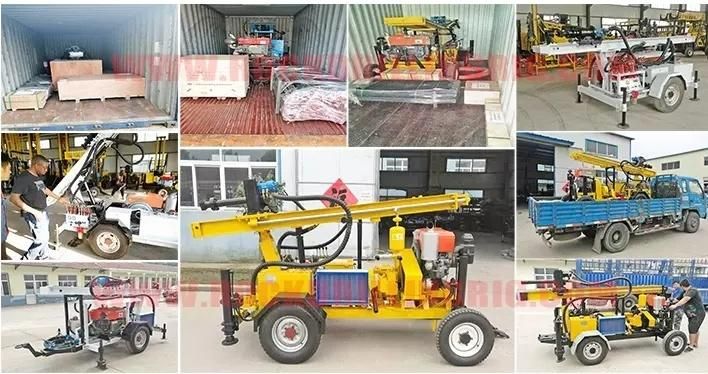

Package and delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Company profile
Jincheng provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JINCHENG" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
Certificate
FAQ
Q1. Is it a reliable company?
Beijing Jincheng Mining Technology Co.,Ltd is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.
Q2: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q3: What's the delivery time?
7-25 days after received your payment.
Q4: What's the package?
Strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.
Q6: What's the payment method?
T/T, WESTERN UNION, MONEYGRAM
Q7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.
