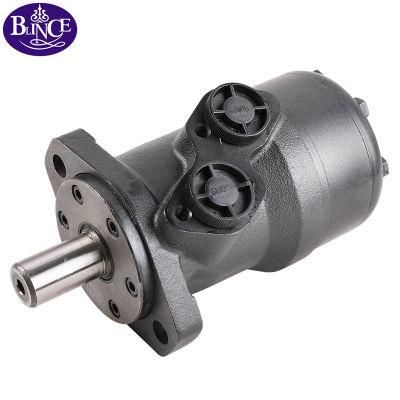

OMR 160 High Speed Used Outboard Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：CE, ISO9001
- Casing Protection：Protection Type
- Speed：High Speed
- Type：Hydraulic Motor
- Code：OMR 160cc
- Max Speed：378rpm
Base Info
- Model NO.：OMR160
- Max Torque：360n.M
- Output Shaft：25mm,32mm,25.4mm Parallel Key, Splined Key
- Mounting Type：Flange Mounting
- Flange：Circle-Flange, Rhomb-Flange
- Motor of Material：Cast Iron
- Application：Used Outboard Motor
- Fuel：Hydraulic Oil
- Item：Hydraulic Power Unit
- Transport Package：Sale Packing Contians Carton or Wood Case
- Specification：CE ISO
- Trademark：Blince
- Origin：Guangdong, China (Mainland)
- HS Code：8412291000
- Production Capacity：100000 PCS,Year
Description
OMR Series Orbital Hydraulic Motor
ModelOMR36,50,80,100,125,160,200,250,315,400 Mounting Flange: 2 Flange: 2 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
4 Flange: 4 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5*8
H4 Flange: 4 bolts 3/8-16 Square-flange, pilot Ø 44.4× 2.8
H5 Flange: 4 bolts M10 Square-flange, pilot Ø 44.4× 2.8 Output Shaft: A Shaft: Shaft Ø 25, parallel key 8X7X32
B Shaft: Shaft Ø 32, parallel key 10X8X45
C Shaft: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
E Shaft: Shaft Ø 25.4, splined tooth SEA 6B
R Shaft: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
F Shaft: Shaft Ø 31.75, splined tooth 14-DP12/24
FD Shaft: Long shaft Ø 31.75, splined tooth14-DP12/24
G Shaft: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
T Shaft: Cone shaft Ø 28.56, parallel key B5X5X14 Port and drain port: D port: G1/2 Manifold Mount 4× M8, G1/4
M port: M22× 1.5 Manifold Mount 4× M8, M14× 1.5
S port: 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
P port: 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
R port: PT(RC)1/2 Manifold 4xM8, PT(RC)1/4 Rotary direction Standard
Reverse
OtherSpecial function
Related Products:

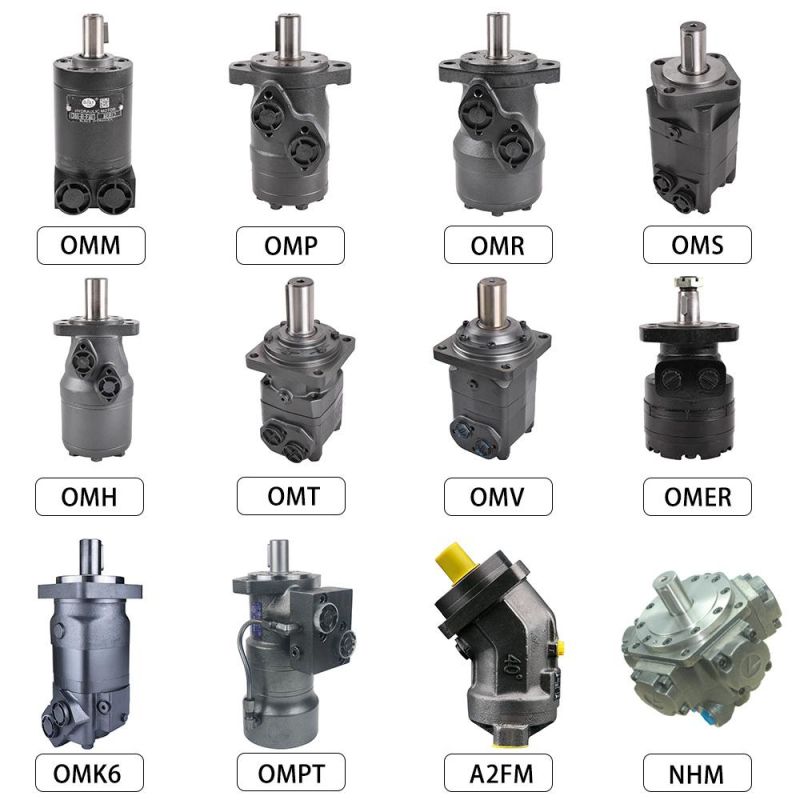

BLINCE hydraulic motor can substitue for:
Sauer-Danfoss orbit motor OML/ OMM/OMP/ OMR/ OMH/ OMEW/ OMS/ OMT/ OMV
White orbit motor WP/WG/WR/RS/DR/RE/CE/HB/WS/D9 series
Parker orbit motor OMP/TC/TB/TE/TH/TF/TL/TG/OMS/OMT
Eaton Char Lynn orbit motor J/JH/JS/2K/6K/J6K/10K
M+S orbit motor MLHM/MP/MR/MH/MS/MT/MV
SAM orbit motor BG/BR/BS/AR/HR/HT
Brevini orbit Motor BG Series
Japen OPN ORB-GS Series
