Basic Info.

Model NO. PVC Plastic Mixer Machine Customized Customized Condition New After-sales Service Engineer Commissioning Name PVC Material Mixer Machine Color Custom-Made Motor Siemens Inverters ABB Handle PP Pet Plastic Core Part PVC Extruder Feeding Type Screw Conveyor City Zhangjiagang Screw Type 38CrMoAl Material Transfer Screw Loader Machine Material Hard Steel Cutting Type Saw Temperature Control Omron Contactor Schneid Apply PVC Powder Material Mixing Transport Package Sea Packing Specification 125kg/h Trademark WEDO Origin China HS Code 847780000 Production Capacity 10 Sets

Product Description

PVC Plastic Mixer Machine for saleDescription of PVC Plastic Mixer Machine for sale
WEDO SRL Series Mixer Units are widely used in mixing, drying,colouring all kinds of resin such as PVC, PP,PE. They can also be used in dryness of ABS and polycarbonate, and mixing hydroxybenzene, aldehyde resin.
*The unit consists of one hot mixer and one cooling mixer. The materials from hot mixer get into the cooling mixer automatically to be cooled,so remained gas is eliminated, and agglomeration is avoided.
*Absorbing advanced foreign technology and PLC control system, we designed SRL-Z Series Heating/Cooling Mixing Unit, which offers high automatic level, good mixing effect, complete function, compact structure, and perfect appearance. The unit is widely used in mixing,drying and coloring various plastic

Characteristic of PVC Plastic Mixer Machine for sale
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increatig: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test

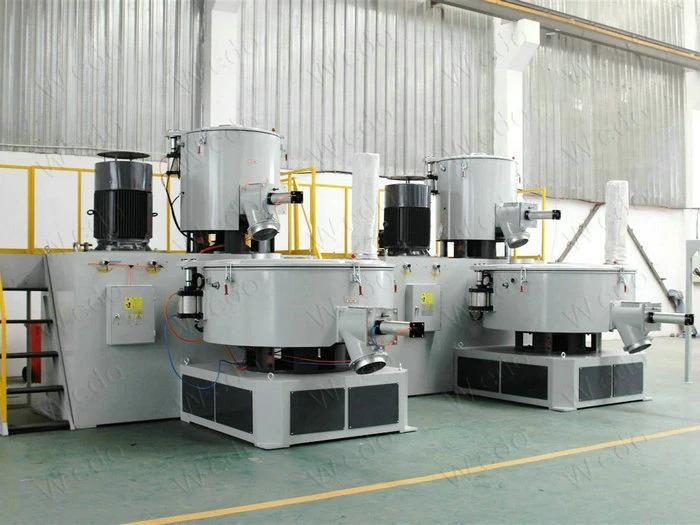

Photos of PVC Plastic Mixer Machine for sale

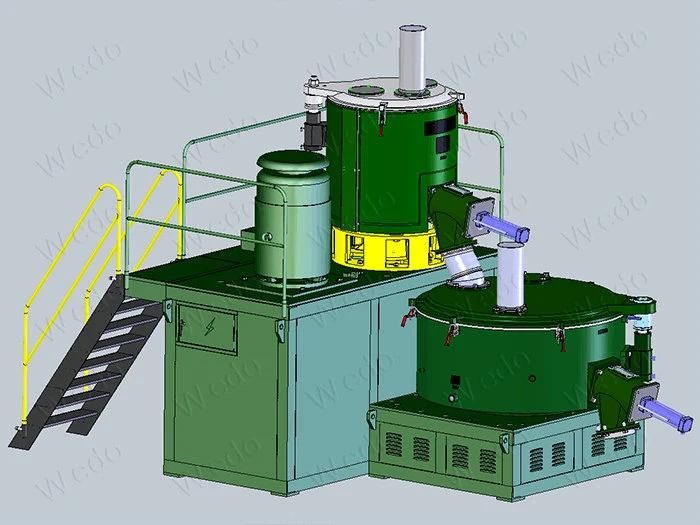

Drawing of PVC Plastic Mixer Machine for sale

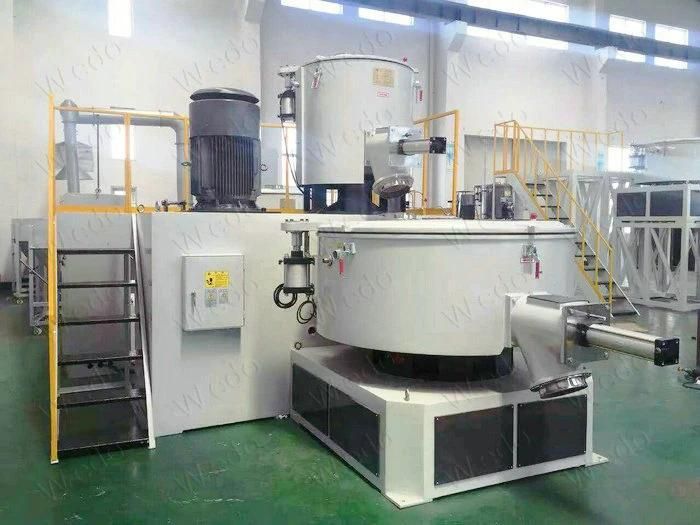

over view of PVC Plastic Mixer Machine for sale
drawing of the PVC Plastic Mixer Machine for sale
back of the PVC Plastic Mixer Machine for sale

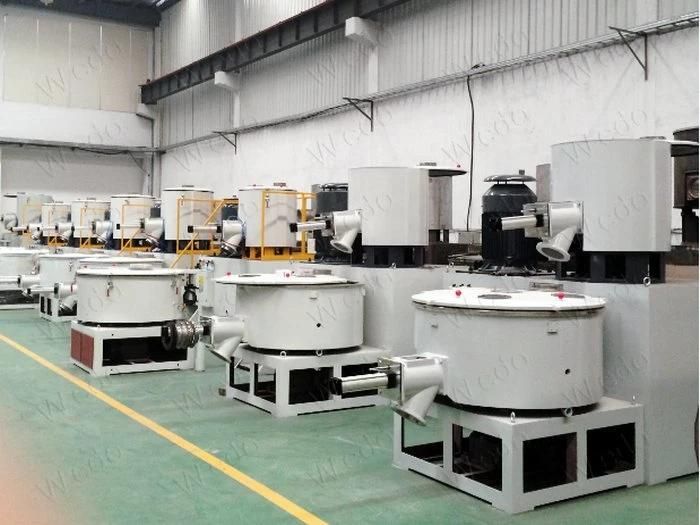

ready of PVC Plastic Mixer Machine for sale
wating for delivery of PVC Plastic Mixer Machine for sale
the paddle of PVC Plastic Mixer Machine for sale

Specification of PVC Plastic Mixer Machine for sale

Model	Total Volume(L)	Effective Volume(L)	Rate Of Stiring(R/Min)	Motor Power(Kw)	Heating Power/Cooling Medium	Unload Way	Weight (T)
SRL-WD 50/100	50/100	37/70	510/1013/118	7/11/7.5	2kw/water	pneumatic	2.8
SRL- WD 100/200	100/200	75/130	650/1300/130	14/22/11	6kw/water	pneumatic	3
SRL- WD 200/500	200/500	150/320	484/967/110	30/42/11	6kw/water	pneumatic	3.5
SRL- WD 300/600	300/600	225/384	480/964/100	40/55/11	9kw/water	pneumatic	3.8
SRL- WD 500/1000	500/1000	375/640	413/830/71	55/75/15	9kw/water	pneumatic	5.8

Application of High speed raw material PVC powder plastic mixer machine, hot and cold plastic mixer:
Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying. Typical application includes: production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites.

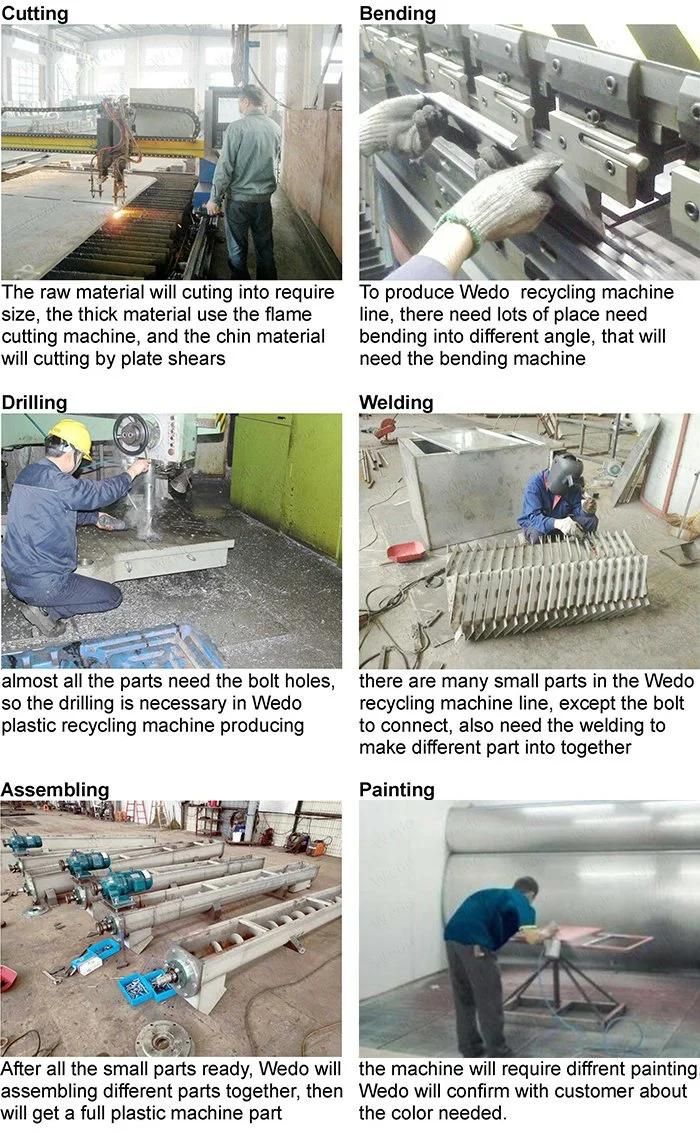

Wedo Produce steps:
Wedo have a fully step for the High speed raw material PVC powder plastic mixer machine, hot and cold plastic mixer producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in High speed raw material PVC powder plastic mixer machine, hot and cold plastic mixer




Any further about the PVC Plastic Mixer Machine for sale, hot and cold plastic mixer, please contact us timely we will give your professional fully support.
