Product Description

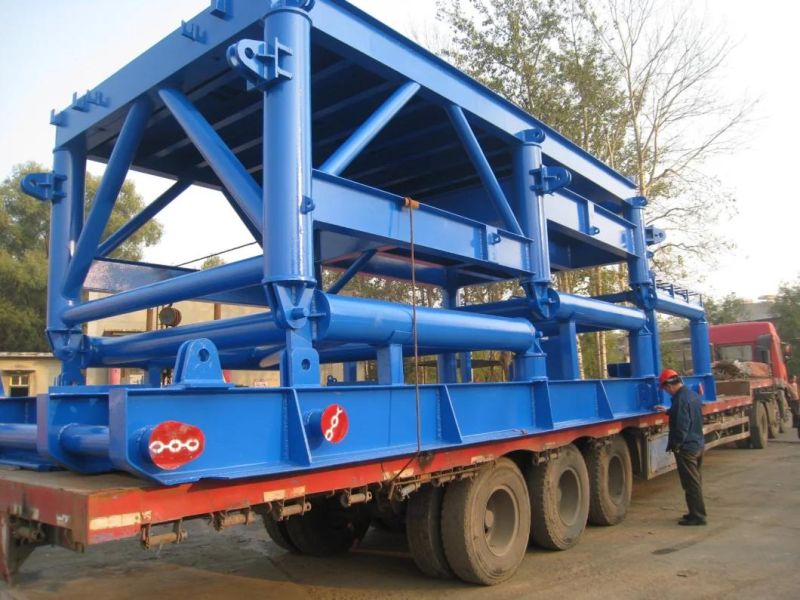

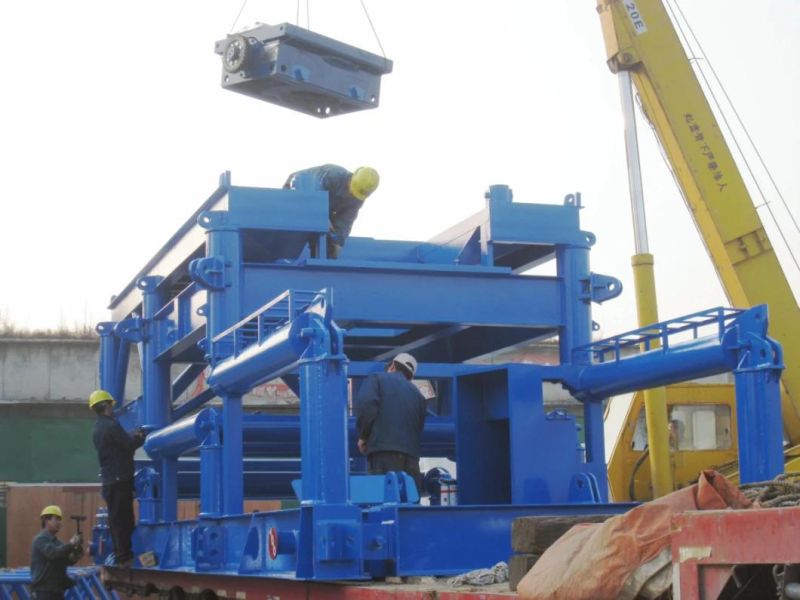

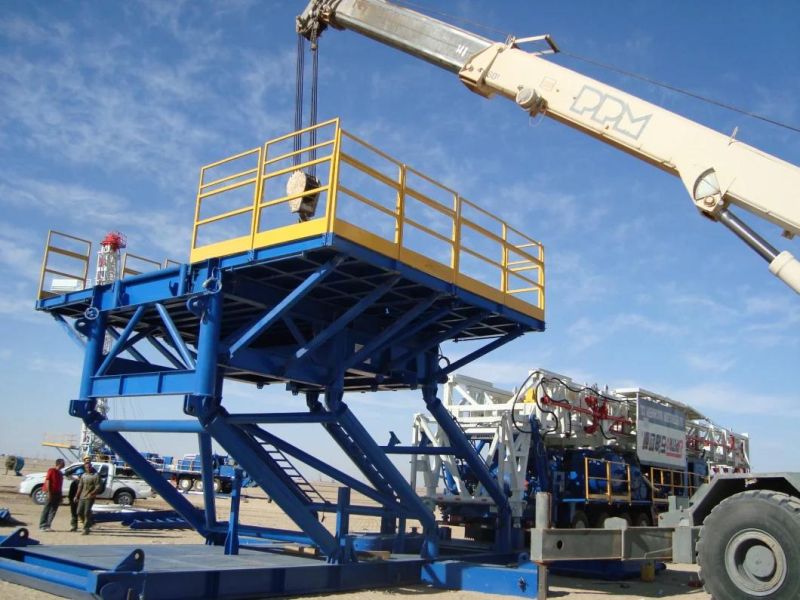

                                                                                                            Substructure
It is folding, parallelogram sturcutre;Six-pillar telescopic substructure, the rotary table surface is level with drill floor, a ladder is equipped from drill floor to ground and a ladder from main truck to drill floor, V-ramp, escaping slide. one set of ladder from drill floor to circulating tank is optional.It consists of two big tong tailrope device and one DP power tong tailrope device, and a trolley is equipped to install BOP.

Drilling floor height	6 m
drilling floor area(Length×width)	7.4m×7.5m
Structure	Parallelogram
Clear height	4.9 m  (ZP275matched with ZP275)
Shipping height	3.3 m
Max. rated clear load of rotary beam	2250 kN
Max. rated setback capacity	4000m(4 1/2" DP)
