• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

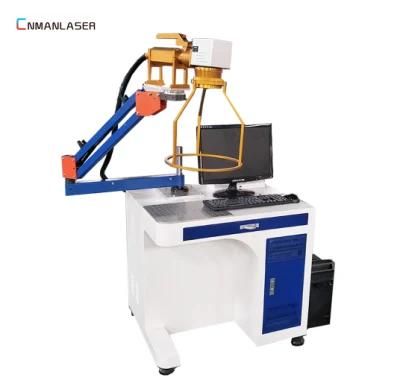

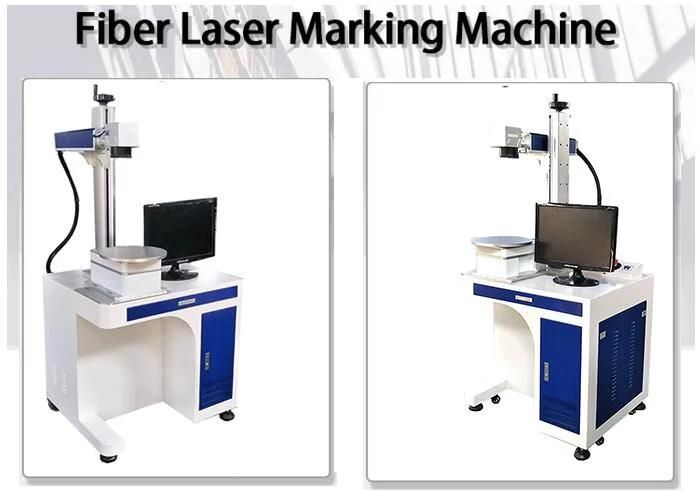

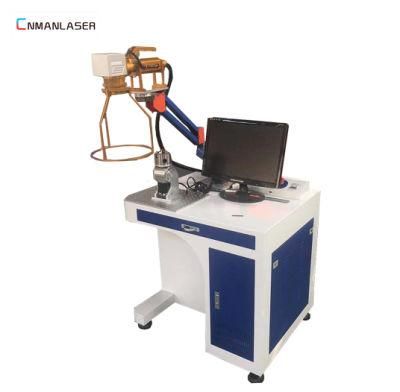

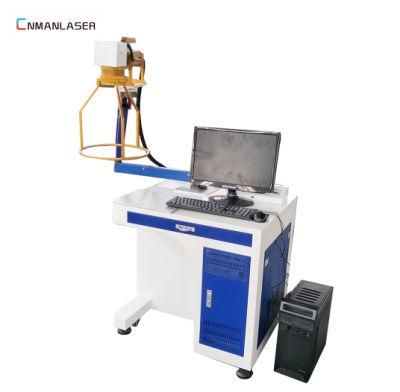

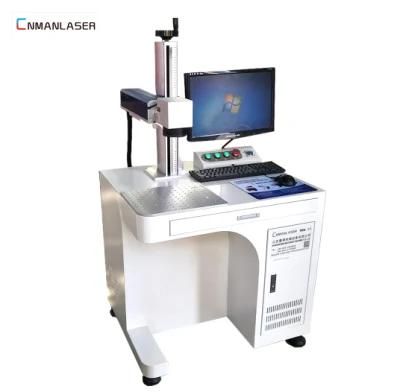

Easy Operating 20W 30W Desktop Design Laser Fiber Marking Machine

 PRODUCTION :




Standard main configurations:

Fiber Laser Marking

Pulse fiber lasers have become the preferred technology over traditional bulk lasers for marking and engraving applications.

Fiber lasers have the most application flexibility, the widest range of laser process capabilities,

and the ability to mark on the largest variety of materials.

Benefits

1. Optical Fiber Laser, easy operation and maintenance.

2. Laser source can use about 100000 hours.

3. The software compatible with PHOTOSHOP, CORELDRAW, AUTOCAD

4. Runs without consumable spare parts, perfect for continuous working.

5.Computer Requires: XP and Win7 (32 bit)

6. Offer training videos CD.

 TECHNICAL  PARAMETER :


Type	Fiber Laser Marking Machines
Table size	320*200mm
Material	Aluminum
Power	20w /30 w ( optional )
Laser wavelength	1060nm
Laser power	10W or 20W or 30W optional
Laser Type	pulsed or continuous
Marking depth	≤0. 5mm as the material may
Marking line speed	≤7000mm / s
Minimum characters	0.15mm
The minimum line width	0.012mm
Repeatability	Standard 100mmX100mm
Operating Life	laser Run> 100,000 hours
Dimensions	900*800*1150mm / 100kg
Work table	320 mm X 200 mm bearing 30 kg
Lifting heigh	lifting 550
Cooling system	Air cooling
Operating System	WinXP / Win7
Graphic Converter	CAD, CorelDRAW, CAXA
Environment	20 ° C-45 ° C, relative humidity 80%

Advantage :

1.High marking precision,quick marking speed,easy controlling of the engraving depth.

2.Large laser power,applying to the engraving and cutting on non-metal products.

3.No consumables,low cost---the service life is up to 20000-30000 hours.

4.Marking clearly,difficult to be abraded,high efficiency of engraving and cutting,environmental protecting, saving energy.

Marking software can be operated on WINDOWS platform, English interface,could be compatible with the file formate of

AUTOCAD,CORELDRAW,PHOTOSHOP, such as PLT,PCW,DXF,BMP and SHX,TTF font directly.

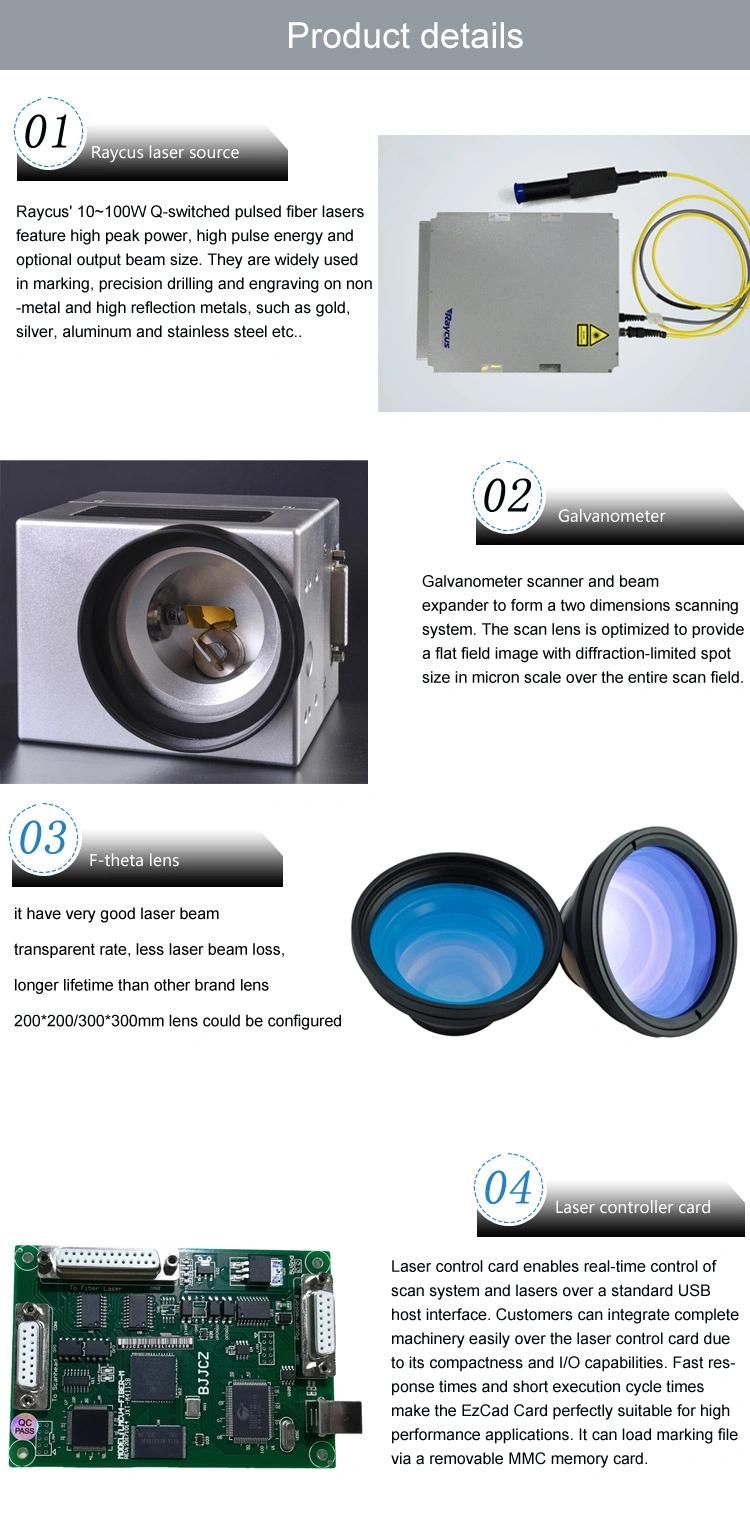

 DETAILS   IMAGES :


Standard laser parts :

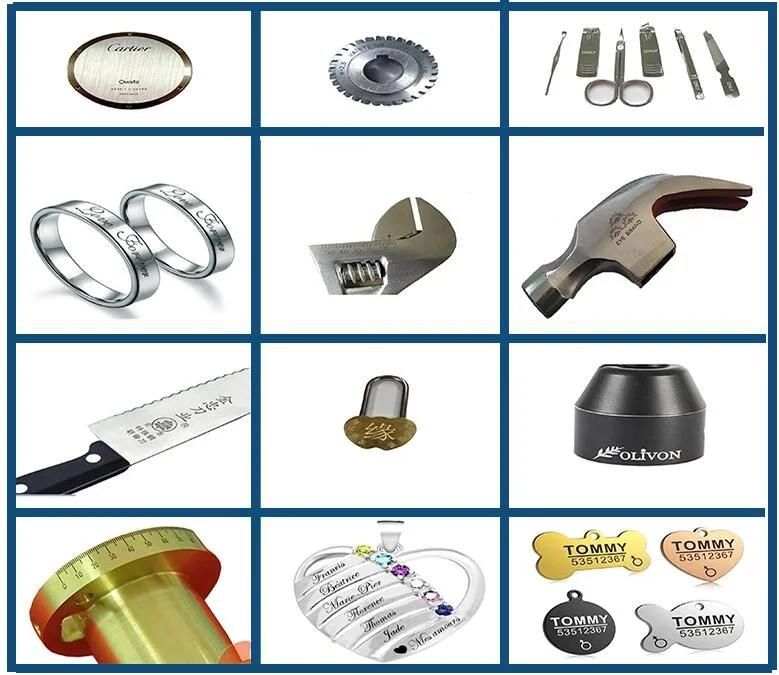

 SAMPLE SHOW :

Applicable Materials

Crafts,furniture,leather,clothing,advertising scutcheon,model-making,food packaging ,

electronic components,medication packaging,cellphone ,press and plate making.

Applying on non-metal materials,such as paper sheet,clothing,leather,bamboo,

wood products,organic glass,epoxy resins,acrylic,polyester resin,also stainless steel and so on metal material.



 PACKAGING &  SHIPPING :

Packing method:

1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-15 days after received your payment .

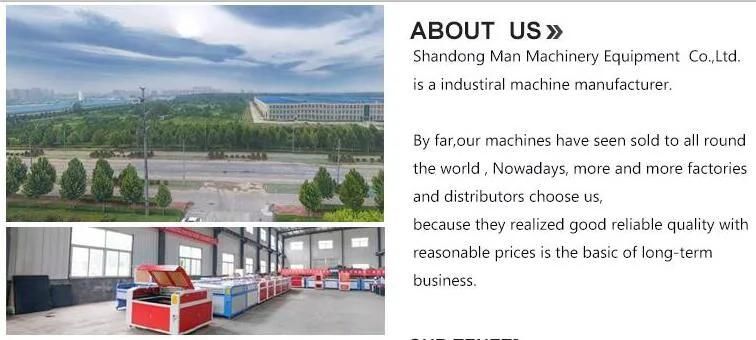

ABOUT US    :



We care what customers concerned:

Installation Service

Installation Services are available with all NICE-CUT  machines.

We dispatch technician to customer's factory for installation and preoperation of machines.

Training Service

Our technician is available to your factory and offer training of how to use our machines.

As well, you may send your technician to our company to learn how to operate machines.
