Basic Info.

Model NO. DF-20 Type Crawler or Wheel Usage Pile Driver, Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel Depth 20m Color Customized Weight 16t Drill Rod Kelly Bar Drill Tools 500-1500drill Bit Drill Bit Cuatomized Chassis Crawler Chassis Length 3900mm Track Width 600mm Power Head Speed 10-40rpm Kind Pile Driver Transport Package Rotary Drilling Rig Package According to The Custo Specification 9800mm*2400mm*2900mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

The maximum drilling depth of the drilling rig is 20M, and the drilling diameter is 500-1500MM. We are a rotary drilling rig manufacturer with 25 years of production experience. The main products are rotary drilling rigs, pile machines, cranes, etc., with a wide range of applications and complete certificates. For more information, welcome your advice!


 Parameter


model	DF-20
Working mode	hydraulic oil cylinder pressure
Drilling diameter	Φ500-Φ1800
drilling depth	5-30m
Diamension	9800X2400X2900mm
Total weight	16T
Power head max output torque	24000N.m
Rotary speed (r/min)	10-30RPM
Assisting winch max lifting force	10KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	25Mpa
pilot pressure	12Mpa
Travelling speed (km/h)	2 km/h
Diesel engine power (KW)	125KW,cummins,water cooling ,turbo charger
Is it customizable?	Yes

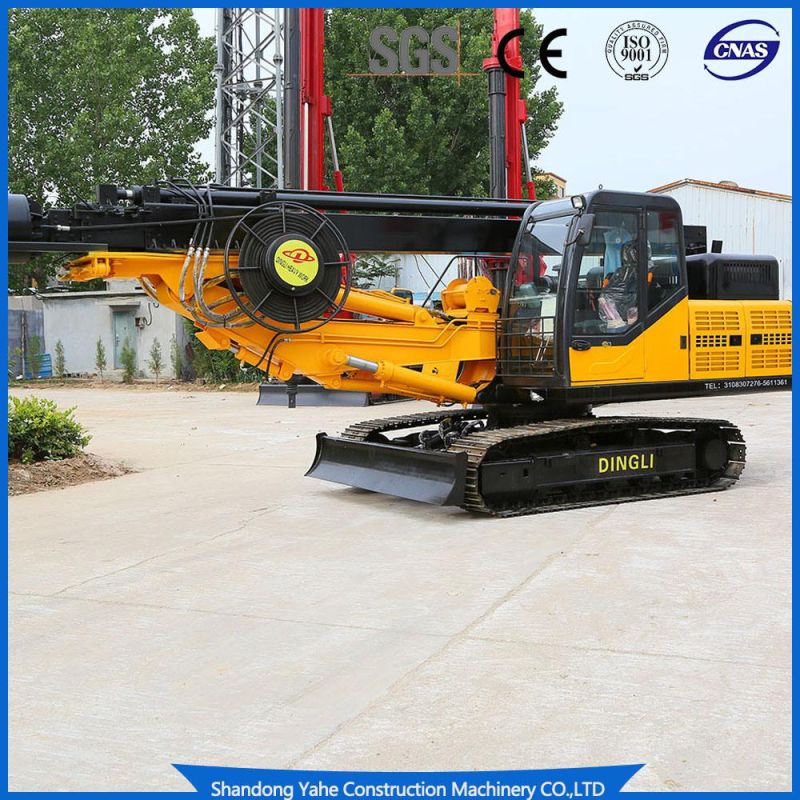

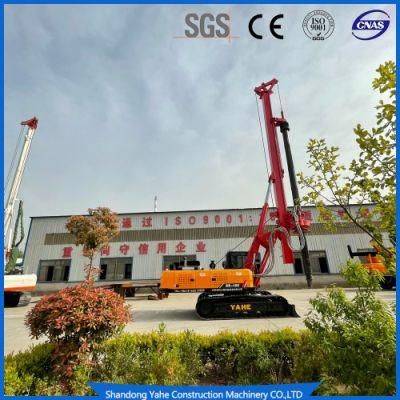

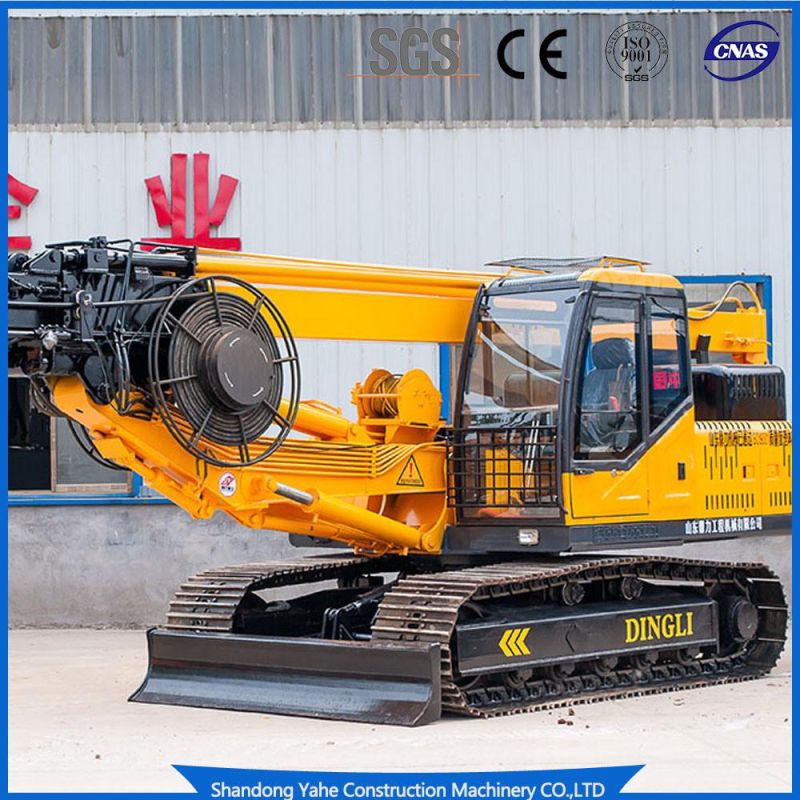

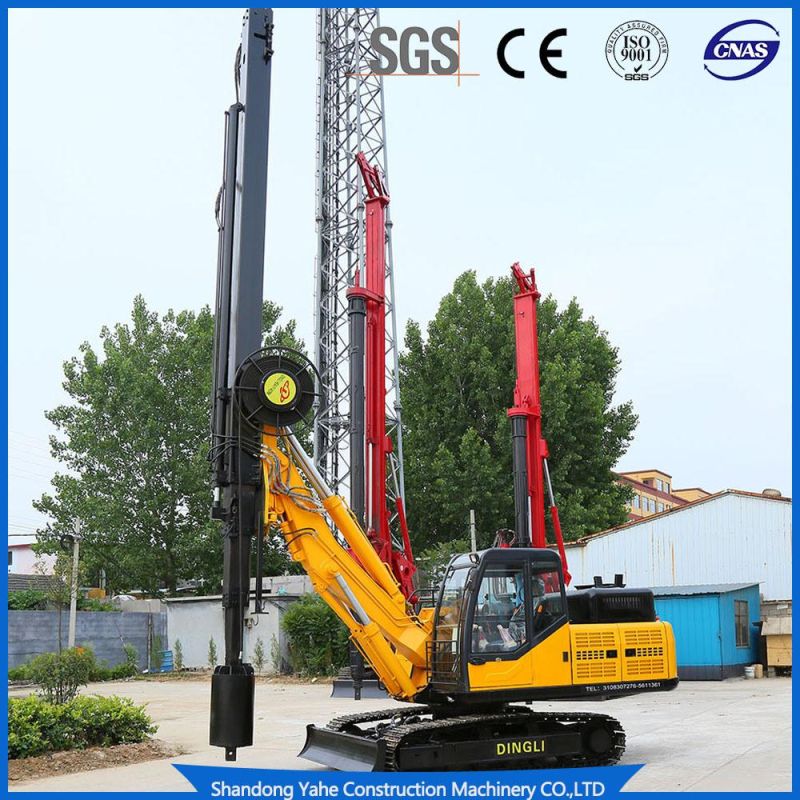

Machine Photos














Exhibition

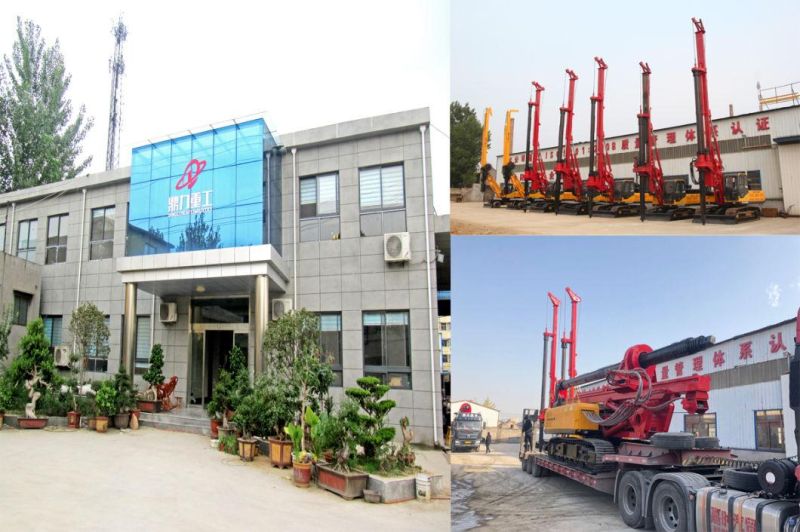

 Company profile

    Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.


 FAQ

1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
