Basic Info.

Model NO. CPU30J-2 Computerized Non-Computerized Certification CE, ISO9001:2008 Max. Output (G/Min) 1000-5000g/Min a Tank Capacity (L) 160L B Tank Capacity(L) 160L C Tank Size (L) 30L Transport Package Plywood Box Specification 2500*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

ZCE specializes in doing Polyurethane machine, Pu roller making machine, Polyurethane wheel and castor making machine, Polyurethane elastomer machine, MDI/TDI/NDI Polyurethane machine, Polyurethane injection machine, Polyurethane two components pouring machine,Three components polyurethane pouring machine, Polyurethane casting machine, PU machine, Polyurethane roll machine and Resin Casting Machine.

PRODUCT DESCRIPTION

1. Output : 250~500g/min
2. Three-phase AC 380V + zero line + (ground) frequency: 50HZ total power 35KW wire 10 square line
3. Air source: The outer diameter of the inlet pipe is 8mm and the pressure is 0.6~0.8MPa.
4. Three components mixing ratio: A: B:C = 100: 205~27:5 ~ 20

Raw Chemical Components


Component Name	Mixing ratio	Temperature(ºC)	Viscosity (CPS)
A ( prepolymer)	100	60-100ºC	<2000
B (MOCA etc.)	20-35	80-125ºC	<100
C  Color paste	0.5-3	Room temperature	50-2000


Output :  g/min

Item/Model	CPU30J-M1	CPU30J-M2	CPU30J-M3	CPU30J-M4	CPU30J-M5
Max.Output (g/min)	250-2500	1000-5000	3000-10000	5000-15000	10000-30000
A tank capacity(L)	160	160	250	250	400
B tank capacity(L)	160	160	250	250	400
C Tank Size(L)	30	30	80	80	80
Stirrer Speed(rpm)	3000-5000	3000-5000	4000-5000	4000-5000	3000-5000
Height from the ground(mm)	1100-1400	1100-1400	1100-1400	1100-1400	1100-1400
Total power(kw)	30	30	35	35	40
Weight(Kg)	1800	2000	2500	2800	3200

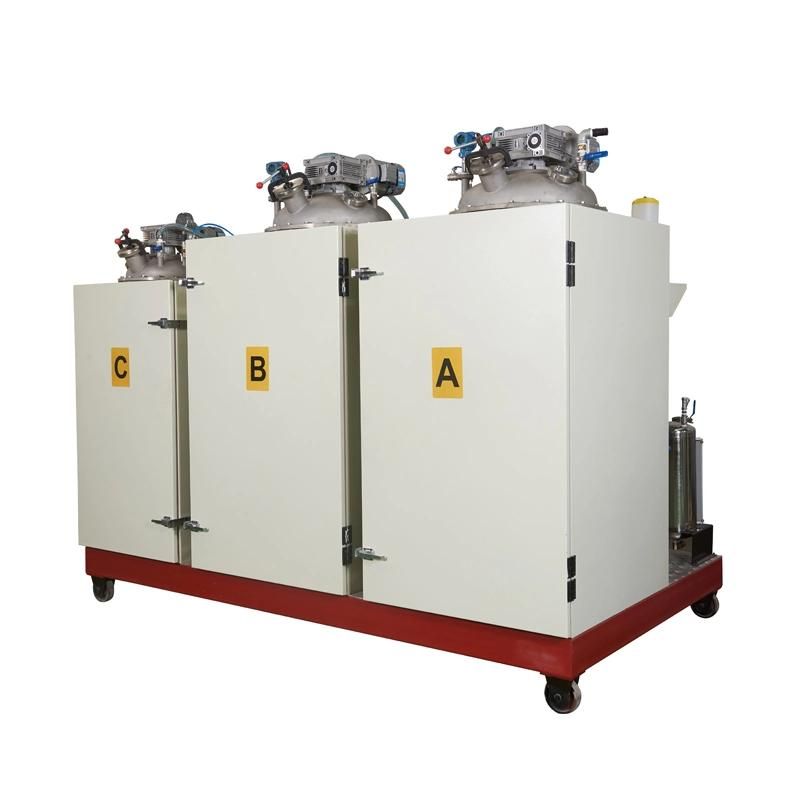

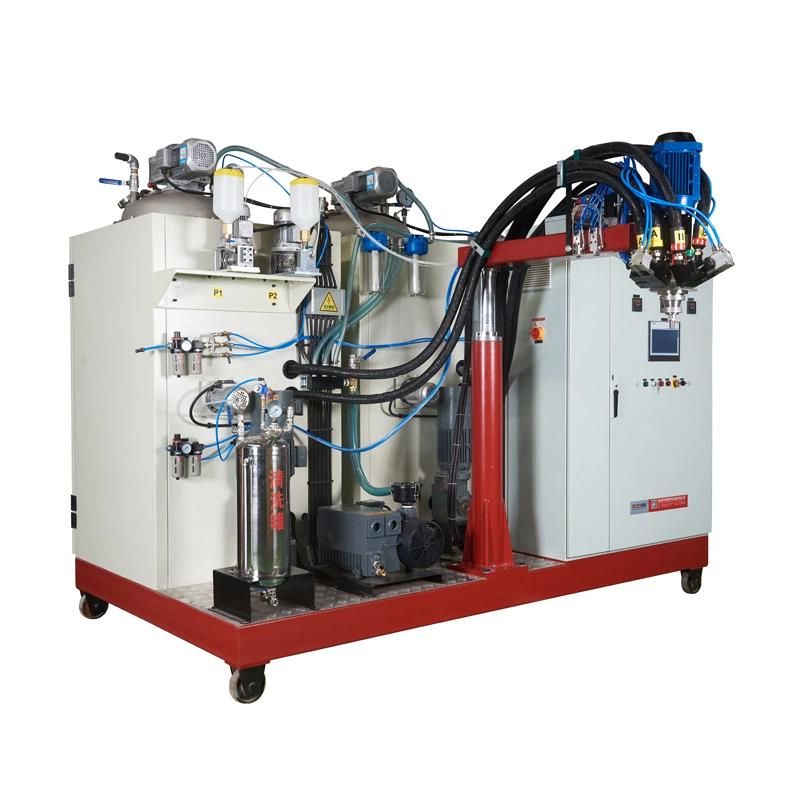

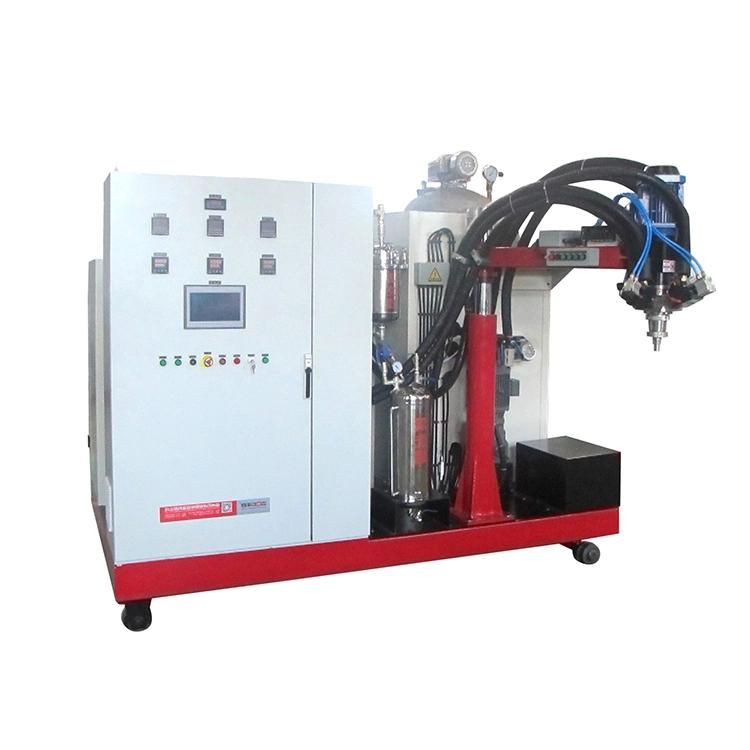

 PRODUCT PHOTOS

COMPANY INFORMATION

CERTIFICATE
PACKING

FAQ
