• Model NO.：CWDB
• Trademark：COREDIAM
• Origin：China
• HS Code：82071910
• Production Capacity：2000 Pieces Per Month

Basic Info.

Model NO. CWDB Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces Per Month

Product Description

1. Introduction

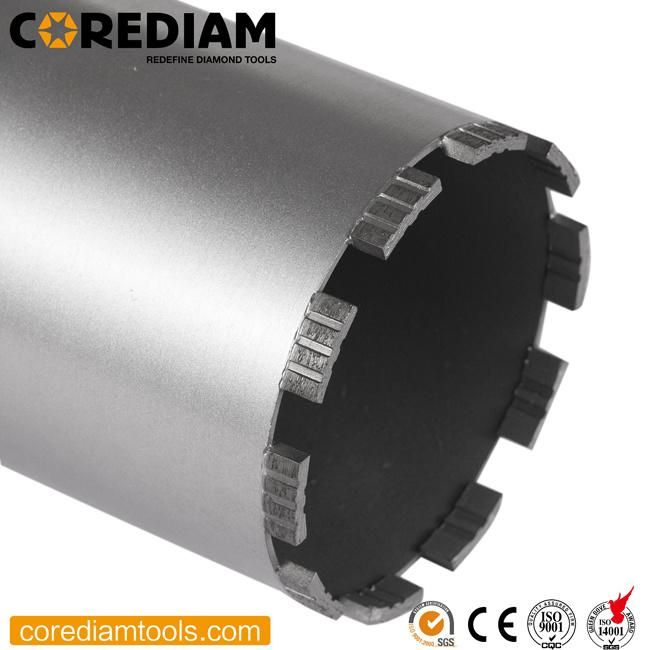

This type of core drill is the laser welded, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The diameter is 127mm. The segment sharp is turbo wave segments. It can be installed on Standard Core Driller, Hand-Held Drillers. The quality level is premium.

2. Features

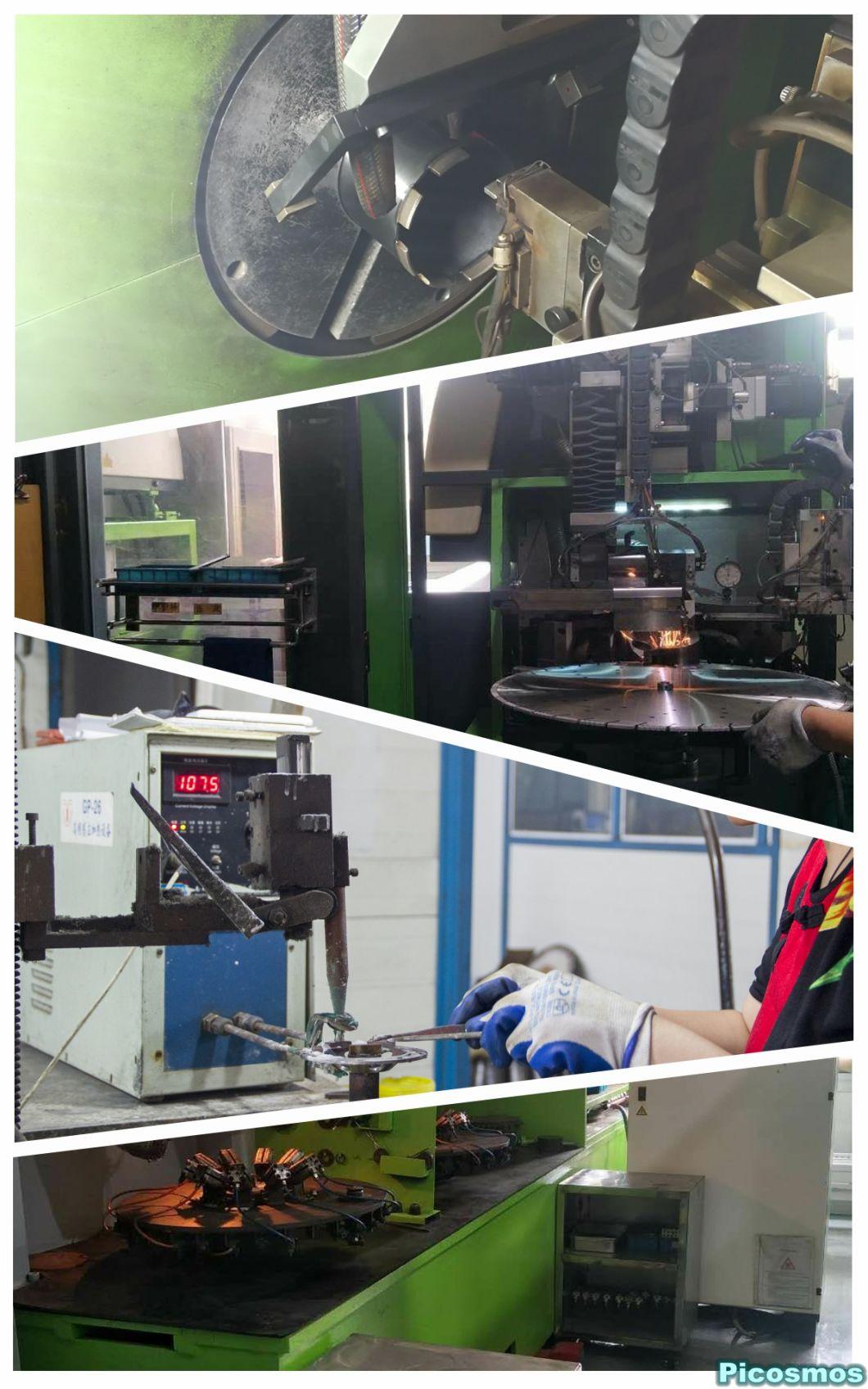

Manufacturer technology: laser welded.
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.



3.Specification


Item No.	Diameter	Segment  Height	Arbor	Effective Length
CWDB03245010	32mm	10	1 1/4"-7	450mm
CWDB03645010	36mm	10	1 1/4"-7	450mm
CWDB04245010	42mm	10	1 1/4"-7	450mm
CWDB05245010	52mm	10	1 1/4"-7	450mm
CWDB06245010	62mm	10	1 1/4"-7	450mm
CWDB07245010	72mm	10	1 1/4"-7	450mm
CWDB08245010	82mm	10	1 1/4"-7	450mm
CWDB09245010	92mm	10	1 1/4"-7	450mm
CWDB10245010	102mm	10	1 1/4"-7	450mm
CWDB11245010	112mm	10	1 1/4"-7	450mm
CWDB12745010	127mm	10	1 1/4"-7	450mm
CWDB13245010	132mm	10	1 1/4"-7	450mm
CWDB15245010	152mm	10	1 1/4"-7	450mm
CWDB16245010	162mm	10	1 1/4"-7	450mm
CWDB17245010	172mm	10	1 1/4"-7	450mm
CWDB18245010	182mm	10	1 1/4"-7	450mm
CWDB20045010	200mm	10	1 1/4"-7	450mm
CWDB25045010	250mm	10	1 1/4"-7	450mm
CWDB30045010	300mm	10	1 1/4"-7	450mm
CWDB35045010	350mm	10	1 1/4"-7	450mm

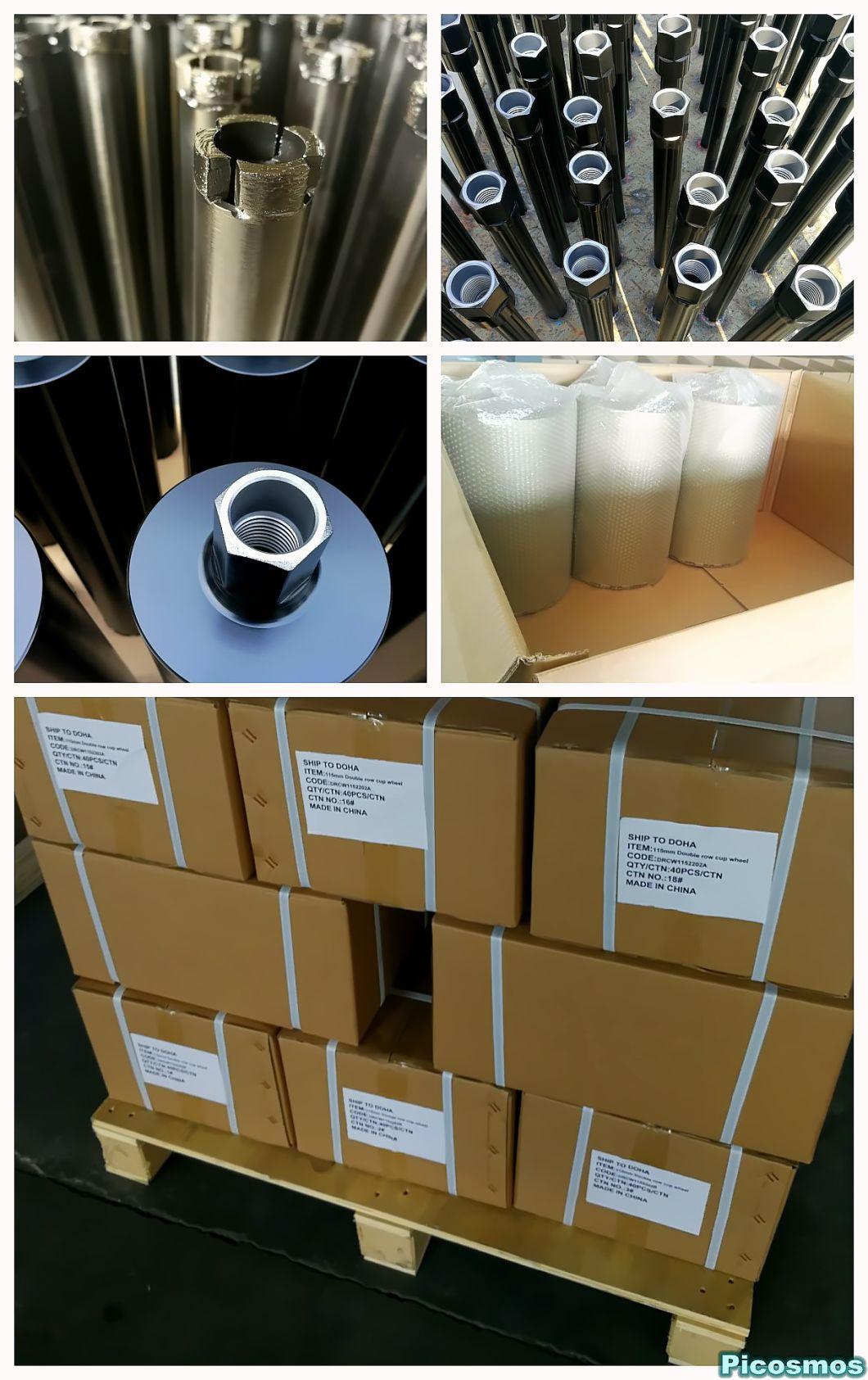

4.Delivery time
  2 weeks for samples after order confirmed.
  3 weeks for batch order after payment confirmed.


5.Corediam service
  We accept customized lengths and segments for wet core drills.
  Also, we help to design the total solution of core drilling projects.
