Ca-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting Machine

Anhui Honglai Packing Co., Ltd.
  • Warranty：2 Years
  • Application：Environmental Equipment, Agriculture Machinery, Automotive Industry, Advertising Industry

Base Info

  • Model NO.：CA-F1530
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Metal
  • Structure Type：Desktop
  • Laser Classification：Solid Laser
  • Laser Technology：Laser Control Fault Cutting
  • Working Area：3000X1500mm
  • Laser Power：1500W
  • Laser Wavelength：1064nm
  • Application Materials：Metal
  • Max. Cutting Thickness：Ss:6-8mm,Ms:12-16mm,Aluminum:3mm
  • Gross Power：9kw
  • Positioning Accuracy：±0.03mm,M
  • Reposition Accuracy：±0.02mm
  • X/Y-Axis Maximum Simultaneous Positionin：140m,Min
  • U-Axis Max.Moving Speed：30m,Min
  • Rotary System：Optional
  • Transport Package：Plywood Case
  • Specification：3800*2280*1860mm
  • Trademark：Camel CNC
  • Origin：Shandong
  • Production Capacity：10000set,Month
  • Package size per unit product：3800.00cm * 2280.00cm * 1860.00cm
  • Gross weight per unit product：3000.000kg

Description

  1. Working voltage Three phase,380V,50/60HZ
  2. Working size 1500*3000mm
  3. Taiwan HIWIN Linear Guide Rail
  4. X,Y Axis Japan FUJI 1000W Servo motor and Driver, Z axis 400w FUJI Servo motor with brake  and driver, total 4 sets.
  5. High speed TAIWAN YYC rack gear Transmission
  6. Original CypCut control System
  7. Raytool Adjust Laser head
  8. MAX 1500W Fiber laser generator
  9. Japan Shimpo reducer
  10. 10.HL1500 water chiller

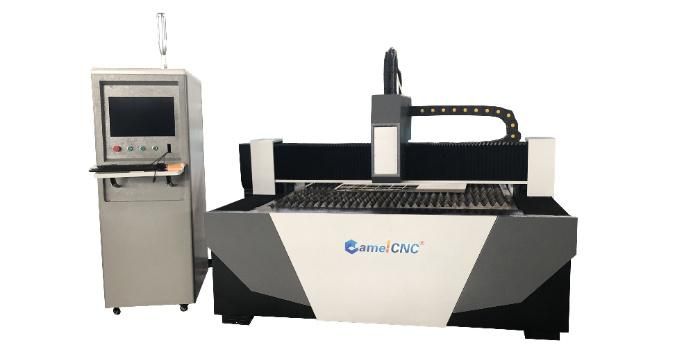

Ca-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting MachineModelCA-F1530Working area3000x1500mmLaser Power1500WLaser Wavelength1064nmApplication MaterialsMetalMax. Cutting ThicknessSS:6-8MM,MS:12-16MM,Aluminum:3mmGross Power9KWPositioning Accuracy±0.03mm/mReposition Accuracy±0.02mmX/Y-axis Maximum Simultaneous Positioning Speed140m/minU-axis max.moving speed30m/minCooling ModelWater coolingRotary systemOptionalCa-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting MachineLaser Cutting Machine Display

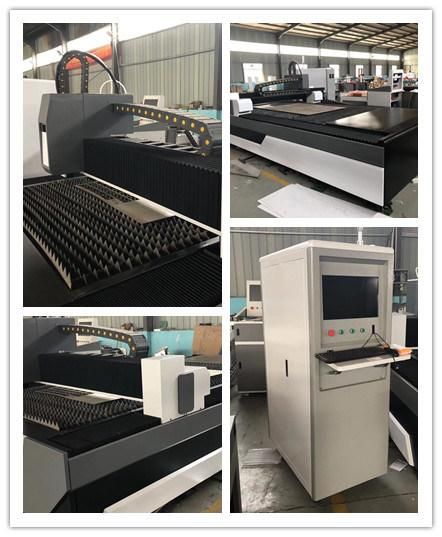

Ca-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting MachineCa-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting MachineDetails of laser cutter

Ca-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting MachineCa-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting Machine

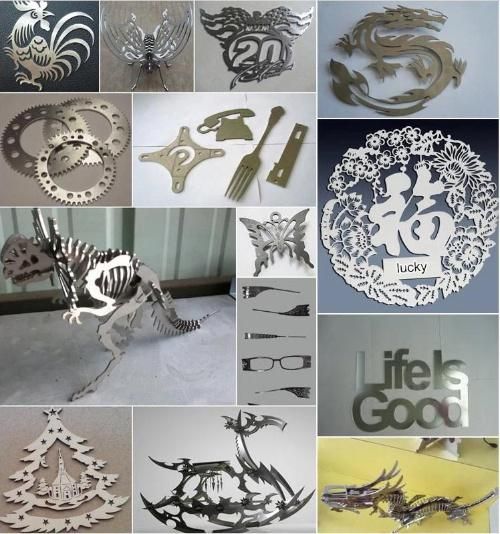

Sample Display

Ca-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting Machine Ca-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting Machine

Ca-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting MachineCa-F1540 Ca-F1530 for High Power Efficiently Cutting Carbon Steel Laser Cutting Machine
