Basic Info.

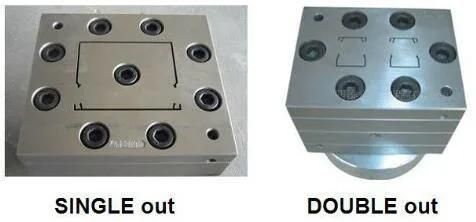

Model NO. MT400 Profile Cable Trunking Profile Motor Weg SSR Relay Celduc Screw/Barrel Bimetallic Inverter Schneider Contactor Schneider Speed 4m/Min Punching Machine Online Punching Mould Double Cavities Haul off 240mm Transport Package Standard Export Packing Specification Customized Trademark Midtech Origin China HS Code 84772090 Production Capacity 10 Sets/ One Year

Product Description

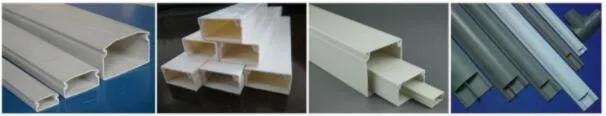

PVC/Plastic cable trunkings profiles Extruder/Making machines






This unit mainly includes accurate extruder, die(mould), vacuum calibration table, haul-off, cutter and etc. Main machine and haul-off adopt imported prequency inverter, stainless steel calibrator, traction speed steady, size accu racy high, cutter adopts PLC control, and cutting length can be set at random.
Trunking production line/pvc trunking

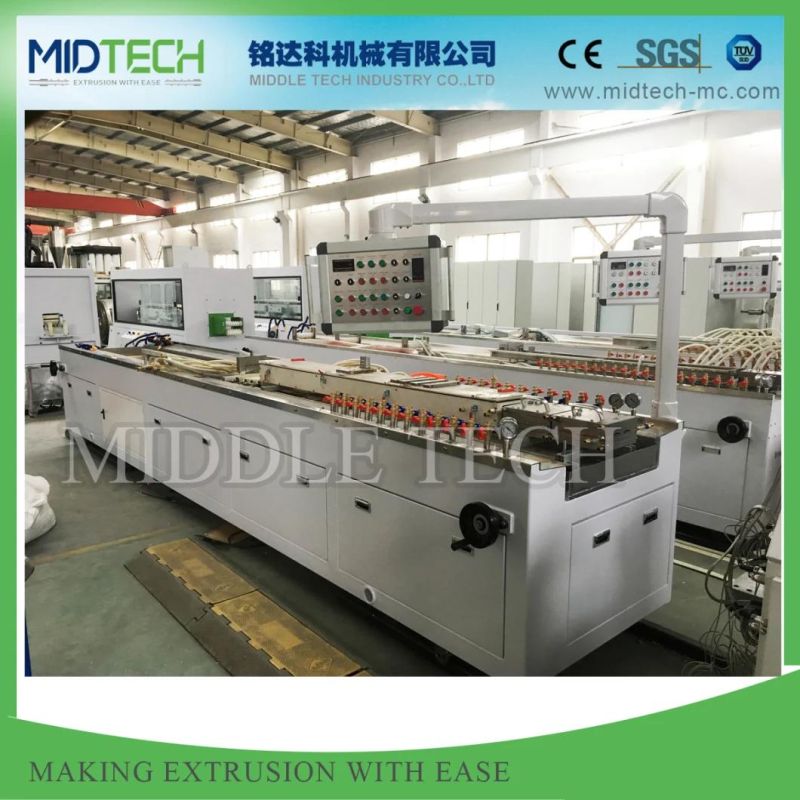

PVC Cable Trunking Production Line (Extrusion Machine)
1)high-speed extrusion
2)competitive price
3)PVC trunking production
PVC Cable Trunking Production Line (Extrusion Machine)



PVC cable trunking profile production line processing:

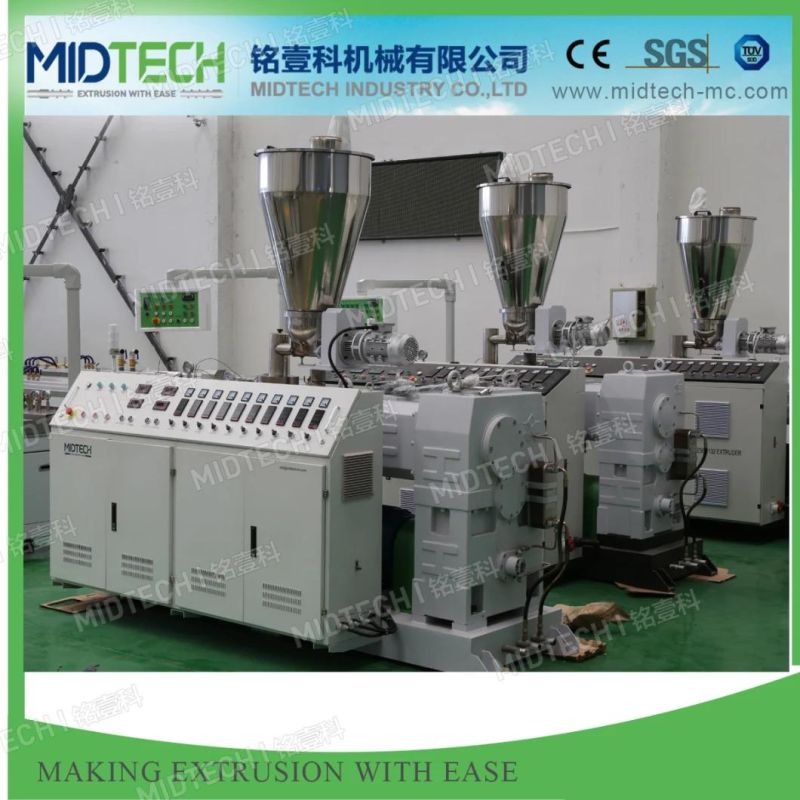

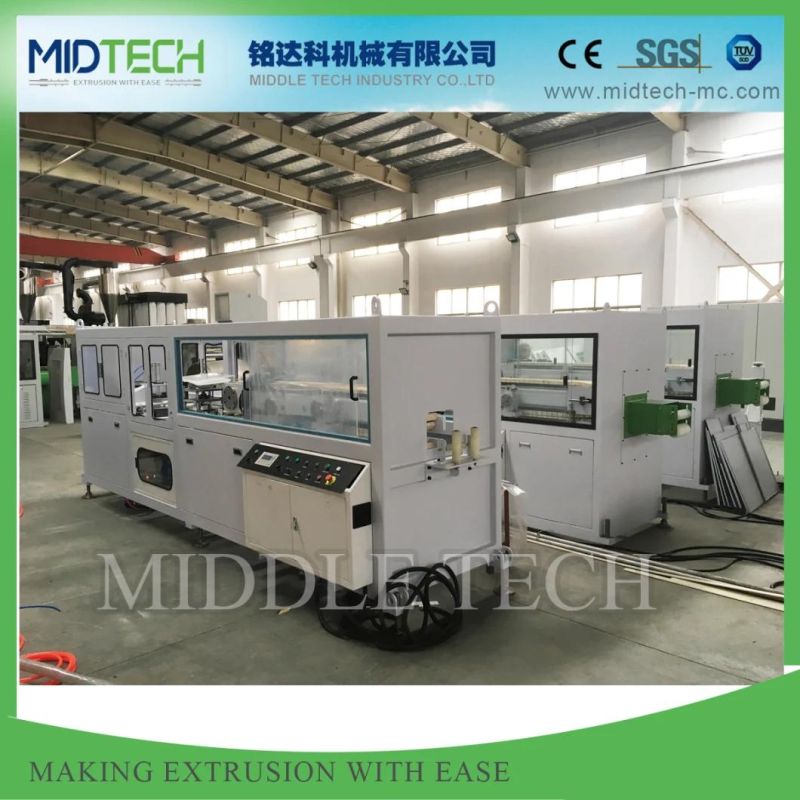

Raw material + additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product


Model Product dimension (w×h)mm Extruder  model output(kg/h) Max speed (m/min) Main motor  power(KW) Length of line(m) SJYF-180 180×60 SJSZ51/105 80-100 6 22 23 SJYF-240 240×120 SJSZ65/132 140-180 4 37 27 SJYF-300 300×120 SJSZ80/156 300-400 6 55 30
