• Model NO.：STBA
• Certificate：En13236
• Abor：22.23mm
• Segment Height：8mm
• Transport Package：Carton
• Specification：230x8x22.23mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. STBA Certificate En13236 Abor 22.23mm Segment Height 8mm Transport Package Carton Specification 230x8x22.23mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 10000PCS/Month

Product Description

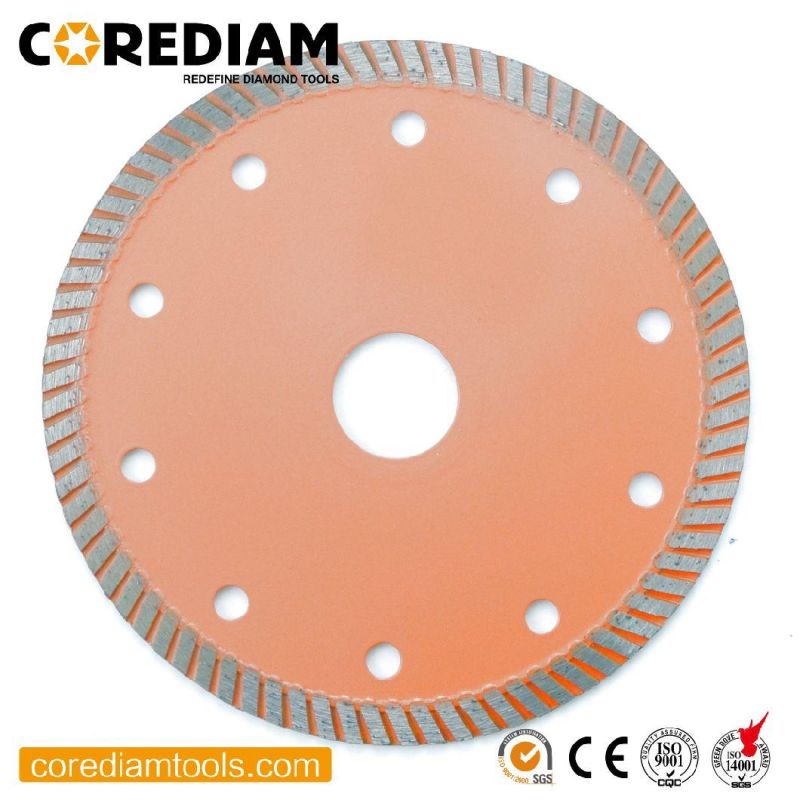

1.Turbo cutting disc introduction

The diameter of this turbo type blade is 230mm. It is sinter hot-pressed, the segment height is 8mm, we can also supply blade with segment height 10mm. It can be widely used in wet cutting granite, marble and other stone materials with good efficiency. Turbo type segments can make fast cutting speed with a clean edge and no chipping. Specially designed fine turbo teeth and the mature bond system offers extremely fast and smooth cutting.






2. Turbo cutting disc cutting materials & equipment
Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw

3. Turbo cutting disc features:
 - Universal dry and wet cutting blades.
- Good cutting result: smooth and stable cutting, stone waste reduction./wet cutting
 - Fast cutting speed with a clean edge and no chipping.
 - Specially designed fine turbo teeth and mature bond system provides extremely fast and smooth cutting.


4. Turbo cutting disc production process.
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch

5. Turbo cutting disc delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

Specification  for reference: (others also availiable as per required)

Item No.	Diameter	Segment Height	Segment Width	Arbor
STBA10508	105mm	8mm	2.2mm	22.23mm
STBA11508	115mm	8mm	2.2mm	22.23mm
STBA12508	125mm	8mm	2.2mm	22.23mm
STBA15008	150mm	8mm	2.2mm	22.23mm
STBA18008	180mm	8mm	2.5mm	22.23mm
STBA23008	230mm	8mm	2.7mm	22.23mm
STBA30010	300mm	10mm	3.2mm	25.4mm
STBA35010	350mm	10mm	3.2mm	25.4mm

6. Packing and delivery.

7. Corediam quality control systerm

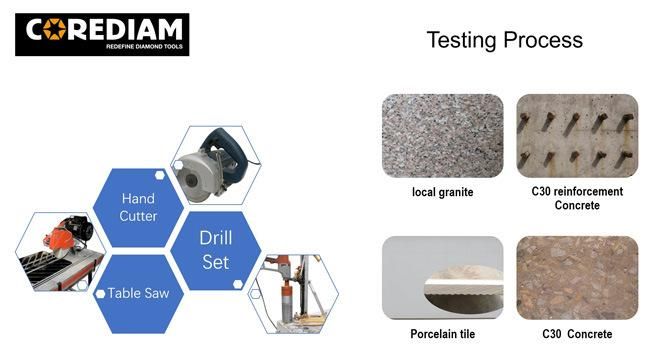

8. Corediam testing process


9. Corediam sales network
