Basic Info.

Model NO. SJSZ-65/132 Inverter ABB Barrel SKD Material PVC Mixing Wood Powder Final Product Hollow or Solid Door Frame Capacity Max.150-180kg/H Transport Package Film or Wood Box Packaging Specification SJSZ-65/132 Trademark HEGU Origin Qingdao HS Code 847720 Production Capacity 200sets Per Year

Product Description

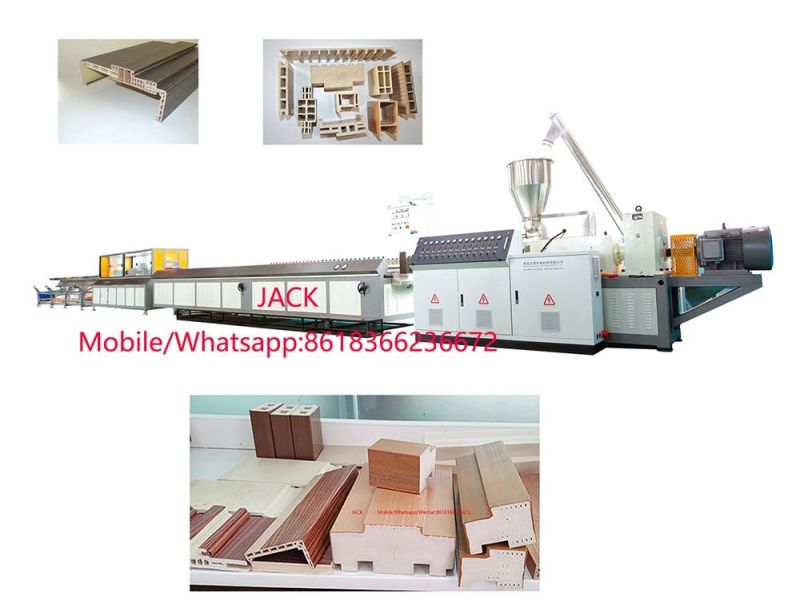

PVC WPC Door Frame Profile Extrusion Machine

WPC Door Frame Extrusion Machine use PVC and Wood Powder Mixed Material, It can produce hollow type and solid type door frame profile. The surface could be with ASA co-extrusion or hot stamping/ Laminating.

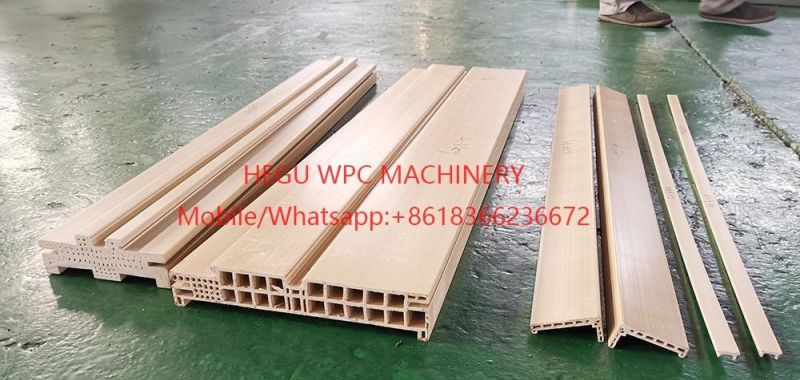

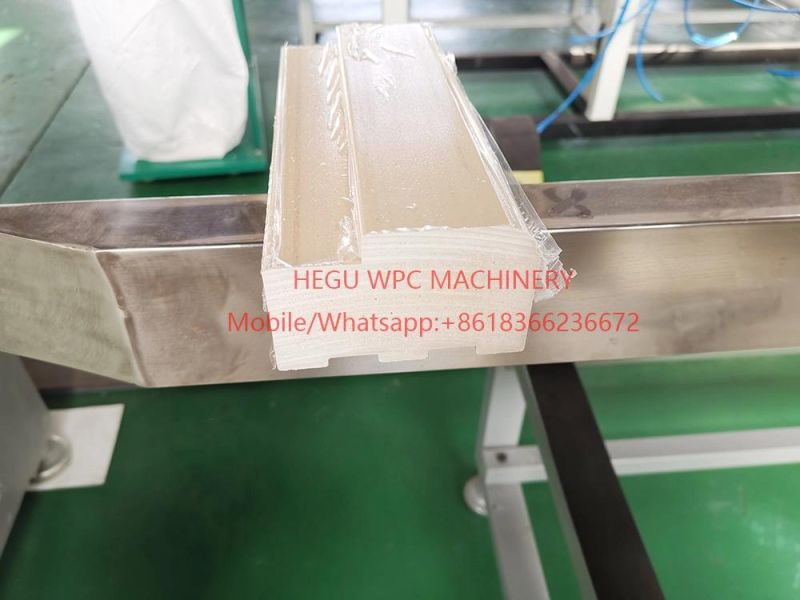

It can produce Hollow Type and Solid Type Door Frame.

WPC PVC Door Frame Profile Production Line Machine List:

Auto feeder	1 set
SJMS65/132 conical double screw extruder	1 set
Die and mold
Calibrating Table	1 set
Haul  off machine	1 set
Cutting machine	1 set
Product stacker	1 set



Detailed Description of the WPC PVC Door Frame Extrusion Machine

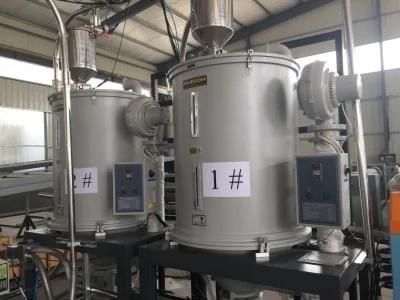

Feeding machine
The Material should be mixed by mixing machine according to our formula.
the mixed material shall be put into a auto feeding tank, and then feeded to the extruder.

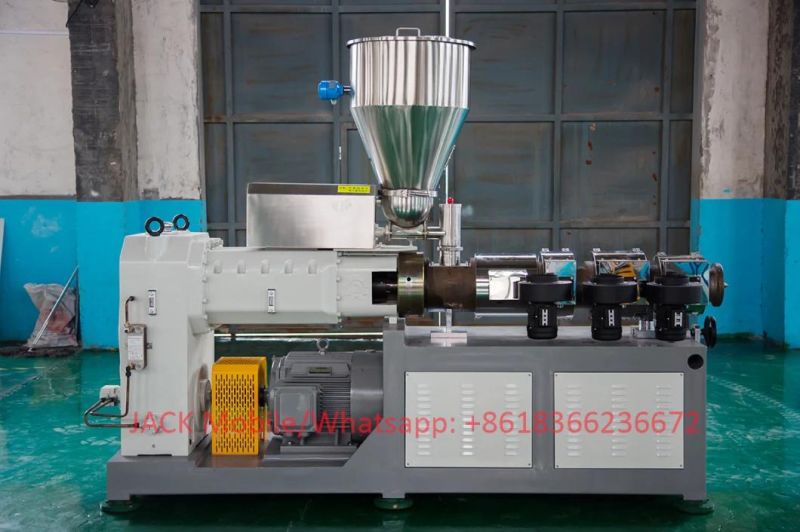

Extruder

We equip the SJMS65/132 conical double screw extruder for WPC solid door frame making.
the extrusion capacity can be 150-240 kg per hour.
the main motor power is 37kw with ABB inverter.
the extruder equipped with Vacuum exhuasting system for moisture.

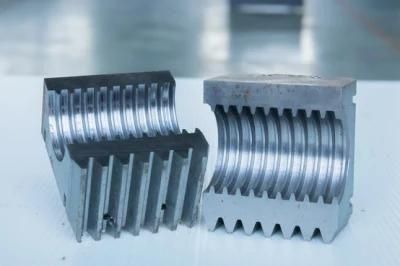

Mold

You can change mold to make different products with different size and shape.
and the calibrators shall be cooled by water cooling and vacuum cooling.

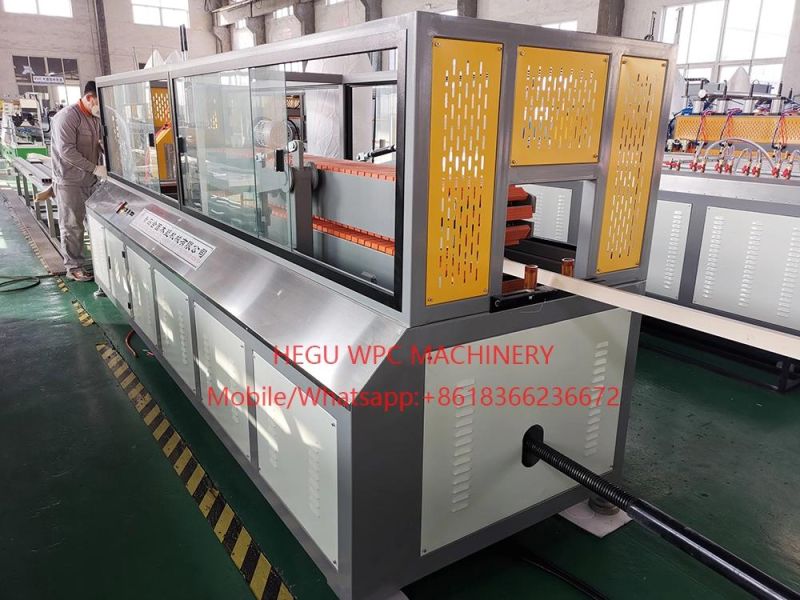

Calibrating Table

The product should be cooled and calibrated in the calibrating machine.

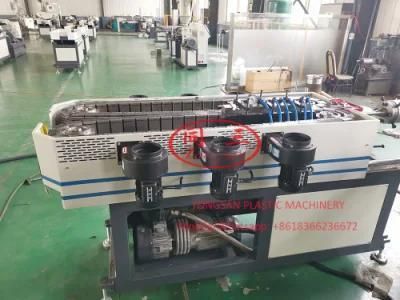

Haul off machine

the Haul off machine is used for clamping the product to moving forward.
Strong force haul off machine with high quality rubber caterpillar is necessary for making WPC door frame


Cutting machine
automatic cutting machine with fixed length cutting.
with cutting dust clean and suction device
Auto stacker
Length: 6 meter
material: stainless steel
equipped with length limit switch
automatic stacking

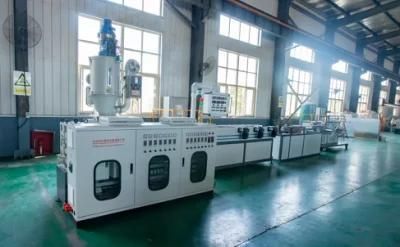

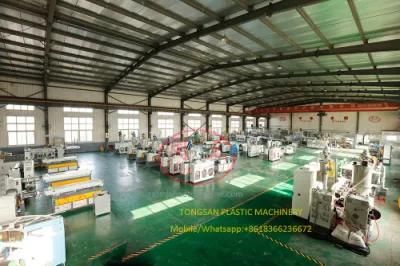

Our WPC Machinery Workshop

Company Introduction:
Qingdao Tongsan Plastic Machinery Co.,Ltd is one experienced plastic machinery manufacutrer since 1997.
Qingdao Hegu Wood Plastic Machinery is sister company of TONGSAN, which is focused on Wood Plastic Composite Extrusion Line!

Our Motto
Quality is the style of TONGSAN.

Credibility is the personality of TONGSAN.

Innovation is the pursit of TONGSAN.


Exhibition


To realize more about WPC door frame making  machine and our company, welcome contact us freely. We will provide best solution according to your requirement.

Let us build a Win-Win Cooperation!
