Basic Info.

Model NO. 20-1600mm Condition New HDPE Pipe Production Line 63-1200mm Transport Package Wooden Specification ISO/CE Trademark XJG Origin China HS Code 8477800000 Production Capacity Uncertain

Product Description

Main technical charateristics:
Based on 20 years of plastic extrusion machinery development and design experience, my company combined the advanced  technology and digestion to prompt this HDPE water supply pipe and gas pipe production line. Its unique structure design  and high efficiency performance makes it fast accepted by the pipe factories.

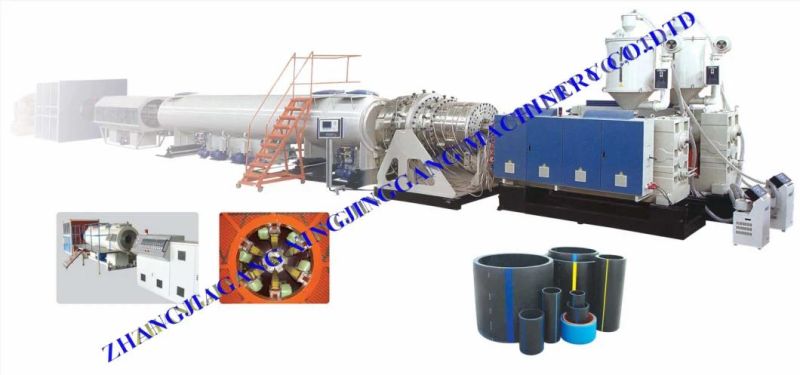

The extrusion line consists of high efficiency single screw extruder, vacuum calibration, spraying water cooling tank,multi-claw haul-off machine, planetary cutting machine,pipe stacker and trolley.
It adopts PLC control system and HMI for whole extrusion line, synchronization function realized,as well as   the winding machine.It helps the group machine.





Type	Pipe Size (mm)	Extruder Model	Max. Speed (m/min)	Max.Extrusion Capacity (kg/h)	Total Power (kw)	Total Length (m)
XJG-800	560~800	SJ120/33	0.5~0.8	900	580	75
XJG -1200	630~1200	SJ150/33	0.4~0.6	1100	800	85
XJG -1600	800~1600	SJ90/33*2	0.3~0.4	1100	640	95
XJG -2000	1200~2000	SJ120/33*2	0.2~0.3	1800	1000	110
