Basic Info.

Model NO. SJM Transport Package Wrapping with Film Specification CE ISO Trademark TINVA Origin Ruian Zhejiang Production Capacity 20sets/Month

Product Description

Description:

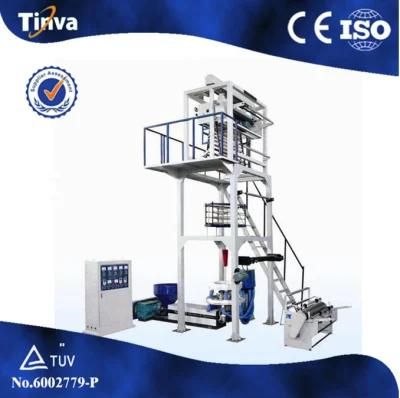

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Main Technical Parameters:

Model	SJ-M50A	SJ-M55A	SJ-M60A
The dia of screw	50mm	55mm	60mm
Draw of ratio screw	28:1	28:1	28:1
Rotational speed of screw	10/120r/min	10/120r/min	10/120r/min
Power of main machine	11KW	15KW	18.5KW
Output	40kg/h	50kg/h	65kg/h
Max.thickness of film	0.006-0.1mm	0.006-0.1mm	0.006-0.1mm
Max.folding dia of film	600mm	800mm	1000mm
Lift range	800mm	1000mm	1200mm
Gross power	22kw	25.7kw	29kw
Weight of machine	2100kg	2300kg	3000kg
Overall Dimension	5500X2000X3800mm	6000×2000×4000mm	6000×2200×4000mm
Size of mould head	60mm-90mm	80mm-160mm	80mm-180mm
