Basic Info.

Model NO. SJSZ80/156 Customized Customized Condition New Raw Material PVC Resin+Additives or PMMA Install Power 195kw Dimension 25000X3000X2800mm Weight 18t Structure a/B Two Layers Line Speed Max.4m/Min Capacity 350kg/Hr Cooling Water ~3tons/Hr Compressedair 0.3m3/Min, >0.5MPa Operator 2-3/Shift Transport Package PE Elastic Film or Wooden Case Specification As per customer′s request Trademark WEIER Origin Qingdao City, Shandong Province, China HS Code 84772090 Production Capacity 20unitsMonth

Product Description

880mm width PVC Glazed Roofing Sheet Extrusion Line with 10 Years Factory

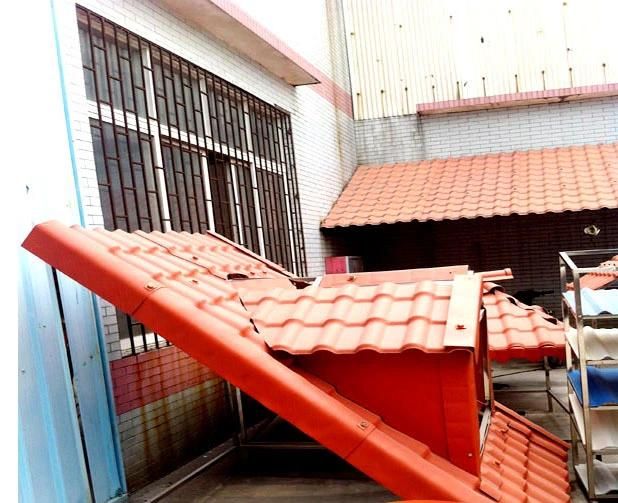

 Applications:Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.
Equipment lists

1.1)Screw loader for SJZ 80/156 extruder

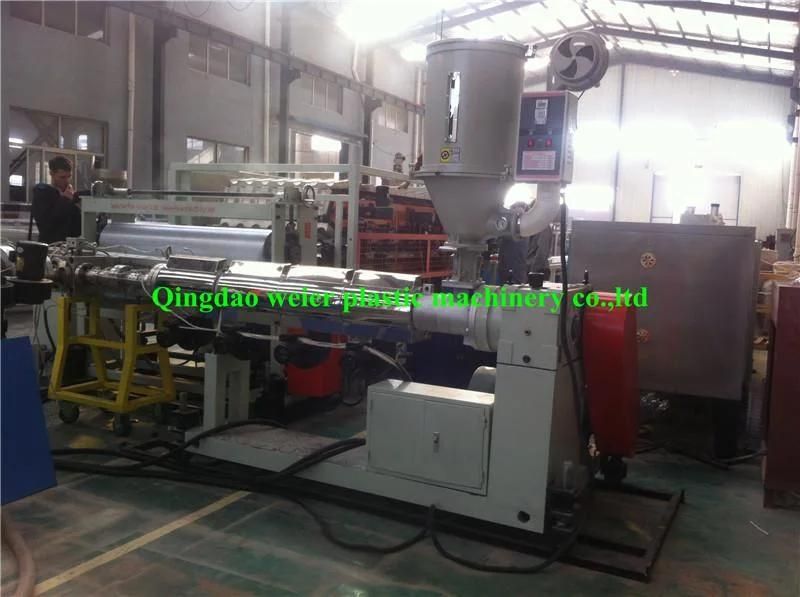

1.2) Conical twin screw extruder	SJSZ-80/156
1.3) Vacuum feeder and drying hopper	STG-75
1.4) Single screw extruder(ASA layer)	SJ-65/30
1.5) Mold and distributor	PM1000
1.6)Two roller embossing calendar	YH-1200
1.7)Temperature controller
1.8) Roof forming unit	ZSW-900
1.9)Cutting unit	QG-1000
1.10)Stacker	LJ-6000

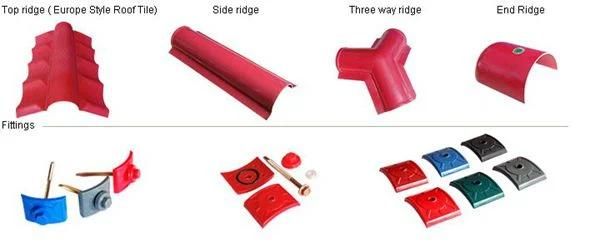

Ridge roof forming machine(Optional)

1.1)Flat sheet haul-off unit
1.2)Oven
1.3)Ridge tile forming unit
1.4)ridge tile mold (4sets)
Summarization

Materials	PVC,ASA with different colors and some additives
Products width	880mm/1050mm
Products thickness	2-3mm
Center meter	1100mm
Products color	decide by customer
Output	350-400kg/hr ;1000m2 per 24 hours
Line speed	0.3-4M/min
Operation direction	from right to left
