• Model NO.：12-24
• Operation：Continuous
• Energy：Heat Sterilization
• Property：Chemical Sterilization
• Type：Induction Electronics Sterilization Equipment
• Transport Package：Wooden Case
• Trademark：YHTECH
• Origin：China
• HS Code：8419899090
• Production Capacity：1000

Basic Info.

Model NO. 12-24 Operation Continuous Energy Heat Sterilization Property Chemical Sterilization Type Induction Electronics Sterilization Equipment Transport Package Wooden Case Trademark YHTECH Origin China HS Code 8419899090 Production Capacity 1000

Product Description

project	Content
Inner diameter / barrel length / volume	1200/2400/3.2m³
Maximum working pressure	0.3Mpa
Maximum operating temperature	143ºC
Total installed power	13KW
supply voltage	380V
Pot material	SUS304
Wall thickness of pot	GB5mm
Work area	5500/2400/3600
Air compressor	1.0m³/m,Maximum pressure1.0Mpa
Compressed air storage tank	2.0m³,Maximum pressure1.0Mpa
Power and accessory cable (provided by the user)	capacity30KW/voltage380V/frequency50HZ
Cooling water storage tank, auxiliary connecting pipe and connecting valve (provided by the user)	>15m³
Pressure reduction of steam and auxiliary connecting pipes and connecting valves (provided by the user)	>1T/H/0.5Mpa

Product Description

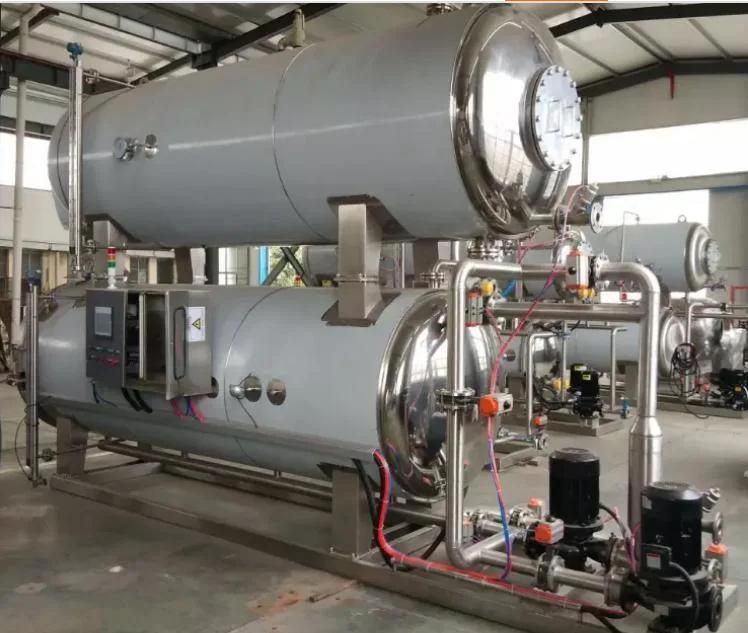

Water spraying retort pouch autoclave
1.Control:Full-Automatic
2.Stainless Steel
3.Sterilization:Hot Water Spray

4.Composed of sterilizing tank and small hot water tank.

5. Horizontal
The Automatic Water Spray Type Autoclave is suitable for the sterilizing of the flexible package like aluminum foil,cann,glass bottle,standing pouches etc.
It can sterilize evenly due to the even distribution of the hot water and it can sterilize everywhere of the products without dead angle. The sterilizing temperature, pressure and time can be controlled automatically.
There are two tanks. The upper tank is hot water tank and the bottom tank is sterilizing tank. It saves energy. The work medium can be used circularly, which can save energy, time, manpower and physical resources.
This equipment is full automatic and also matched with a manual control system.Our retorts are all made according to customer's requirements.

I.Product Description:

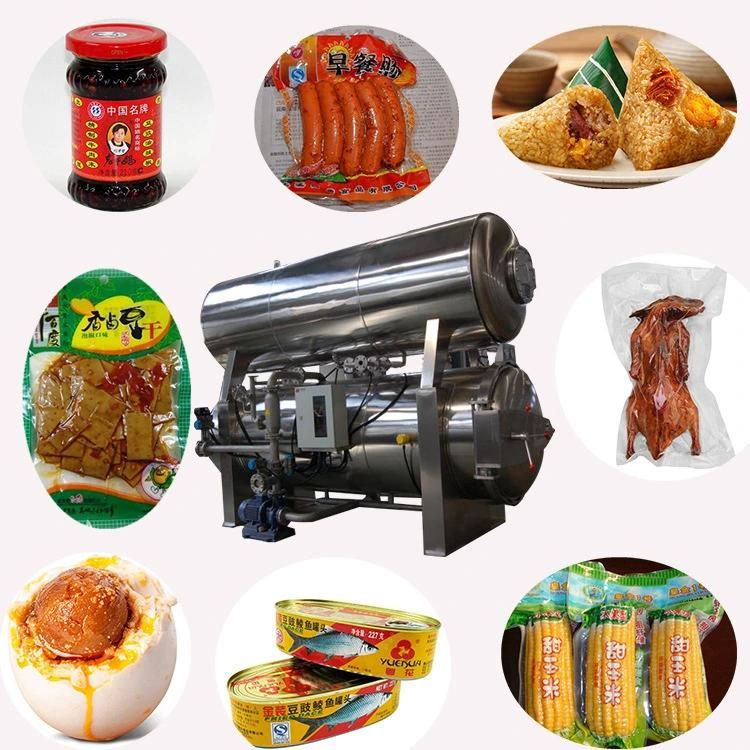

Autoclave food sterilizer can be applied to a variety of high temperature packaging materials, such as:

1.plastic & rubber container: PP bottle, HDPE bottle, PP can, HDPE can

2.flexible package: aluminum foil bag, transparent bag, vacuum bag, retort pouch

3.Glass container: Glass bottle, glass jar.

4.Metal can: tin can, aluminum foil can.

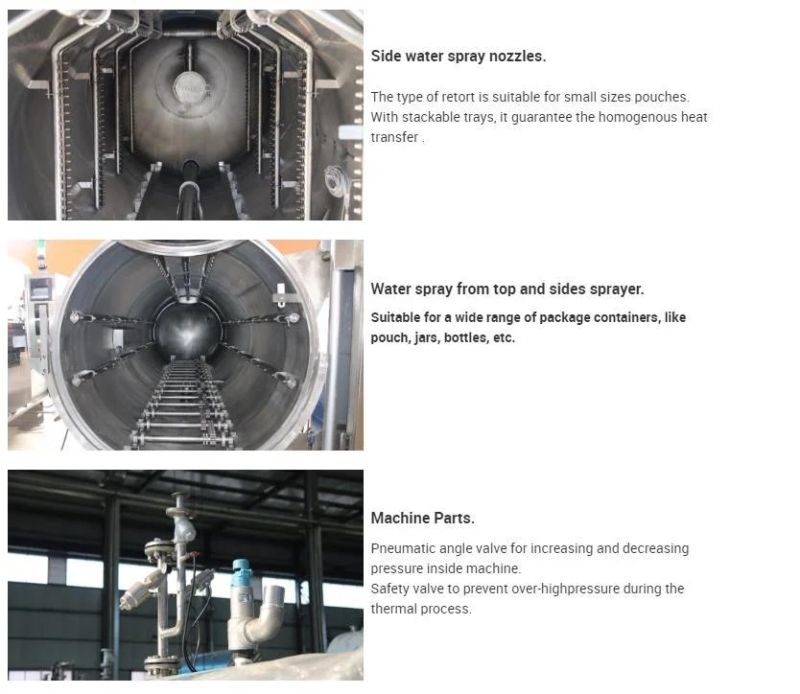

II.Details of the retort:
