• Model NO.：PE-W350
• Laser Classification：Fiber Laser
• Type：Fiber Laser
• Conduction Type：Optical Fiber Transmission (Lamp Pumped)
• Machine Power Supply：380V 50Hz
• Laser Type：ND:YAG Pulse Xenon Lamp
• Spot Size：0.2-3mm
• Laser Wavelength：1064nm
• Pulse Width：≤15ms
• Laser Power：300W 400W 500W 600W
• Laser Output Focal Length：150mm
• Observation System：Standard CCD
• Fiber Length：5 Meters (Standard)
• Transport Package：Wooden Case
• Specification：ISO9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8515809090
• Production Capacity：300 Units, Month

Basic Info.

Model NO. PE-W350 Laser Classification Fiber Laser Type Fiber Laser Conduction Type Optical Fiber Transmission (Lamp Pumped) Machine Power Supply 380V 50Hz Laser Type ND:YAG Pulse Xenon Lamp Spot Size 0.2-3mm Laser Wavelength 1064nm Pulse Width ≤15ms Laser Power 300W 400W 500W 600W Laser Output Focal Length 150mm Observation System Standard CCD Fiber Length 5 Meters (Standard) Transport Package Wooden Case Specification ISO9001 & CE Trademark Perfect Laser Origin China HS Code 8515809090 Production Capacity 300 Units/ Month

Product Description

  Factory - Direct Handheld 500W 1000W 2000W Fiber Laser Welding Machine for Metal
(Model:PE-W350)

Contact:Lucy
Product Description of Welding Machine:
PE-W350 Fiber Transmitting Laser Welding Machine is produced by Perfect Laser. The welding machine adopts integration design, compact structure and aesthetic appearance, and have characters of best beam mode, stable energy output, stable performance, reliable use, fast welding,a wide range of applications for consumable parts. Whether it is from the appearance , structure or man-machine operation page, the laser welding machine for mold repair shows Perfect laser innovation and progress for humanization and work efficiency in laser equipment, and it is really a major selling products in laser welding machine industry.


Application of Welding Machine:
PE-W350 laser welding machine is widely used in high-precision metal parts welding, electronic components welding, picture tube electron gun welding, missile detector welding, mobile phone vibration motor welding, detonator engine welding, car lights and xenon lamp welding Precision optoelectronic parts welding, sensor and electronic products such as welding.


Main Features of Welding Machine:
1. It adopts advanced Germany combined gold-plated reflector cavity laser technology, and use special beam election mode technology, which ensure a high output power and excellent laser beam mode.
2. PE-W350 laser welding machine with a large output power, huge energy, excellent laser beam mode, reliable performance, fiber transmission and other characteristics, you can easily process different positions at the same time.
3. Equipped with programmable pulse and intelligent management system, and have dual pulse xenon lamp and constant current laser power supply , to protect the system to run stable and prevent the water temperature is too high or too low.

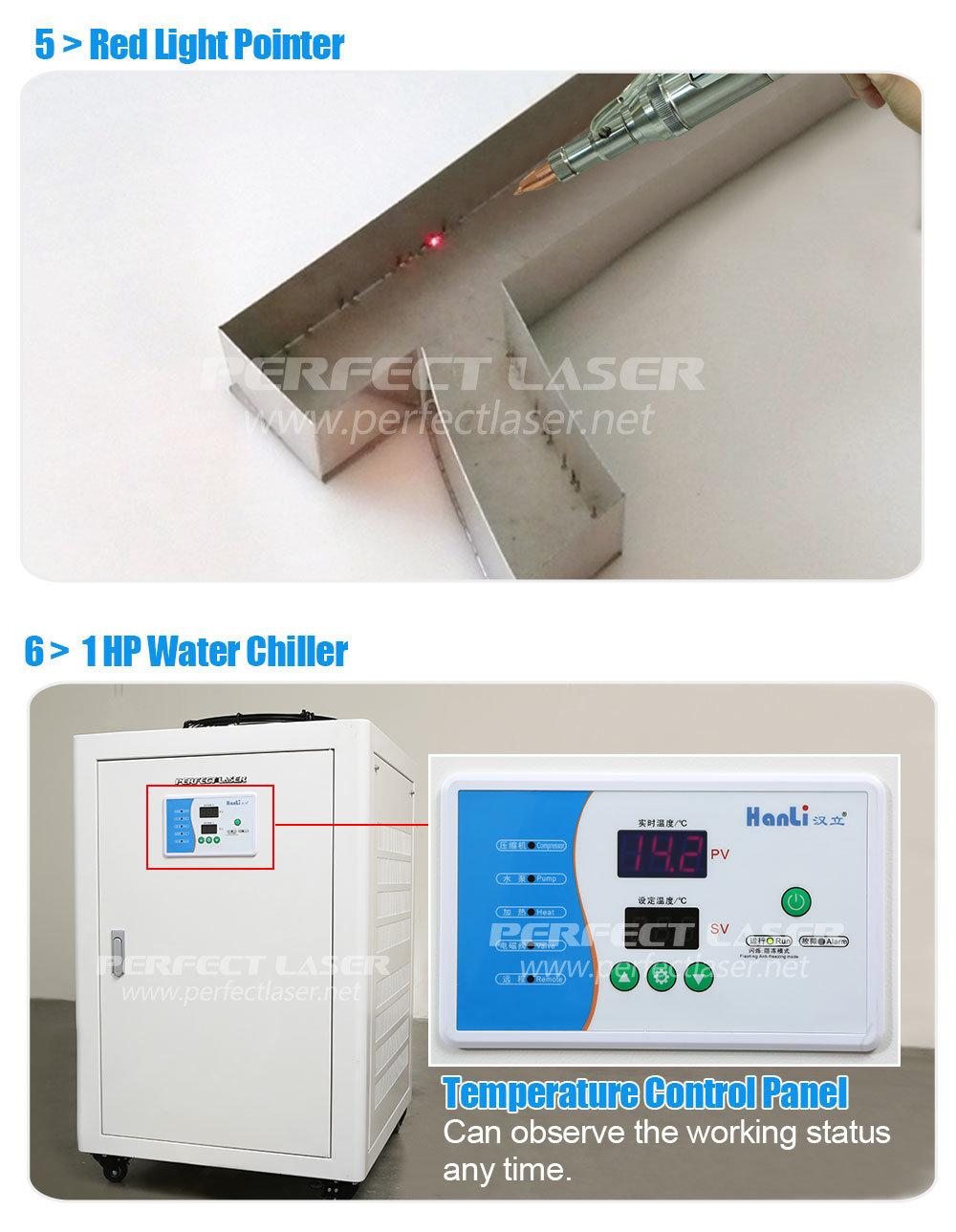

4. The use of semiconductor red light positioning is easy to find the welding point, and to ensure more accurate processing, saving time and effort.
5. Configuration CCD coaxial / paraxial monitoring to monitor the welding process more intuitive , and to facilitate more timely adjustment.
6. Impact-resistant working platform and rotating fixture to facilitate the placement of objects to be sold, it can also be designed according to customer needs to meet a variety of processing.
7.Crane type laser welding machine equipped with the crane system can be moved in all directions.Equipped with a two-dimensional CNC platform, the mold repaire welding machine can be for large-scale mold with 1.5 meters diameters, and several tons weight. Easy to move, you can move directly near to the mold which need to be repaired. It also can be used for small and medium size mold repair.

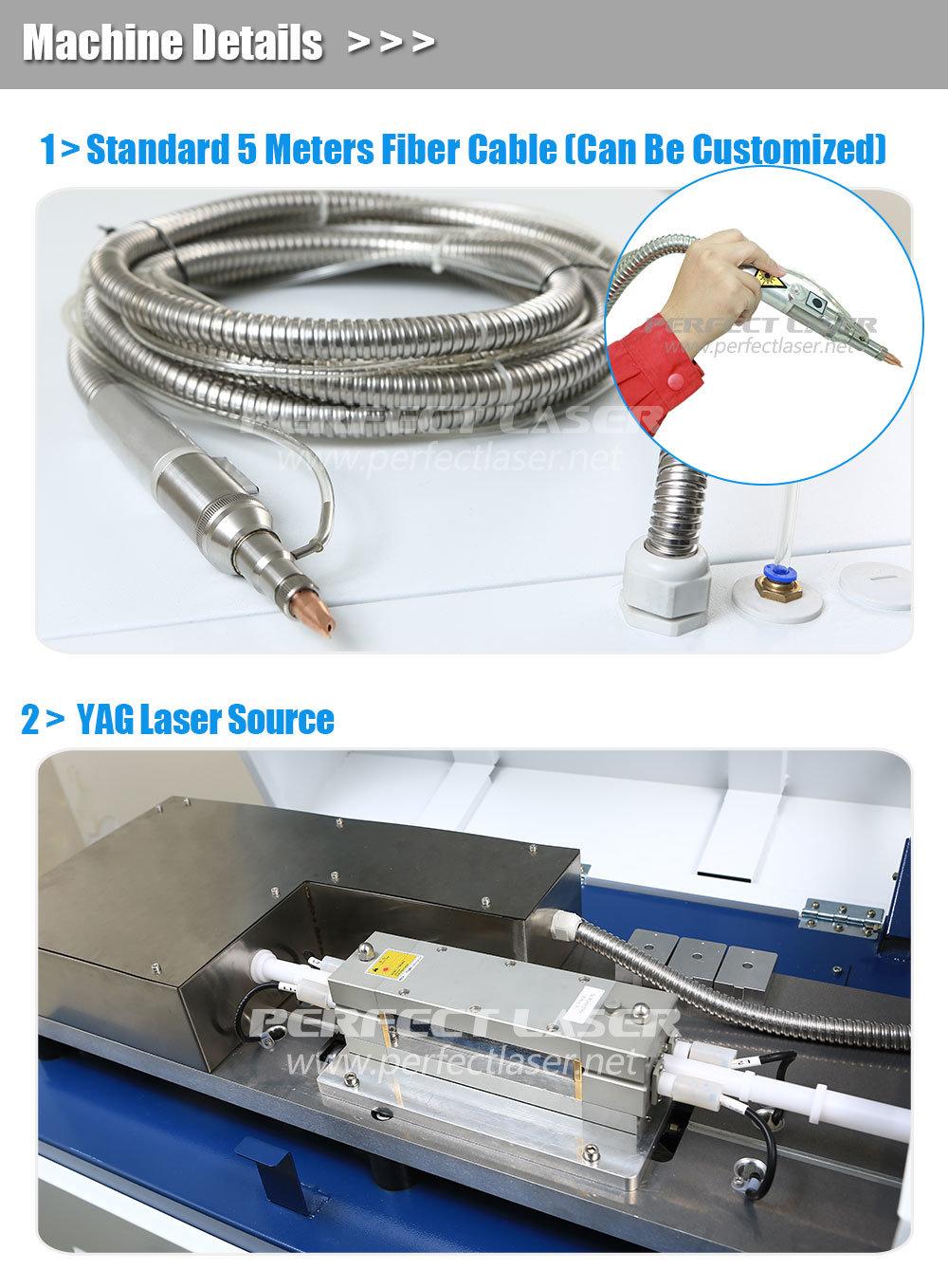

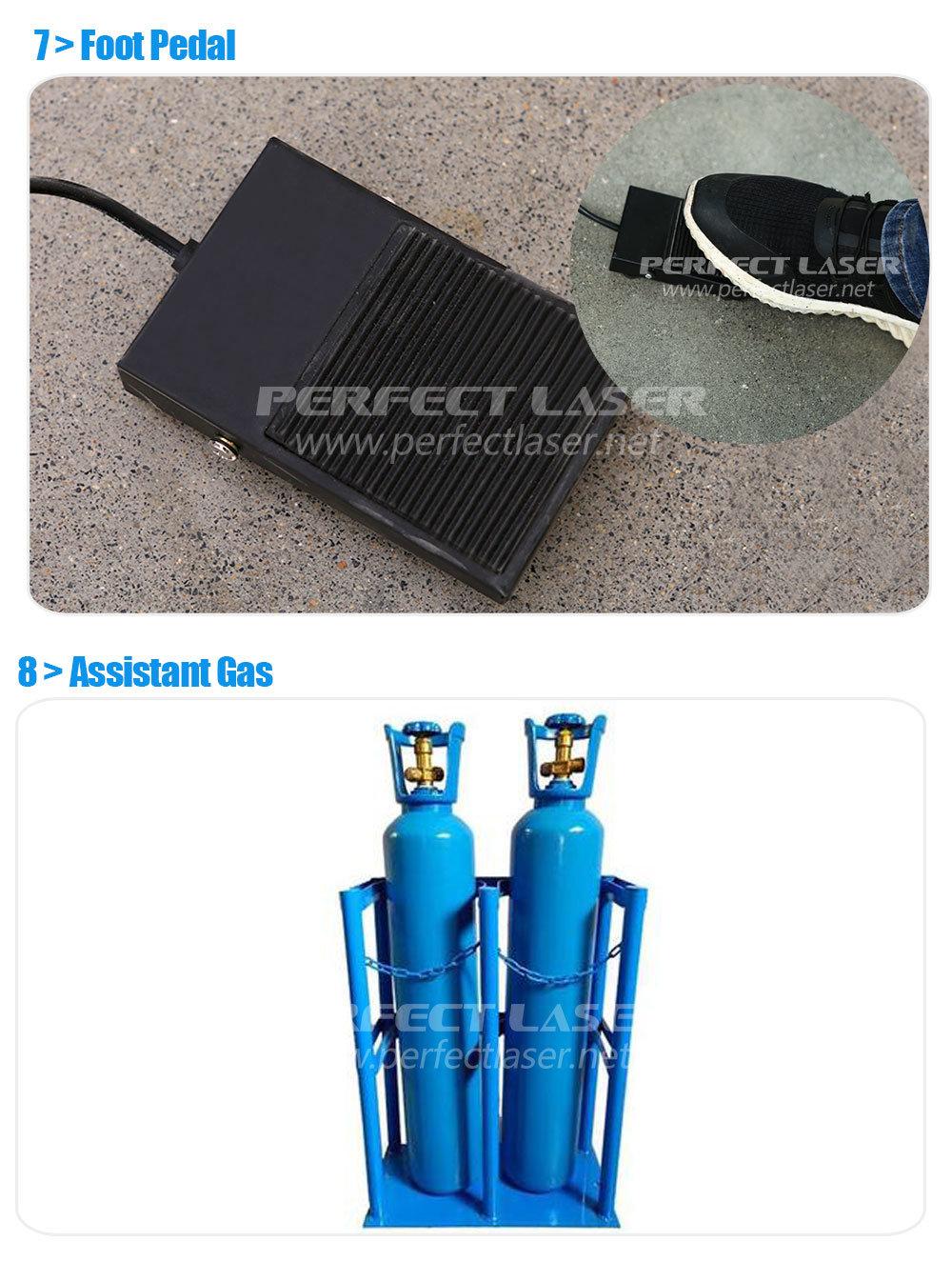

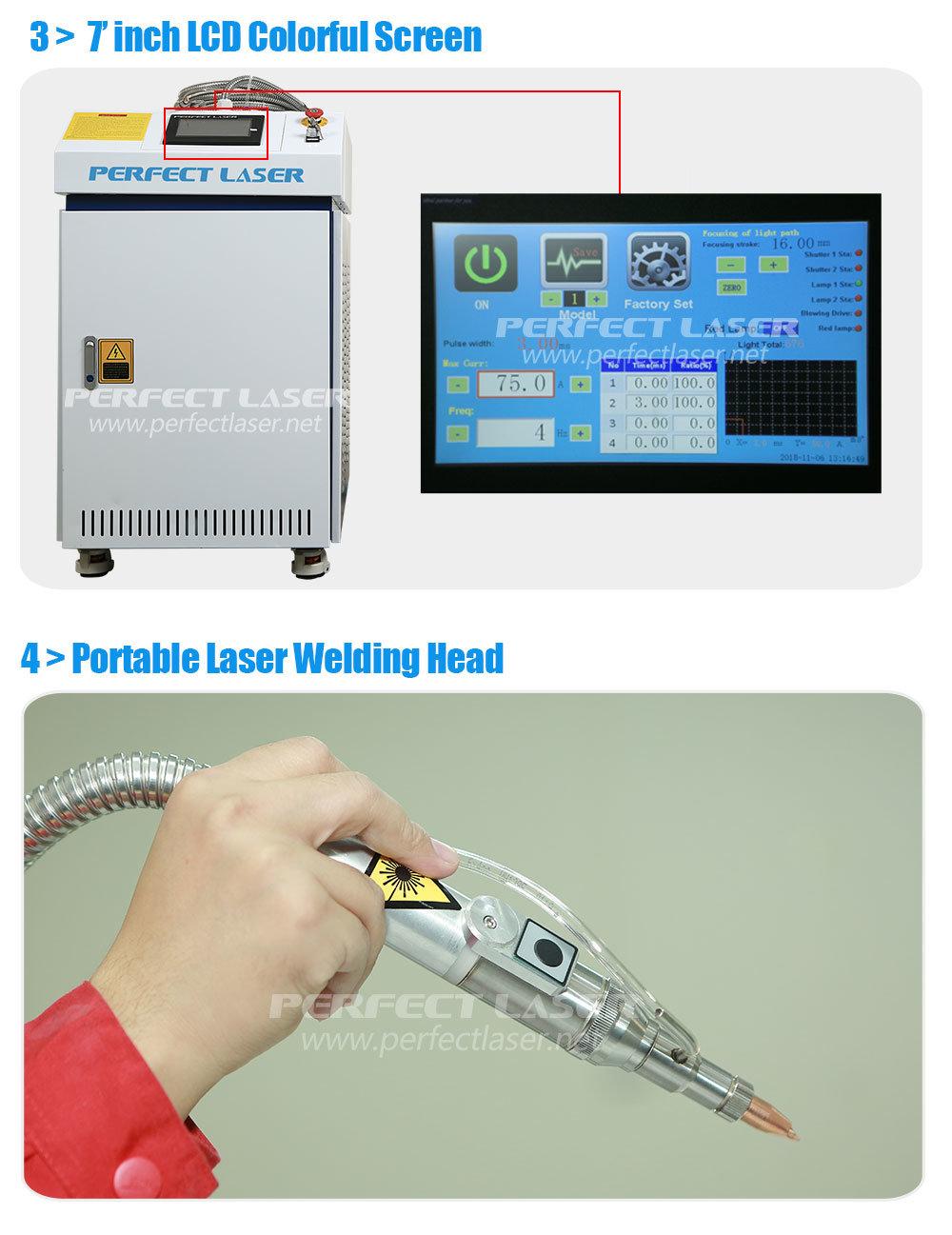

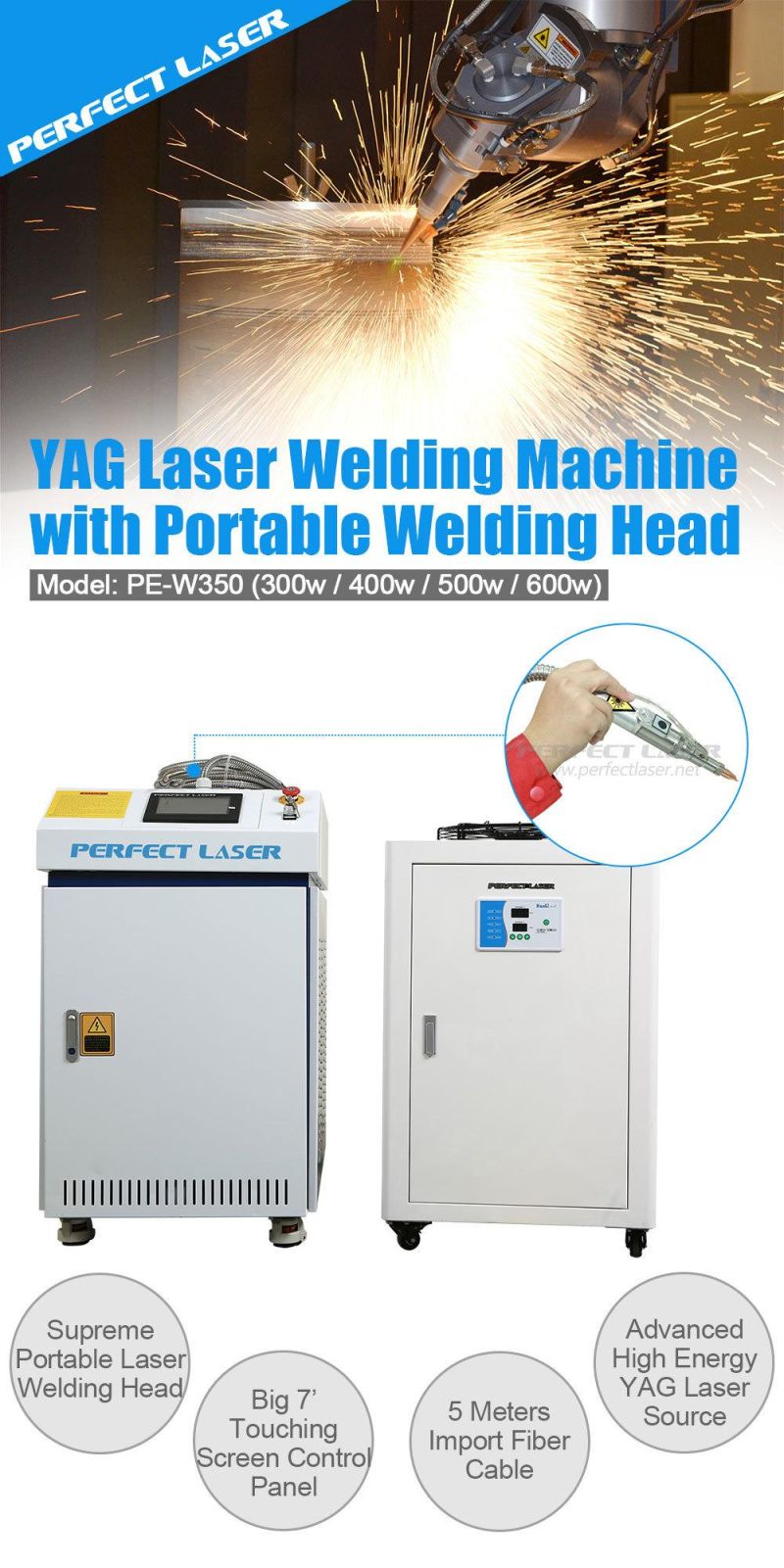

Machine Details of Welding Machine:



Technical Data of Welding Machine:

Type	PE-W350
Conduction type	Optical fiber transmission (lamp pumped)
Machine power supply	380V±10%/50Hz
Laser type	Nd:YAG pulse xenon lamp
spot size	0.2-3.0mm
Laser wavelength	1064nm
pulse width	≤15ms
laser power	300W 400W 500W 600W
Pulse frequency	≤50Hz
Laser output focal length	150mm
Laser cooling	water-cooling
Observation system	Standard CCD
Fiber length	5 meters (standard)
Power consumption of the whole machine	≤9KW
Equipment size	Main engine 1300*720*1240mm water machine 940*700*1150mm

 Our Company:We, Perfect Laser, as a 21 years history industrial manufacture in lase equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
