Basic Info.

Model NO. LSJ120/35 Customized Customized Condition New Main Extruder Screw 120mm L/D 35:1 Motor Power 185kw Sheet Thickness 4-30mm Sheet Width 2100mm Output >300kg/H Actual Installation Power 400kw Transport Package Wooden Pallet/Cases with Streching Films Specification LMSB-120/35 Trademark leader machinery Origin Qingdao, China HS Code 84772090 Production Capacity 50 Sets/Per Year

Product Description

PC Multiwall Hollow Plate/Sun Board Extrusion Line

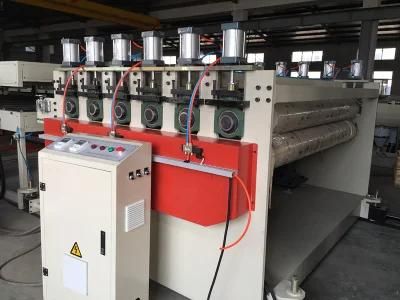

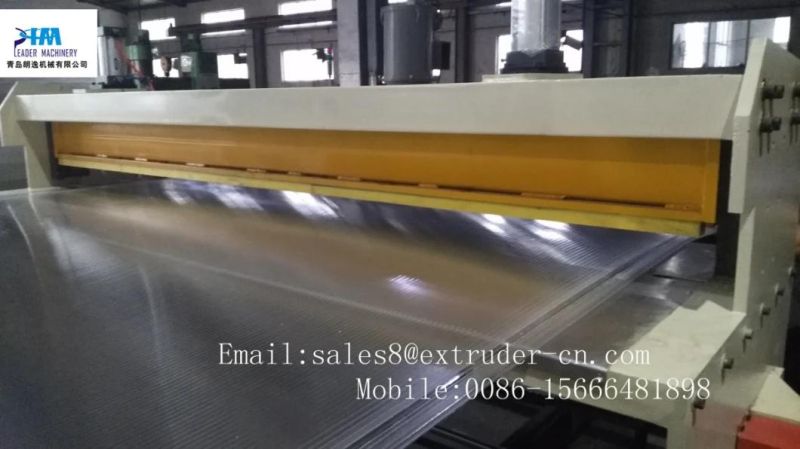

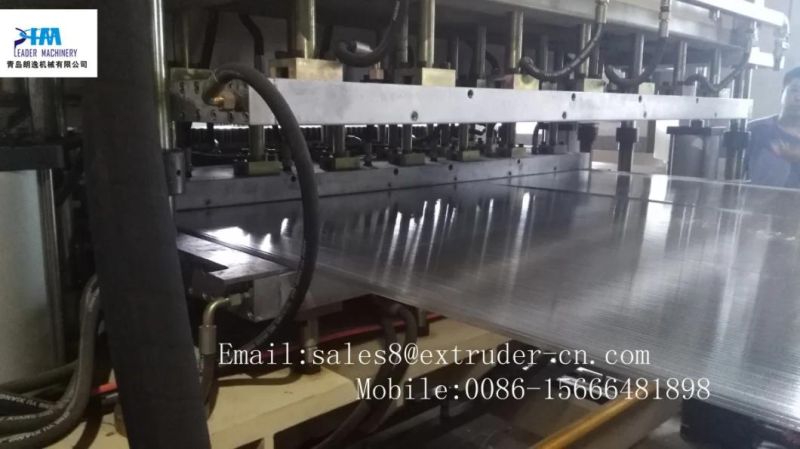

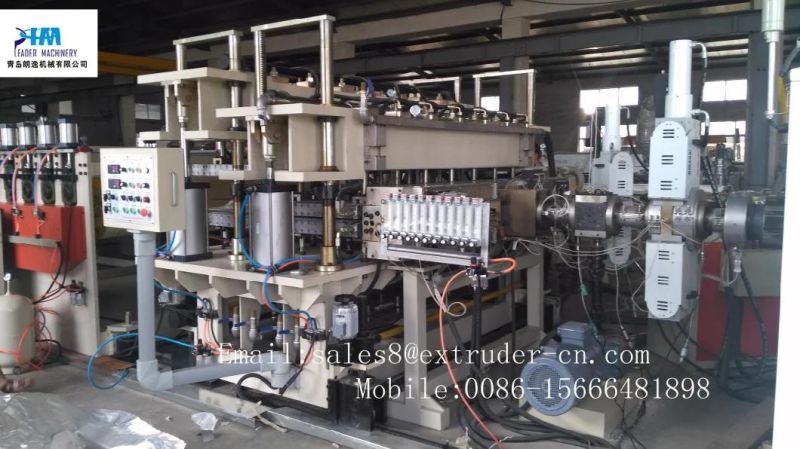

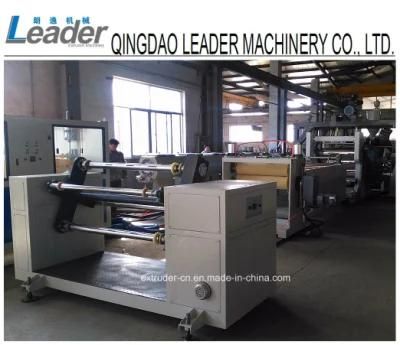

This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit,  vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and discharging table.

Feature:

The hollow corrugated sheet extrusion machine using high-speed energy-saving stable screw,yiled increased by more than 25% compared to similar products;special design calibrating device,each individual control;specific temperature control device,reduce heat shrinkage,simple operation.

Application:

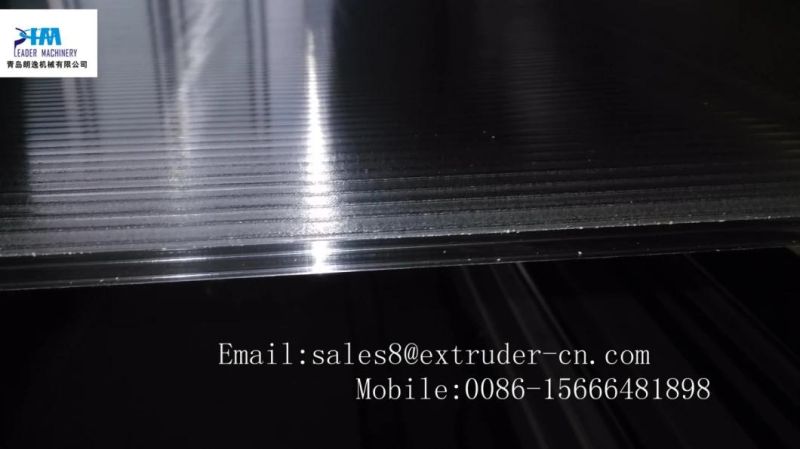

PC hollow sheet is light and high strength, moisture-proof, good environmental protection and re-fabrication performance and can be used into the reusable container, packing case, clapboard, backing plate and culet.
PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road.
